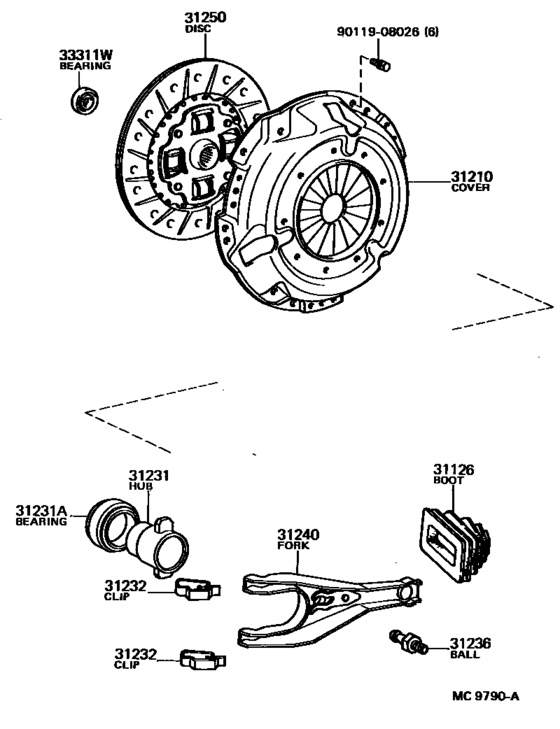

Clutch & Release Fork ([08.1983 - ] (8308- )KE74..MTM) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- KE74
- grade
- DX
- body
- V
- ENGINE
- 5KJ
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[08.1980 - 07.1987] CE7#,KE74,TE7#..MTM |
31126-20070 |
from US $13.81 |
||
|
31210
|
31210
31210-12100 Cover Assy, Clutch[08.1983 - 07.1987] KE74..MTM |
31210-12100 |
US $163.07 |
||
| replacement | |||||
|
31210
|
31210
31210-12182 Cover Assy, Clutch[08.1983 - 07.1987] KE74..MTM |
31210-12182 |
US $148.84 |
||
|
31231
|
31231
31231-12090
Hub, Clutch Release Bearing
[08.1983 - 07.1987] KE74..MTM |
31231-12090 |
— | ||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[12.1980 - 07.1987] CE7#,KE74,TE7#..MTM |
90363-40022 |
from US $41.80 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[03.1979 - 07.1987] CE7#,KE74,TE7#..MTM |
31232-22010 |
from US $0.82 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[08.1981 - 07.1987] CE7#,KE74,TE7#..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20080 Fork Sub-Assy, Clutch Release[08.1980 - 07.1987] KE74,TE7#..MTM |
31204-20080 |
from US $30.71 |
||
|
31250
|
31250
31250-12120 Disc Assy, Clutch[08.1983 - 06.1985] KE74..MTM |
31250-12120 |
US $138.32 |
||
| replacement | |||||
|
31250
|
31250
31250-12431
Disc Assy, Clutch
[08.1983 - 06.1985] KE74..MTM |
31250-12431 |
— | ||
|
31250
|
31250
31250-12121 Disc Assy, Clutch[06.1985 - 07.1987] KE74..MTM |
31250-12121 |
US $138.32 |
||
| replacement | |||||
|
31250
|
31250
31250-12431
Disc Assy, Clutch
[06.1985 - 07.1987] KE74..MTM |
31250-12431 |
— | ||
|
33311W
|
33311W
90363-12003 Bearing, Radial Ball(For Crankshaft)[10.1980 - 07.1987] AE70,KE7#,TE7#..MTM |
90363-12003 |
from US $10.56 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
