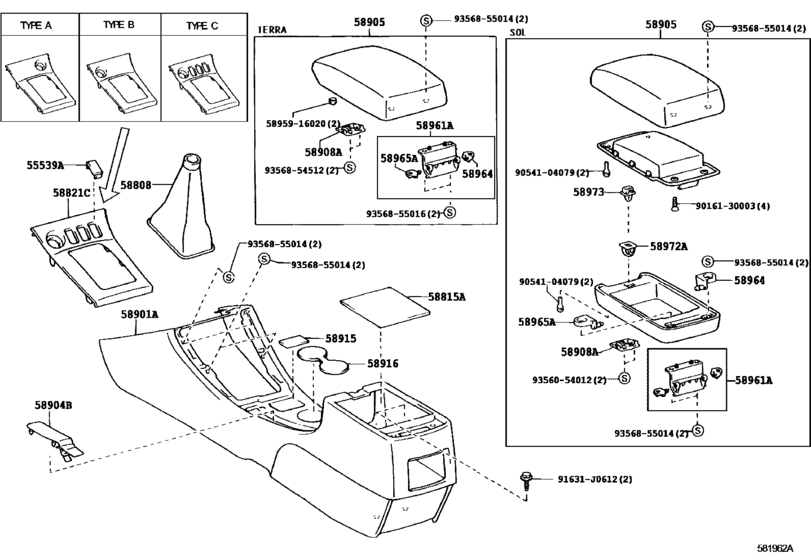

Console Box & Bracket ([05.2004 - ] (0405- )JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-32010-P3 Cover, Spare Switch Hole[05.2004 -] NDE120,ZZE12#..JPP..LHD DK.GRAY |
55539-32010-P3 |
US $5.94 |
||
|
58808
|
58808
58808-02080-B0
Cover Sub-Assy, Shifting Hole
[05.2004 -] NDE120,ZZE12#..JPP..5F DK.GRAY,TRIM1# |
58808-02080-B0 |
— | ||
|
58815A
|
58815A
58815-12060 Carpet, Console Box[05.2004 -] NDE120,ZZE12#..JPP |
58815-12060 |
US $2.04 |
||
|
58821C
|
58821C
58821-02140-B0
Panel, Console, Upper
[05.2004 -] NDE120,ZZE12#..JPP..LHD..TERRA TYPE B:REFER TO ILLUSTRATION,DARK GRAY,TRIM1# |
58821-02140-B0 |
— | ||
|
58821C
|
58821C
58821-02150-B0
Panel, Console, Upper
[05.2004 -] NDE120,ZZE12#..JPP..LHD..TERRA TYPE C:REFER TO ILLUSTRATION,DARK GRAY,TRIM1# |
58821-02150-B0 |
— | ||
|
58901A
|
58901A
58901-12481-B0 Box Sub-Assy, Console, RearCONSOLE, REAR [05.2004 -] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
58901-12481-B0 |
US $347.98 |
||
|
58904B
|
58904B
58904-12060-B1
Cover Sub-Assy, Parking Brake Hole
[05.2004 -] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
58904-12060-B1 |
— | ||
|
58905
|
58905
58905-12410-B5
Door Sub-Assy, Console Compartment
[05.2004 -] NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
58905-12410-B5 |
— | ||
|
58908A
|
58908A
58908-33030 Lock Sub-Assy, Console Compartment Door[05.2004 -] NDE120,ZZE12#..JPP |
58908-33030 |
from US $11.36 |
||
|
58915
|
58915
58915-02010-B0
Panel, Box Bottom
[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
58915-02010-B0 |
— | ||
|
58916
|
58916
58916-02050-B0
Mat, Box Bottom
[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
58916-02050-B0 |
— | ||
|
58961A
|
58961A
58907-12050 Hinge Sub-Assy, Console Compartment Door[05.2004 -] NDE120,ZZE12#..JPP |
58907-12050 |
from US $14.72 |
||
|
58964
|
58964
58964-20030 Stopper, Console Compartment Door, No.1CONSOLE COMPARTMENT DOOR, NO.1 [05.2004 - 10.2006] NDE120,ZZE12#..JPP..TERRA |
58964-20030 |
from US $2.38 |
||
|
58965A
|
58965A
58965-20040 Stopper, Console Compartment Door, No.2CONSOLE COMPARTMENT DOOR, NO.2 [05.2004 - 10.2006] NDE120,ZZE12#..JPP..TERRA |
58965-20040 |
from US $2.44 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
5895916020
|
5895916020
58959-16020 Cushion, Console Compartment Door |
58959-16020 |
US $3.35 |
||
|
9016130003
|
9016130003
90161-30003 SCREW COUNTERSUNK |
90161-30003 |
US $0.52 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.22 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
