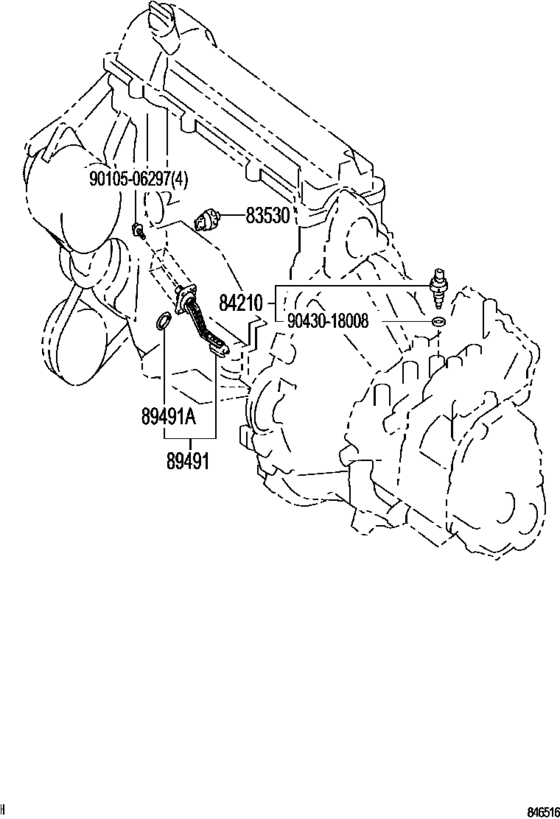

Switch & Relay & Computer ([08.2004 - ] ENGINE & TRANSMISSION (0408- )NDE120..JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[08.2004 -] NDE120..JPP DENSO |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[05.2004 -] NDE120,ZZE12#..JPP..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2004 -] NDE120,ZZE12#..JPP..5F |
84210-52050 |
from US $20.67 |
||
|
89491
|
89491
89491-12030
Sensor, Engine Oil Level
[08.2004 -] NDE120..JPP |
89491-12030 |
— | ||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[08.2004 -] NDE120..JPP |
89493-60010 |
from US $2.24 |
||
|
9010506297
|
9010506297
90105-06297 New Genuine Part |
90105-06297 |
US $0.96 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
