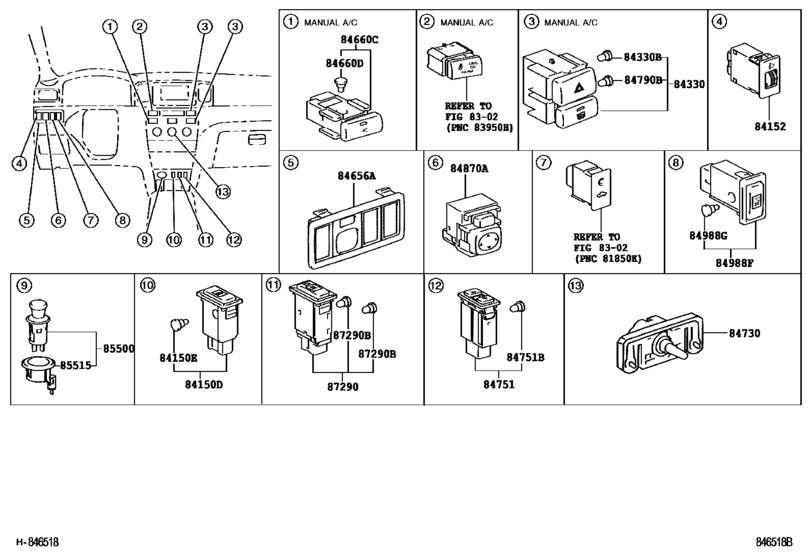

Switch & Relay & Computer ([05.2004 - ] INSTRUMENT PANEL (0405- )JPP..LHD) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-12030 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [05.2004 -] NDE120,ZZE12#..JPP..LHD |
84150-12030 |
US $57.51 |
||
| replacement | |||||
|
84150D
|
84150D
84150-26010
Switch Assy, Headlamp Cleaner
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
84150-26010 |
— | ||
|
84150E
|
84150E
84999-10320 Bulb, Satellite Switch[05.2004 -] NDE120,ZZE12#..JPP..LHD 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84152
|
84152
84152-02020
Switch, Headlamp Leveling
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
84152-02020 |
— | ||
| replacement | |||||
|
84152
|
84152
84152-02021
Switch, Headlamp Leveling
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
84152-02021 |
— | ||
|
84152
|
84152
84152-02021
Switch, Headlamp Leveling
[09.2004 -] NDE120,ZZE12#..JPP |
84152-02021 |
— | ||
|
84330
|
84330
84332-12480 Switch Assy, Hazard Warning Signal[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
84332-12480 |
US $77.17 |
||
| replacement | |||||
|
84330
|
84330
84332-12440 Switch Assy, Hazard Warning Signal[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
84332-12440 |
US $82.12 |
||
|
84330
|
84330
84332-12490 Switch Assy, Hazard Warning Signal[05.2004 -] NDE120,ZZE12#..JPP..TERRA COLD SPEC |
84332-12490 |
US $155.79 |
||
| replacement | |||||
|
84330
|
84330
84332-12460
Switch Assy, Hazard Warning Signal
[05.2004 -] NDE120,ZZE12#..JPP..TERRA COLD SPEC |
84332-12460 |
— | ||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[05.2004 -] NDE120,ZZE12#..JPP..TERRA 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84656A
|
84656A
84656-12120-B0 Bezel, SwitchSWITCH [05.2004 -] NDE120,ZZE12#..JPP..LHD..TERRA W/O(OUTER MIRROR SWITCH),DK.GRAY,TRIM1# |
84656-12120-B0 |
US $16.31 |
||
|
84656A
|
84656A
84656-12130-B0
Bezel, Switch
[05.2004 -] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
84656-12130-B0 |
— | ||
|
84660C
|
84660C
84660-02040
Switch, Cooler
[05.2004 -] NDE120,ZZE12#..JPP..TERRA DEALER OPTION |
84660-02040 |
— | ||
|
84660C
|
84660C
84660-12210 Switch, Cooler[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
84660-12210 |
US $77.17 |
||
|
84660D
|
84660D
90010-03059
Bulb(For Cooler Switch)
[05.2004 -] NDE120,ZZE12#..JPP..TERRA 14V 1.12W |
90010-03059 |
— | ||
|
84730
|
84730
84732-02040 Switch Assy, Heater BlowerHEATER BLOWER [05.2004 -] NDE120,ZZE12#..JPP..TERRA |
84732-02040 |
US $104.83 |
||
|
84751
|
84751
84751-12070 Switch, Seat HeaterSEAT HEATER [05.2004 -] NDE120,ZZE12#..JPP..LHD |
84751-12070 |
US $77.17 |
||
| replacement | |||||
|
84751
|
84751
84751-52040 Switch, Seat HeaterSEAT HEATER [05.2004 -] NDE120,ZZE12#..JPP..LHD |
84751-52040 |
US $77.17 |
||
|
84751B
|
84751B
90011-01002
Bulb, Seat Heater Switch
[05.2004 -] NDE120,ZZE12#..JPP..LHD 14V 0.91W |
90011-01002 |
— | ||
|
84790B
|
84790B
90010-01079 Bulb(For Rear Window Defogger Switch)[05.2004 -] NDE120,ZZE12#..JPP..TERRA 14V 0.06W |
90010-01079 |
US $6.99 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[05.2004 -] NDE120,ZZE12#..JPP |
84872-52030 |
US $53.29 |
||
|
84988F
|
84988F
84988-13010 Switch, Traction ControlTRACTION CONTROL [05.2004 -] NDE120,ZZE12#..JPP..LHD |
84988-13010 |
US $57.51 |
||
| replacement | |||||
|
84988F
|
84988F
84988-26010 Switch, Traction Control[05.2004 -] NDE120,ZZE12#..JPP..LHD |
84988-26010 |
US $57.51 |
||
|
84988G
|
84988G
84999-10320 Bulb, Satellite Switch[05.2004 -] NDE120,ZZE12#..JPP..LHD 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
85500
|
85500
85500-09010
Lighter Assy, Cigarette
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
85500-09010 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-09040
Lighter Assy, Cigarette
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
85500-09040 |
— | ||
|
85500
|
85500
85500-09040
Lighter Assy, Cigarette
[09.2004 -] NDE120,ZZE12#..JPP |
85500-09040 |
— | ||
|
85515
|
85515
85515-05010
Stay, Cigarette Lighter Bezel
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
85515-05010 |
— | ||
| replacement | |||||
|
85515
|
85515
85515-05011
Stay, Cigarette Lighter Bezel
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
85515-05011 |
— | ||
|
87290
|
87290
87290-12010 Switch Assy, HeaterHETER [08.2004 -] NDE120..JPP |
87290-12010 |
US $85.90 |
||
| replacement | |||||
|
87290
|
87290
87290-20020 Switch Assy, HeaterHETER [08.2004 -] NDE120..JPP |
87290-20020 |
US $85.90 |
||
|
87290B
|
87290B
84999-10310 Bulb, Air Conditioner Control[08.2004 -] NDE120..JPP 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
87290B
|
87290B
90010-01049 Bulb, Main Switch Assy[08.2004 -] NDE120..JPP 14V0.91W,YELLOW CAP |
90010-01049 |
US $5.42 |
||
