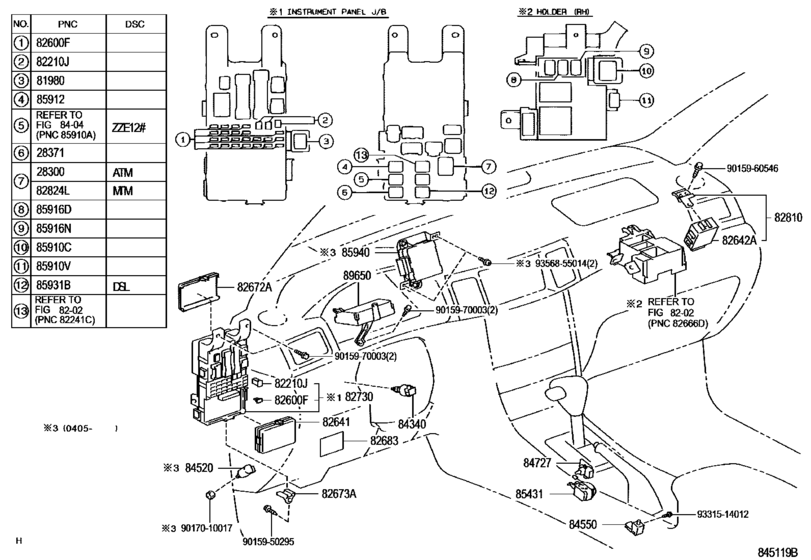

Switch & Relay & Computer ([09.2002 - ] COWL (0209- )JPP..LHD) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02020 Relay, Ignition, No.1[05.2004 -] 1NDTV,3ZZFE,4ZZFE..NDE120,ZZE12#..JPP |
90987-02020 |
from US $50.84 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[05.2004 -] NDE120,ZZE12#..JPP |
81980-50030 |
from US $52.51 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[08.2004 -] NDE120..JPP 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[05.2004 -] NDE120,ZZE12#..JPP 30A,TERMINAL:FEMALE,FOR INSTRUMENT PANEL J/B |
90982-08280 |
from US $3.92 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[05.2004 -] NDE120,ZZE12#..JPP 40A,TERMINAL:FEMALE,FOR INSTRUMENT PANEL J/B |
90982-08281 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[05.2004 -] NDE120,ZZE12#..JPP..LHD 30A,TERMINAL:FEMALE,FOR ENGINE ROOM R/B |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[05.2004 -] NDE120,ZZE12#..JPP 40A,TERMINAL:FEMALE,FOR ENGINE ROOM R/B |
90982-08284 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[05.2004 -] NDE120,ZZE12#..JPP 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[08.2004 -] NDE120..JPP 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[05.2004 -] NDE120,ZZE12#..JPP..LHD 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[05.2004 -] NDE120,ZZE12#..JPP 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[08.2004 -] NDE120..JPP 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[05.2004 -] NDE120,ZZE12#..JPP..LHD 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[08.2004 -] NDE120..JPP 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[08.2004 -] NDE120..JPP 5A,MINI FUSE |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[05.2004 -] NDE120,ZZE12#..JPP..LHD 25A,MINI FUSE |
90080-82033 |
— | ||
|
82641
|
82641
82641-12200 Relay, Integration No.1[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
82641-12200 |
US $122.30 |
||
| replacement | |||||
|
82641
|
82641
82641-12320 Relay, Integration No.1[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
82641-12320 |
from US $108.81 |
||
|
82641
|
82641
82641-13040 Relay, Integration No.1INTEGRATION W/DOOR CONTROL [05.2004 -] NDE120,ZZE12#..JPP W(KEY LESS ENTRY) |
82641-13040 |
US $179.09 |
||
|
82642A
|
82642A
82642-12050 Relay, Running LightRUNNING LIGHT [05.2004 -] NDE120,ZZE12#..JPP..LHD |
82642-12050 |
US $119.39 |
||
|
82672A
|
82672A
82672-02070
Cover, Junction Block
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
82672-02070 |
— | ||
|
82673A
|
82673A
82673-02010
Bracket, Junction Block
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
82673-02010 |
— | ||
|
82683
|
82683
82683-12260 Plate, Fuse Block CautionFUSE BLOCK CAUTION [05.2004 -] NDE120,ZZE12#..JPP..LHD |
82683-12260 |
US $3.79 |
||
|
82730
|
82730
82730-02040
Block Assy, Instrument Panel Junction
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
82730-02040 |
— | ||
|
82810
|
82810
82810-13060 Relay Assy, Running LightRUNNING LIGHT [05.2004 -] NDE120,ZZE12#..JPP..LHD |
82810-13060 |
US $209.66 |
||
|
82824L
|
82824L
82824-30140 Connector, Wiring HarnessSHORT [05.2004 -] NDE120,ZZE12#..JPP..5F |
82824-30140 |
US $28.25 |
||
|
84340
|
84340
84340-47020 Switch Assy, Stop Lamp[05.2004 -] NDE120,ZZE121..JPP |
84340-47020 |
from US $51.52 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[05.2004 -] NDE120..JPP;ZZE121..JPP..5F..SOL |
84520-42010 |
from US $34.13 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[05.2004 -] NDE120,ZZE12#..JPP..LHD |
84550-33010 |
from US $18.39 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[05.2004 -] NDE120,ZZE12#..JPP |
90987-04010 |
from US $42.71 |
||
|
85910V
|
85910V
90987-02020 Relay, Ignition, No.1[05.2004 -] NDE120,ZZE12#..JPP..LHD |
90987-02020 |
from US $50.84 |
||
|
85912
|
85912
90987-02020 Relay, Ignition, No.1[05.2004 -] NDE120,ZZE12#..JPP |
90987-02020 |
from US $50.84 |
||
|
85916D
|
85916D
90987-02020 Relay, Ignition, No.1[05.2004 - 09.2006] NDE120,ZZE12#..JPP |
90987-02020 |
from US $50.84 |
||
|
85916D
|
85916D
90987-02027 Relay[09.2006 -] NDE120,ZZE12#..JPP |
90987-02027 |
from US $44.54 |
||
|
85916N
|
85916N
90987-02020 Relay, Ignition, No.1[05.2004 - 09.2006] NDE120,ZZE12#..JPP..LHD |
90987-02020 |
from US $50.84 |
||
|
85916N
|
85916N
90987-02027 Relay[09.2006 -] NDE120,ZZE12#..JPP..LHD |
90987-02027 |
from US $44.54 |
||
|
85931B
|
85931B
90987-02020 Relay, Ignition, No.1[08.2004 -] NDE120..JPP |
90987-02020 |
from US $50.84 |
||
|
89650
|
89650
89650-02170
Computer Assy, Power Steering
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
89650-02170 |
— | ||
|
9015950295
|
9015950295
90159-50295 New Genuine Part |
90159-50295 |
US $1.60 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.80 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
