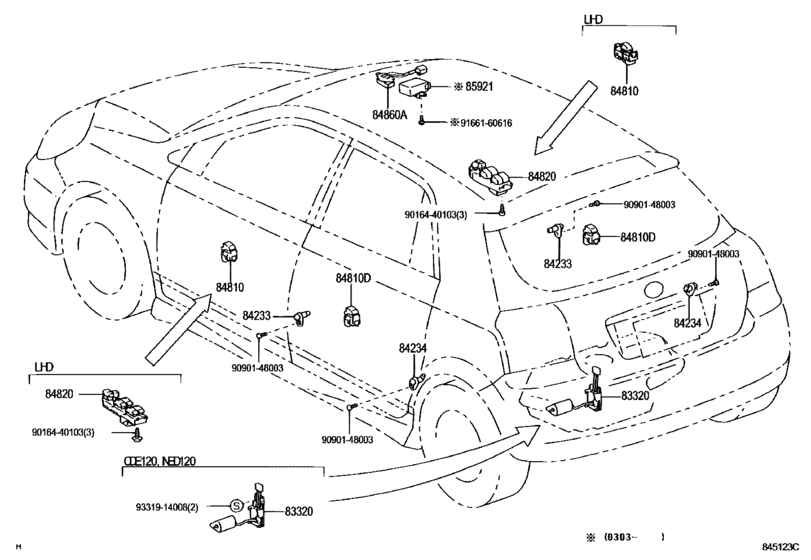

Switch & Relay & Computer ([09.2002 - ] DOOR,ROOF,FLOOR & LUGGAGE (0209- )JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-13180 Gage Assy, Fuel SenderFUEL SENDER [08.2004 -] NDE120..JPP |
83320-13180 |
US $58.39 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[05.2004 -] NDE120,ZZE12#..JPP |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[05.2004 -] NDE120,ZZE12#..JPP |
84231-53010 |
from US $10.56 |
||
|
84810
|
84810
84810-02041
Switch Assy, Power Window Regulator
[05.2004 -] NDE120,ZZE12#..JPP |
84810-02041 |
— | ||
|
84810D
|
84810D
84810-02041
Switch Assy, Power Window Regulator
[05.2004 -] NDE120,ZZE12#..JPP |
84810-02041 |
— | ||
|
84820
|
84820
84820-0F030
Master Switch Assy, Power Window Regulator
[05.2004 - 04.2006] NDE120,ZZE12#..JPP..LHD W(POWER WINDOW = FRONT & REAR) |
84820-0F030 |
— | ||
|
84820
|
84820
84820-0F040
Master Switch Assy, Power Window Regulator
[05.2004 - 04.2006] NDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY) |
84820-0F040 |
— | ||
|
84860A
|
84860A
84860-05020-B2
Switch Assy, Sliding Roof
[05.2004 -] NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
84860-05020-B2 |
— | ||
|
85921
|
85921
85921-12090
Relay, Sliding Roof Control
[05.2004 -] NDE120,ZZE12#..JPP |
85921-12090 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.72 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.80 |
