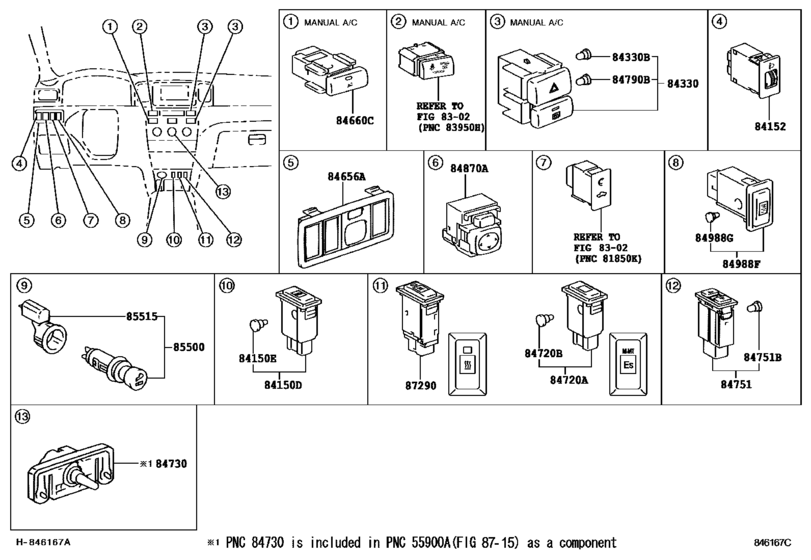

Switch & Relay & Computer ([06.2004 - ] INSTRUMENT PANEL (0406- )UKP..LHD) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-02021
Switch Assy, Headlamp Cleaner
[07.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
84150-02021 |
— | ||
|
84150E
|
84150E
90011-11042
Bulb, Headlamp Cleaner Switch
[07.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
90011-11042 |
— | ||
|
84152
|
84152
84152-02021
Switch, Headlamp Leveling
[07.2004 -] CDE120,NDE120,ZZE12#..UKP |
84152-02021 |
— | ||
|
84330
|
84330
84332-02081
Switch Assy, Hazard Warning Signal
[07.2004 -] CDE120,NDE120,ZZE12#..UKP..TERRA |
84332-02081 |
— | ||
|
84330
|
84330
84332-02091
Switch Assy, Hazard Warning Signal
[07.2004 - 05.2005] CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC |
84332-02091 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-02092
Switch Assy, Hazard Warning Signal
[07.2004 - 05.2005] CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC |
84332-02092 |
— | ||
|
84330
|
84330
84332-02092
Switch Assy, Hazard Warning Signal
[06.2005 -] CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC,TRW |
84332-02092 |
— | ||
|
84330
|
84330
84332-12490 Switch Assy, Hazard Warning Signal[06.2005 -] CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC,TOKAI RIKA |
84332-12490 |
US $155.79 |
||
| replacement | |||||
|
84330
|
84330
84332-12460
Switch Assy, Hazard Warning Signal
[06.2005 -] CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC,TOKAI RIKA |
84332-12460 |
— | ||
|
84330B
|
84330B
90011-11044 Bulb, Hazard Warning Signal SwitchHAZARD WARNING SIGNAL SWITCH [07.2004 -] CDE120,NDE120,ZZE12#..UKP..TERRA 14V 0.84W |
90011-11044 |
US $6.06 |
||
|
84656A
|
84656A
84656-02090-B0
Bezel, Switch
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
84656-02090-B0 |
— | ||
|
84656A
|
84656A
84656-02110-B0
Bezel, Switch
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD..TERRA DK.GRAY,TRIM1# |
84656-02110-B0 |
— | ||
|
84660C
|
84660C
84660-02040
Switch, Cooler
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..TERRA |
84660-02040 |
— | ||
|
84730
|
84730
84732-02040 Switch Assy, Heater BlowerHEATER BLOWER [06.2004 -] CDE120,NDE120,ZZE12#..UKP..TERRA |
84732-02040 |
US $104.83 |
||
|
84751
|
84751
84751-0F010
Switch, Seat Heater
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
84751-0F010 |
— | ||
|
84751B
|
84751B
90011-01002
Bulb, Seat Heater Switch
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD 14V 0.91W |
90011-01002 |
— | ||
|
84790B
|
84790B
90011-11045
Bulb(For Rear Window Defogger Switch)
[07.2004 -] CDE120,NDE120,ZZE12#..UKP..TERRA 14V 0.56W |
90011-11045 |
— | ||
|
84870A
|
84870A
84872-02050
Switch Assy, Outer Mirror, No.2
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
84872-02050 |
— | ||
|
84988F
|
84988F
84988-02010
Switch, Traction Control
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
84988-02010 |
— | ||
|
84988G
|
84988G
84999-10320 Bulb, Satellite Switch[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
85500
|
85500
85500-09040
Lighter Assy, Cigarette
[07.2004 -] CDE120,NDE120,ZZE12#..UKP |
85500-09040 |
— | ||
|
87290
|
87290
87290-02010
Switch Assy, Heater
[06.2004 -] CDE120,NDE120..UKP..LHD..5F |
87290-02010 |
— | ||
