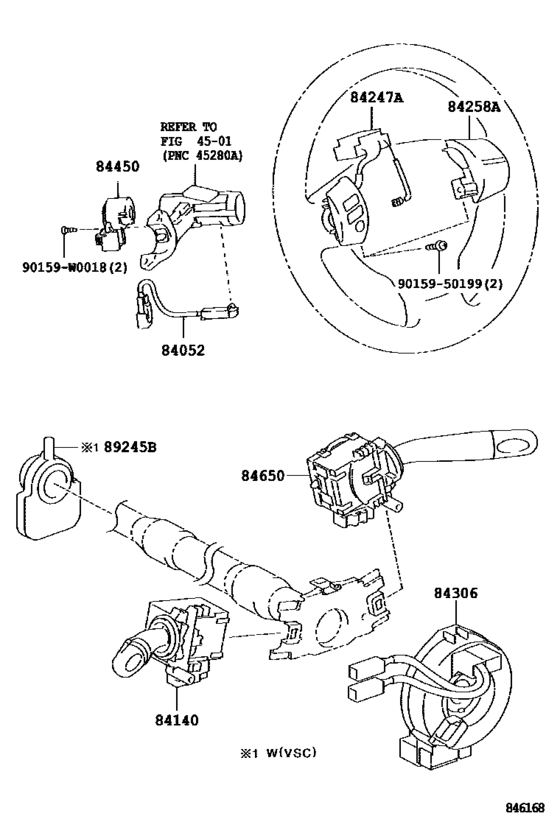

Switch & Relay & Computer ([06.2004 - ] IGNITION & COMBINATION SWITCH (0406- )UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-05020 Switch Assy, Un-Lock Warning[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
84052-05020 |
US $34.51 |
||
|
84140
|
84140
84140-02180
Switch Assy, Headlamp Dimmer
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
84140-02180 |
— | ||
|
84140
|
84140
84140-02190
Switch Assy, Headlamp Dimmer
[06.2004 -] CDE120,NDE120,ZZE12#..UKP W(FRONT FOG LAMP SW) |
84140-02190 |
— | ||
|
84247A
|
84247A
84247-12010-B0 Switch, Steering Pad, Lh[10.2005 -] CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
84247-12010-B0 |
US $110.66 |
||
| replacement | |||||
|
84247A
|
84247A
84247-52030
Switch, Steering Pad, Lh
[10.2005 -] CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
84247-52030 |
— | ||
|
84258A
|
84258A
84258-68020-B2 Cover, Steering Pad, Rh[10.2005 -] CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
84258-68020-B2 |
US $26.79 |
||
|
84306
|
84306
84306-02140
Cable Sub-Assy, Spiral
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
84306-02140 |
— | ||
|
84450
|
84450
84450-0D010
Switch Assy, Ignition Or Starter
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
84450-0D010 |
— | ||
|
84650
|
84650
84652-02290
Switch Assy, Windshield Wiper
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..WG..TERRA |
84652-02290 |
— | ||
|
89245B
|
89245B
89245-02020 Sensor, Steering[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
89245-02020 |
US $304.01 |
||
|
90159W0018
|
90159W0018
90159-W0018
New Genuine Part
|
90159-W0018 |
— | ||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.80 |
||
