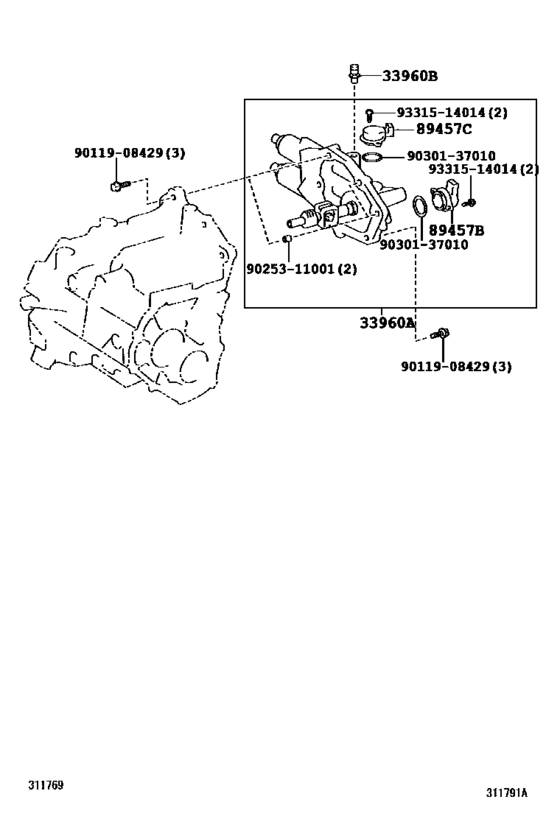

Pump & Actuator, Sequential Or Multi-Mode Manual Transaxle ([11.2006 - 12.2008] (0611-0812)5FS) Diagram Toyota COROLLA
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- NDE150
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 12.2008
- Gear Shift Type
- 5FS
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33960A
|
33960A
33960-12010
Actuator Assy, Shift & Select
[11.2006 - 12.2008] NDE150,ZRE151..5FS |
33960-12010 |
— | ||
| replacement | |||||
|
33960A
|
33960A
33960-12051 Actuator Assy, Sequential Transmission[11.2006 - 12.2008] NDE150,ZRE151..5FS |
33960-12051 |
US $1,209.60 |
||
|
33960B
|
33960B
90930-03133 Plug, Breather[11.2006 - 12.2008] NDE150,ZRE151..5FS |
90930-03133 |
from US $5.92 |
||
|
89457B
|
89457B
89457-52010 Stroke Sensor, Clutch[11.2006 - 12.2008] NDE150,ZRE151..5FS |
89457-52010 |
US $139.12 |
||
|
89457C
|
89457C
89457-12020
Stroke Sensor, Select
[11.2006 - 12.2008] NDE150,ZRE151..5FS |
89457-12020 |
— | ||
| replacement | |||||
|
89457C
|
89457C
89457-12021
Stroke Sensor, Select
[11.2006 - 12.2008] NDE150,ZRE151..5FS |
89457-12021 |
— | ||
|
9011908429
|
9011908429
90119-08429 Bolt, W/washer(For Transmission Case Cover) |
90119-08429 |
US $1.76 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $1.92 |
||
|
9030137010
|
9030137010
90301-37010 Ring, O(For Clutch Actuator Accumulator)O(FOR CLUTCH ACTUATOR ACCUMULATOR) |
90301-37010 |
US $2.18 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
