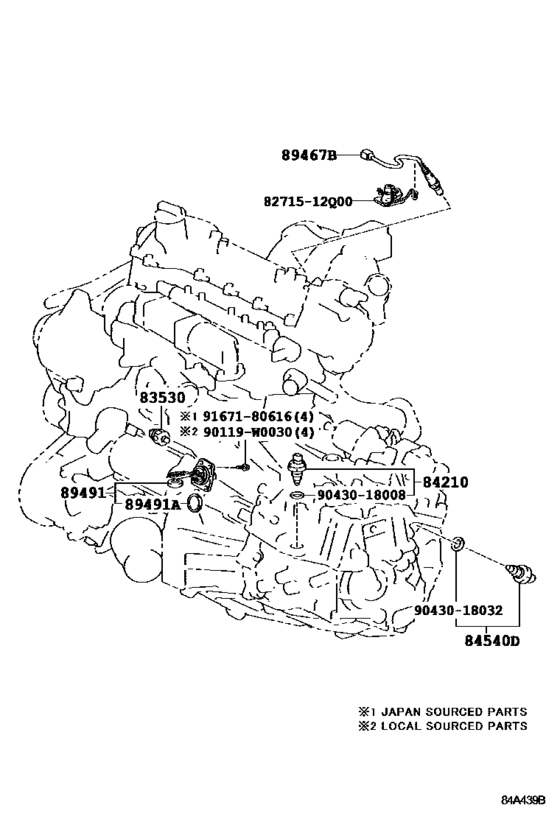

Switch & Relay & Computer ([02.2009 - 06.2013] ENGINE & TRANSMISSION (0902-1306)NDE150) Diagram Toyota COROLLA
- Year
- 2009 - 2013
- Sales region
- General
- Frame
- NDE150
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- To
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[02.2009 - 06.2010] ADE150,NDE150 DENSO |
83530-28010 |
US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[02.2009 - 06.2010] ADE150,NDE150 DENSO |
83530-60010 |
from US $27.12 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[02.2009 - 06.2010] ADE150,NDE150 YAZAKI |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15#..MTM |
84210-52050 |
from US $20.67 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2012 - 04.2014] NDE150,NRE150,ZRE151,152..6F |
84210-52050 |
from US $20.67 |
||
|
89467B
|
89467B
89467-02080
Sensor, Air Fuel Ratio
[07.2011 - 06.2013] NDE150..6F (L) |
89467-02080 |
— | ||
|
89467B
|
89467B
89467-0D020
Sensor, Air Fuel Ratio
[08.2010 - 06.2011] NDE150 (L) |
89467-0D020 |
— | ||
| replacement | |||||
|
89467B
|
89467B
89467-02080
Sensor, Air Fuel Ratio
[08.2010 - 06.2011] NDE150 (L) |
89467-02080 |
— | ||
|
89467B
|
89467B
89467-12130 Sensor, Air Fuel Ratio[07.2011 - 06.2013] NDE150..6F (J) |
89467-12130 |
US $147.06 |
||
|
89467B
|
89467B
89467-12170 Sensor, Air Fuel RatioAIR FUEL RATIO [02.2009 - 06.2010] NDE150 |
89467-12170 |
US $174.72 |
||
| replacement | |||||
|
89467B
|
89467B
89467-12130 Sensor, Air Fuel Ratio[02.2009 - 06.2010] NDE150 |
89467-12130 |
US $147.06 |
||
|
89491
|
89491
89491-52030
Sensor, Engine Oil Level
[02.2009 - 06.2010] NDE150 |
89491-52030 |
— | ||
| replacement | |||||
|
89491
|
89491
89491-52031
Sensor, Engine Oil Level
[02.2009 - 06.2010] NDE150 |
89491-52031 |
— | ||
|
89491
|
89491
89491-52031
Sensor, Engine Oil Level
[12.2011 - 06.2013] NDE150..6F *132 |
89491-52031 |
— | ||
|
89491A
|
89491A
90430-36005 Gasket, Engine Oil Level Sensor[02.2009 - 06.2010] NDE150 |
90430-36005 |
US $1.54 |
||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— | ||
|
8271512Q00
|
8271512Q00
82715-12Q00 Bracket,wiring Harness Clamp |
82715-12Q00 |
US $12.08 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9043018032
|
9043018032
90430-18032 New Genuine Part |
90430-18032 |
US $1.44 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.66 |
||
