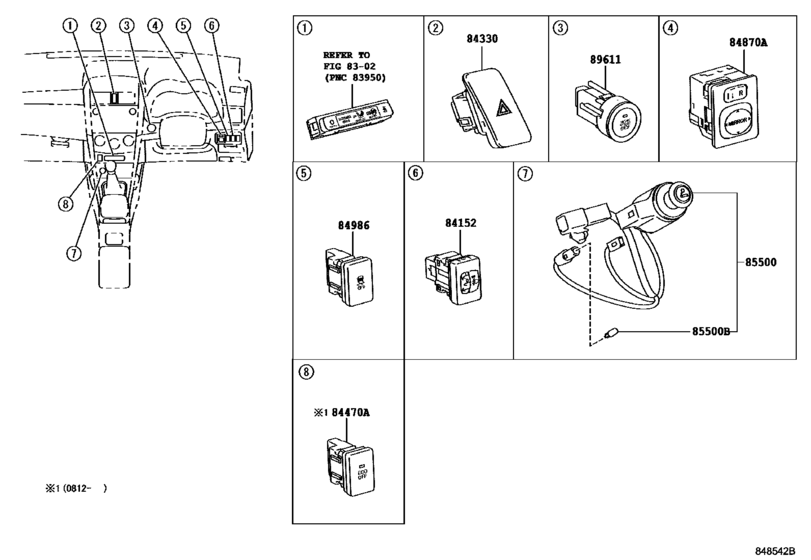

Switch & Relay & Computer ([11.2006 - ] INSTRUMENT PANEL (0611- )RHD) Diagram Toyota COROLLA
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 12.2008
- To
- 02.2010
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-12070 Switch, Headlamp Leveling[12.2008 - 02.2010] ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM; ADE150,ZRE151..LHD..N..(DCRL,HTWVM) HEADLAMP-DISCHARGE |
84152-12070 |
from US $50.38 |
||
| replacement | |||||
|
84152
|
84152
84152-12071 Switch, Headlamp Leveling[12.2008 - 02.2010] ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM; ADE150,ZRE151..LHD..N..(DCRL,HTWVM) HEADLAMP-DISCHARGE |
84152-12071 |
US $58.88 |
||
|
84330
|
84330
84332-12520 Switch Assy, Hazard Warning Signal[12.2008 - 02.2010] ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
84332-12520 |
US $39.75 |
||
| replacement | |||||
|
84330
|
84330
84332-12521 Switch Assy, Hazard Warning Signal[12.2008 - 02.2010] ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
84332-12521 |
US $39.75 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[12.2008 - 02.2010] ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
84870-34010 |
from US $57.15 |
||
|
85500
|
85500
85500-12260 Lighter Assy, Cigarette[12.2008 - 04.2010] NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
85500-12260 |
from US $46.84 |
||
|
85500B
|
85500B
90010-01163 Bulb, Cigarette Lighter[12.2008 - 04.2010] NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM 12V 1.2W,W(CAP) |
90010-01163 |
US $5.82 |
||
