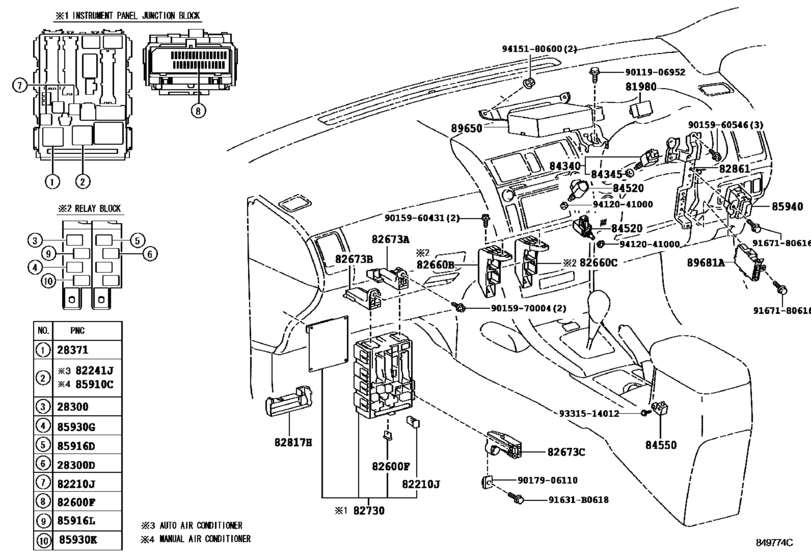

Switch & Relay & Computer ([02.2008 - ] COWL (0802- )RHD) Diagram Toyota COROLLA
- Year
- 2009 - 2013
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- To
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[02.2009 - 07.2010] 1NDTV..NDE150..DCRL |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[02.2009 - 07.2010] 1NDTV..NDE150..DCRL |
28300-21020 |
from US $40.58 |
||
|
28371
|
28371
90987-T2009
Relay, Ignition, No.1
[02.2009 - 07.2010] 1NDTV..NDE150..DCRL |
90987-T2009 |
— | ||
|
81980
|
81980
81980-0D050
Flasher Assy, Turn Signal
[12.2009 - 07.2010] NDE150..DCRL |
81980-0D050 |
— | ||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[02.2009 - 11.2009] NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
81980-46010 |
from US $54.52 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[02.2009 - 07.2010] NDE150,NRE150,ZRE151 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[02.2009 - 07.2010] NDE150,NRE150,ZRE151 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[02.2009 - 07.2010] NDE150,NRE150,ZRE151 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[02.2009 - 07.2010] ADE150,NDE150,NRE150,ZRE151 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[02.2009 - 07.2010] ADE150,NDE150,NRE150,ZRE151 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[02.2009 - 07.2010] ADE150,NDE150,NRE150,ZRE151 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[02.2009 - 07.2010] ADE150,NDE150,NRE150,ZRE151 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[02.2009 - 07.2010] ADE150,NDE150,NRE150,ZRE151 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[02.2009 - 07.2010] ADE150,NDE150,NRE150,ZRE151 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82660B
|
82660B
82755-12010 Block Assy, Relay[02.2009 - 07.2010] NDE150..D;ADE150..DCRL;ZRE151..4FC,6FS;NRE150,ZRE151..RHD;ZRE151..LHD..6F..N;NDE15 0,NRE150..LHD..N |
82755-12010 |
from US $13.54 |
||
|
82660C
|
82660C
82755-12020 Block Assy, Relay[02.2009 - 07.2010] NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
82755-12020 |
from US $13.54 |
||
|
82673A
|
82673A
82673-12200 Bracket, Junction Block[02.2009 - 07.2010] NDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM) |
82673-12200 |
US $11.07 |
||
|
82673B
|
82673B
82673-12210 Bracket, Junction Block[02.2009 - 07.2010] NDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM) |
82673-12210 |
US $9.90 |
||
|
82673C
|
82673C
82673-12230 Bracket, Junction Block[02.2009 - 07.2010] NDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM) |
82673-12230 |
US $9.46 |
||
|
82730
|
82730
82730-02A40
Block Assy, Instrument Panel Junction
[02.2009 - 07.2010] NDE150..RHD..DCRL WIRELESS DOOR LOCK-WITHOUT |
82730-02A40 |
— | ||
|
82730
|
82730
82730-02A50
Block Assy, Instrument Panel Junction
[02.2009 - 07.2010] NDE150..RHD..DCRL; NDE150..RHD..DCRL WIRELESS DOOR LOCK-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH; NDE150..RHD..DCRL DAYTIME RUNNING LIGHT SYSTEM-WITH |
82730-02A50 |
— | ||
|
82730
|
82730
82730-02P30
Block Assy, Instrument Panel Junction
[06.2010 - 06.2013] NDE150,NRE150,ZRE151..RHD..D WIRELESS DOOR LOCK-WITHOUT |
82730-02P30 |
— | ||
|
82730
|
82730
82730-02P40
Block Assy, Instrument Panel Junction
[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151..RHD |
82730-02P40 |
— | ||
|
82817H
|
82817H
82817-02450 Protector, Wiring HarnessWIRING HARNESS [02.2009 - 07.2010] NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM ENGINE ROOM R/B |
82817-02450 |
US $9.32 |
||
|
82817H
|
82817H
82817-12B50 Protector, Wiring Harness[02.2009 - 07.2010] NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM INSTRUMENT PANEL J/B |
82817-12B50 |
US $6.26 |
||
|
82861
|
82861
82861-02020
Bracket, Computer Integration, No.1
[02.2009 - 07.2010] NDE150..RHD..DCRL |
82861-02020 |
— | ||
|
84340
|
84340
84340-09040
Switch Assy, Stop Lamp
[02.2009 - 07.2010] NDE150..DCRL |
84340-09040 |
— | ||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[02.2009 - 07.2010] NDE150..DCRL |
84345-51010 |
from US $3.49 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[02.2009 - 07.2010] NDE150..D;NDE150..LHD..6F..N;ADE150,NRE150,ZRE151..6F..(DCRL,HTWC,HTWVM) |
84520-42010 |
from US $34.13 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[02.2009 - 07.2010] NDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM) |
84550-16060 |
from US $17.48 |
||
|
85910C
|
85910C
90987-T2003
Relay Assy (For Heater Blower Motor)
[02.2009 - 07.2010] NDE150..DCRL; NDE150..N..DCRL COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER; NDE150..6FS..DCRL ADDITIONAL HEATER-STOVE HEATER&AIR CONDITIONER-AUTO AIR CONDITIONER |
90987-T2003 |
— | ||
|
85916D
|
85916D
90080-87021
Relay, Lamp Cut
[11.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151 FRONT FOG LAMP-WITH |
90080-87021 |
— | ||
|
85916D
|
85916D
90080-87027
Relay, Lamp Cut
[02.2009 - 07.2010] NDE150..DCRL FRONT FOG LAMP-WITH |
90080-87027 |
— | ||
| replacement | |||||
|
85916D
|
85916D
90080-87021
Relay, Lamp Cut
[02.2009 - 07.2010] NDE150..DCRL FRONT FOG LAMP-WITH |
90080-87021 |
— | ||
|
85916L
|
85916L
90080-87021
Relay, Lamp Cut
[11.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
90080-87021 |
— | ||
|
85916L
|
85916L
90080-87027
Relay, Lamp Cut
[02.2009 - 07.2010] NDE150..DCRL |
90080-87027 |
— | ||
| replacement | |||||
|
85916L
|
85916L
90080-87021
Relay, Lamp Cut
[02.2009 - 07.2010] NDE150..DCRL |
90080-87021 |
— | ||
|
85930G
|
85930G
90080-87021
Relay, Lamp Cut
[11.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
90080-87021 |
— | ||
|
85930G
|
85930G
90080-87027
Relay, Lamp Cut
[02.2009 - 07.2010] NDE150..DCRL |
90080-87027 |
— | ||
| replacement | |||||
|
85930G
|
85930G
90080-87021
Relay, Lamp Cut
[02.2009 - 07.2010] NDE150..DCRL |
90080-87021 |
— | ||
|
89650
|
89650
89650-02500
Computer Assy, Power Steering
[02.2009 - 07.2010] NDE150..RHD..DCRL |
89650-02500 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-02501
Computer Assy, Power Steering
[02.2009 - 07.2010] NDE150..RHD..DCRL |
89650-02501 |
— | ||
|
89650
|
89650
89650-02520
Computer Assy, Power Steering
[02.2009 - 07.2010] NDE150..RHD..DCRL ROUGH ROAD AREA SPEC |
89650-02520 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-02521
Computer Assy, Power Steering
[02.2009 - 07.2010] NDE150..RHD..DCRL ROUGH ROAD AREA SPEC |
89650-02521 |
— | ||
|
89650
|
89650
89650-02580
Computer Assy, Power Steering
[06.2010 - 03.2011] ADE150,NDE150,NRE150,ZRE151..RHD |
89650-02580 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-02581
Computer Assy, Power Steering
[06.2010 - 03.2011] ADE150,NDE150,NRE150,ZRE151..RHD |
89650-02581 |
— | ||
|
89650
|
89650
89650-02581
Computer Assy, Power Steering
[04.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151..RHD |
89650-02581 |
— | ||
|
89681A
|
89681A
89690-02010
Computer, Power Management Control
[02.2009 - 07.2010] NDE150..RHD..DCRL |
89690-02010 |
— | ||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.82 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
