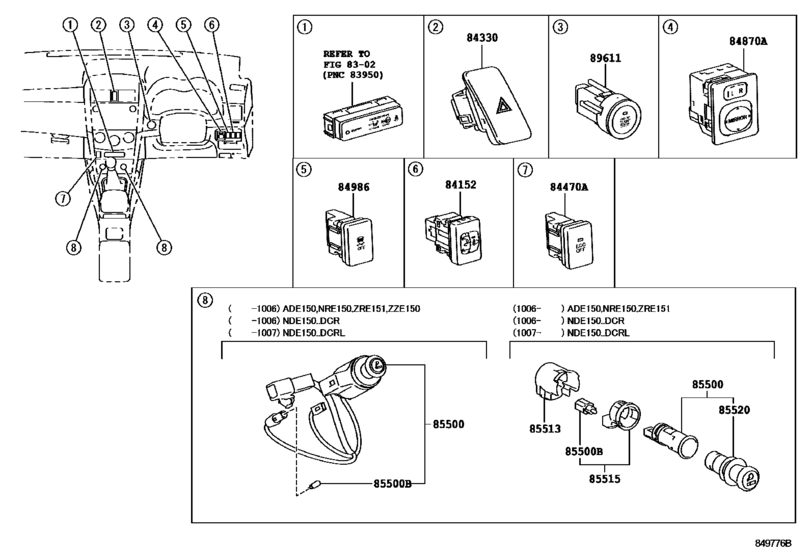

Switch & Relay & Computer ([02.2008 - ] INSTRUMENT PANEL (0802- )RHD) Diagram Toyota COROLLA
- Year
- 2009 - 2013
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- To
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-02040
Switch, Headlamp Leveling
[02.2009 - 07.2010] NDE150..DCRL |
84152-02040 |
— | ||
|
84330
|
84330
84332-02150
Switch Assy, Hazard Warning Signal
[02.2009 - 07.2010] NDE150..DCRL |
84332-02150 |
— | ||
|
84870A
|
84870A
84870-28020 Switch Assy, Outer Mirror[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151..N; NDE150,NRE150,ZRE151..D OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED); NDE150,NRE150,ZRE151..D OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
84870-28020 |
from US $66.27 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[02.2009 - 07.2010] NDE150..DCRL |
84870-34010 |
from US $57.15 |
||
|
85500
|
85500
85500-20340 Lighter Assy, Cigarette[02.2009 - 07.2010] NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
85500-20340 |
from US $45.65 |
||
|
85500
|
85500
85500-28080 Lighter Assy, Cigarette[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
85500-28080 |
US $38.30 |
||
|
85500B
|
85500B
90010-01030 Bulb, Key Cylinder Lamp[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151 14V1.4W,W(ORANGE CAP) |
90010-01030 |
from US $2.71 |
||
|
85500B
|
85500B
90010-01163 Bulb, Cigarette Lighter[02.2009 - 07.2010] NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM 12V 1.2W,W(CAP) |
90010-01163 |
US $5.82 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
85513-28010 |
from US $2.57 |
||
|
85515
|
85515
85515-22040 Stay, Cigarette Lighter Bezel[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
85515-22040 |
from US $11.52 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
85520-28010 |
from US $17.90 |
