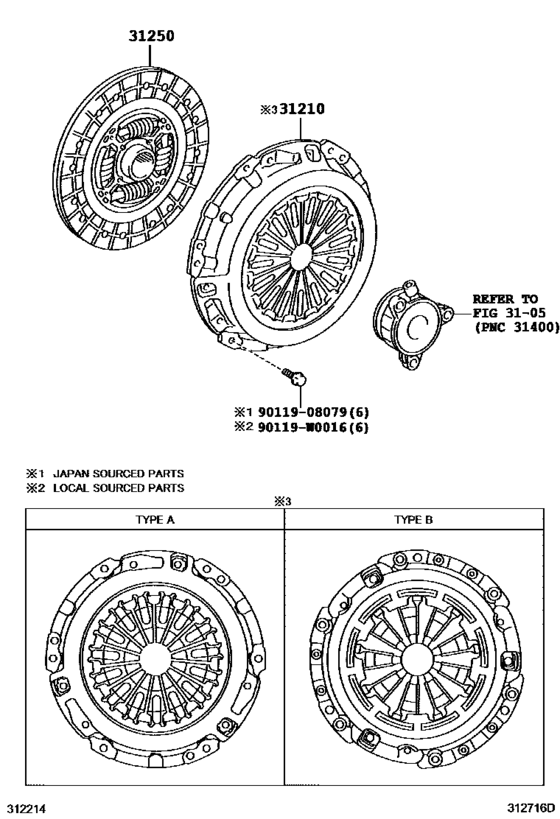

Clutch & Release Fork ([06.2013 - ] (1306- )NDE180) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31210
|
31210
31210-02350
Cover Assy, Clutch
[05.2015 - 05.2016] NDE180..6F TYPE B:REFER ILLUST. |
31210-02350 |
— | ||
|
31210
|
31210
31210-52100 Cover Assy, ClutchCLUTCH [06.2013 - 05.2015] NDE180..6F TYPE A:REFER ILLUST. |
31210-52100 |
from US $156.14 |
||
|
31250
|
31250
31250-02310
Disc Assy, Clutch
[05.2015 - 05.2016] NDE180..6F PNC 31210=TYPE B |
31250-02310 |
— | ||
|
31250
|
31250
31250-52131 Disc Assy, Clutch[06.2013 - 05.2015] NDE180..6F PNC 31210=TYPE A |
31250-52131 |
US $224.22 |
||
|
90119W0016
|
90119W0016
90119-W0016
Bolt (For Transmission Control Cable Bracket)
|
90119-W0016 |
— | ||
| replacement | |||||
|
90119W0016
|
90119W0016
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
