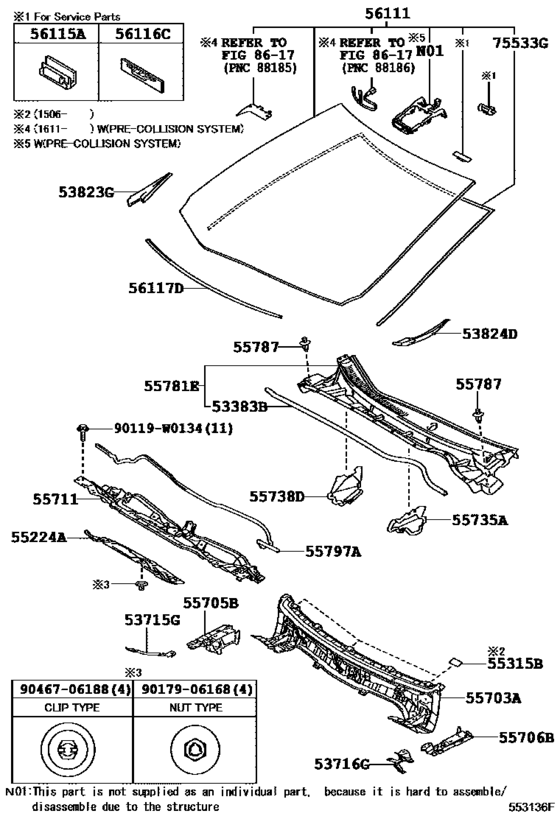

Cowl Panel & Windshield Glass ([06.2013 - ] (1306- )LHD) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-02200
Seal, Hood To Cowl Top
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
53383-02200 |
— | ||
|
53715G
|
53715G
53715-02030
Extension, Front Fender Apron, Rear Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
53715-02030 |
— | ||
|
53716G
|
53716G
53716-02040
Extension, Front Fender Apron, Rear Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
53716-02040 |
— | ||
|
53823G
|
53823G
53823-02090 Protector, Front Side Panel, No.2 Rh[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
53823-02090 |
US $12.81 |
||
|
53824D
|
53824D
53824-02120 Protector, Front Side Panel, No.2 Lh[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
53824-02120 |
US $11.95 |
||
|
55224A
|
55224A
55224-02080
Insulator, Dash Panel, Outer No.2
[06.2013 - 05.2015] NDE180..6F; NDE180..6F LIGHT GRADE; NDE180..LHD..6F LIGHT GRADE&EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ON BOARD DIAGNOSIS) |
55224-02080 |
— | ||
|
55224A
|
55224A
55224-02120
Insulator, Dash Panel, Outer No.2
[05.2015 - 05.2016] NDE180..6F; NDE180..6F LIGHT GRADE; NDE180..LHD..6F LIGHT GRADE&EXHAUST EMISSION CONTROL-EUROPE STEP5+ WITH(ON BOARD DIAGNOSIS) |
55224-02120 |
— | ||
|
55315B
|
55315B
55315-02450
Spacer, Instrument Panel, No.1
[11.2016 -] NDE180,NRE180,ZRE18# |
55315-02450 |
— | ||
|
55315B
|
55315B
55315-05050 Spacer, Instrument Panel, No.1[06.2015 - 05.2016] NDE180,NRE180,ZRE18# |
55315-05050 |
US $1.60 |
||
|
55703A
|
55703A
55703-02390
Panel Sub-Assy, Cowl Top, Inner
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
55703-02390 |
— | ||
|
55705B
|
55705B
55705-02140
Panel Sub-Assy, Cowl Top Side, Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
55705-02140 |
— | ||
|
55706B
|
55706B
55706-02140
Panel Sub-Assy, Cowl Top Side, Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
55706-02140 |
— | ||
|
55711
|
55711
55701-02390
Panel, Cowl Top, Outer
[06.2013 - 09.2014] NDE180,NRE180,ZRE18#..LHD |
55701-02390 |
— | ||
| replacement | |||||
|
55711
|
55711
55701-02391
Panel, Cowl Top, Outer
[06.2013 - 09.2014] NDE180,NRE180,ZRE18#..LHD |
55701-02391 |
— | ||
|
55711
|
55711
55701-02391
Panel, Cowl Top, Outer
[10.2014 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
55701-02391 |
— | ||
|
55735A
|
55735A
55734-02260
Plate, Water Guard, Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
55734-02260 |
— | ||
|
55738D
|
55738D
55737-02150
Seal, Heater Air Duct Splash Shield, No.2
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
55737-02150 |
— | ||
|
55781E
|
55781E
55708-02590
Louver Sub-Assy, Cowl Top Ventilator
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
55708-02590 |
— | ||
|
55781E
|
55781E
55708-02610
Louver Sub-Assy, Cowl Top Ventilator
[06.2013 - 05.2016] NDE180..LHD..6F;NRE180,ZRE18#..LHD COLD AREA SPEC |
55708-02610 |
— | ||
|
55787
|
55787
90467-07076-C0 Clip, Radiator Grille[06.2013 - 05.2016] NDE180,NRE180,ZRE18# BLACK |
90467-07076-C0 |
from US $0.88 |
||
|
55787
|
55787
90467-07076-C7 Clip, Hood Moulding[03.2017 -] NDE180,NRE180,ZRE18# BLACK |
90467-07076-C7 |
from US $0.84 |
||
|
55797A
|
55797A
55797-02120
Seal, Cowl Water Extract
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
55797-02120 |
— | ||
|
56111
|
56111
56101-02D10
Glass, Windshield
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
56101-02D10 |
— | ||
|
56115A
|
56115A
56115-30120 Stopper, Windshield Glass, No.1[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
56115-30120 |
from US $1.76 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
56116-22050 |
from US $1.38 |
||
|
56117D
|
56117D
56117-50140 Dam Kit, Back Window Glass[06.2013 - 05.2016] NDE180,NRE180,ZRE18# *D,L=1262.5; ZRE182 *D,L=1262.5,WINDSHIELD DEICER-WITH; ZRE182..N *D,L=1262.5,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-WITH(AUTO); NDE180,NRE180,ZRE18#..N *D,L=1262.5,INTERMITTENT WIPER-WITH(AUTO) |
56117-50140 |
from US $12.77 |
||
|
75533G
|
75533G
75533-02150
Moulding, Windshield, Outside
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
75533-02150 |
— | ||
|
90119W0134
|
90119W0134
90119-W0134
New Genuine Part
|
90119-W0134 |
— | ||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
US $1.60 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
from US $1.85 |
||
