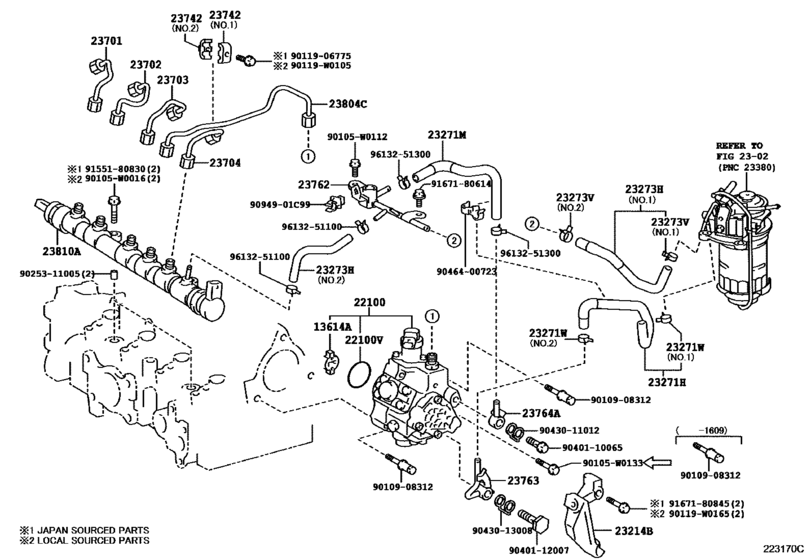

Injection Pump Assembly ([05.2015 - ] EURO6 (1505- )1NDTV..D,N ; (1505- )1NDTV..6F..G) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13614A
|
13614A
13614-0N010
Coupling, Supply Pump Drive
[06.2013 - 05.2015] 1NDTV..NDE180..6F (L) |
13614-0N010 |
— | ||
|
13614A
|
13614A
13614-0N020
Coupling, Supply Pump Drive, No.1
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
13614-0N020 |
— | ||
|
13614A
|
13614A
13614-33010 Coupling, Supply Pump Drive[06.2013 - 05.2015] 1NDTV..NDE180..6F (J) |
13614-33010 |
US $18.05 |
||
|
22100
|
22100
22100-0N030
Pump Assy, Injection Or Supply
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
22100-0N030 |
— | ||
|
22100
|
22100
22100-0W010
Pump Assy, Injection Or Supply
[06.2013 - 05.2015] 1NDTV..NDE180..LHD..6F |
22100-0W010 |
— | ||
|
22100
|
22100
22100-0W020
Pump Assy, Injection Or Supply
[06.2013 - 05.2015] 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE |
22100-0W020 |
— | ||
|
22100V
|
22100V
96723-35044 Ring, O(For Injection Pump)[06.2013 - 05.2016] 1NDTV..NDE180 |
96723-35044 |
from US $3.02 |
||
|
23214B
|
23214B
23214-33020
Protector, Fuel Pump
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23214-33020 |
— | ||
|
23271H
|
23271H
23271-0N020
Hose, Fuel, No.1
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23271-0N020 |
— | ||
|
23271H
|
23271H
23271-0N030
Hose, Fuel, No.1
[06.2013 - 05.2015] 1NDTV..NDE180..6F |
23271-0N030 |
— | ||
|
23271M
|
23271M
23271-0N070
Hose, Fuel
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23271-0N070 |
— | ||
|
23271W
|
23271W
90466-W0004
Clip(For Fuel Vapor Feed Hose)
[05.2015 - 05.2016] 1NDTV..NDE180..6F NO.1 |
90466-W0004 |
— | ||
|
23271W
|
23271W
96132-51300 Clip(For Ventilation Hose No.2)[06.2013 - 05.2015] 1NDTV..NDE180..6F |
96132-51300 |
from US $1.56 |
||
|
23271W
|
23271W
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2015 - 05.2016] 1NDTV..NDE180..6F NO.2 |
96137-41501 |
from US $1.92 |
||
|
23273H
|
23273H
23273-0N020
Hose, Fuel, No.2
[06.2013 - 05.2015] 1NDTV..NDE180..6F (L),NO.2:SEE ILLUST |
23273-0N020 |
— | ||
|
23273H
|
23273H
23273-0N030
Hose, Fuel, No.2
[06.2013 - 05.2015] 1NDTV..NDE180..6F NO.1:REFER ILLUST. |
23273-0N030 |
— | ||
|
23273H
|
23273H
23273-0N070
Hose, Fuel, No.2
[05.2015 - 05.2016] 1NDTV..NDE180..6F NO.1:REFER ILLUST. |
23273-0N070 |
— | ||
|
23273H
|
23273H
23273-0N080
Hose, Fuel, No.2
[05.2015 - 05.2016] 1NDTV..NDE180..6F NO.2:REFER ILLUST. |
23273-0N080 |
— | ||
|
23273H
|
23273H
23273-33090 Hose, Fuel, No.2FUEL, NO.2 [06.2013 - 05.2015] 1NDTV..NDE180..6F (J),NO.2:SEE ILLUST |
23273-33090 |
US $5.24 |
||
|
23273V
|
23273V
96132-51100 Clip (For Hose)[05.2015 - 05.2016] 1NDTV..NDE180..6F NO.1 |
96132-51100 |
from US $1.92 |
||
|
23273V
|
23273V
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2015 - 05.2016] 1NDTV..NDE180..6F NO.2 |
96137-41501 |
from US $1.92 |
||
|
23701
|
23701
23701-33031
Pipe Sub-Assy, Injection, No.1
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23701-33031 |
— | ||
|
23701
|
23701
23701-33040 Pipe Sub-Assy, Injection, No.1INJECTION, NO.1 [06.2013 - 05.2015] 1NDTV..NDE180..6F |
23701-33040 |
US $24.17 |
||
|
23702
|
23702
23702-33010 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [06.2013 - 05.2015] 1NDTV..NDE180..6F |
23702-33010 |
US $24.17 |
||
|
23702
|
23702
23702-33021
Pipe Sub-Assy, Injection, No.2
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23702-33021 |
— | ||
|
23703
|
23703
23703-33010 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [06.2013 - 05.2015] 1NDTV..NDE180..6F |
23703-33010 |
US $24.17 |
||
|
23703
|
23703
23703-33021
Pipe Sub-Assy, Injection, No.3
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23703-33021 |
— | ||
|
23704
|
23704
23704-33011
Pipe Sub-Assy, Injection, No.4
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23704-33011 |
— | ||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[05.2015 - 05.2016] 1NDTV..NDE180..6F NO.1:REFER ILLUST. |
23742-27010 |
from US $10.20 |
||
|
23742
|
23742
23742-58020 Clamp, Injection Pipe, No.2[05.2015 - 05.2016] 1NDTV..NDE180..6F NO.2:REFER ILLUST. |
23742-58020 |
from US $13.30 |
||
|
23762
|
23762
23762-0N010
Pipe, Nozzle Leakage, No.2
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23762-0N010 |
— | ||
|
23763
|
23763
23763-0N010 Pipe, Nozzle Leakage, No.3[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23763-0N010 |
US $22.71 |
||
|
23764A
|
23764A
23764-0N010 Pipe, Nozzle Leakage, No.4[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23764-0N010 |
US $14.27 |
||
|
23804C
|
23804C
23804-33020 Pipe Sub-Assy, Fuel InletFUEL INLET [06.2013 - 05.2015] 1NDTV..NDE180..6F |
23804-33020 |
US $32.18 |
||
|
23804C
|
23804C
23804-33031
Pipe Sub-Assy, Fuel Inlet
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23804-33031 |
— | ||
|
23810A
|
23810A
23810-0N030
Rail Assy, Common
[05.2015 - 05.2016] 1NDTV..NDE180..6F |
23810-0N030 |
— | ||
|
23810A
|
23810A
23810-33030 Rail Assy, CommonCOMMON [06.2013 - 05.2015] 1NDTV..NDE180..6F |
23810-33030 |
US $516.88 |
||
| replacements | |||||
|
23810A
|
23810A
17135-33012
Insulator, Intake Manifold, No.1
[06.2013 - 05.2015] 1NDTV..NDE180..6F |
17135-33012 |
— | ||
|
23810A
|
23810A
23810-33031 Rail Assy, Common[06.2013 - 05.2015] 1NDTV..NDE180..6F |
23810-33031 |
US $503.19 |
||
|
23810A
|
23810A
23810-33031 Rail Assy, Common[10.2015 - 05.2016] 1NDTV..NDE180..6FS; 1NDTV..NDE180..LHD..6F TURKEY SPEC |
23810-33031 |
US $503.19 |
||
|
90105W0016
|
90105W0016
90105-W0016
New Genuine Part
|
90105-W0016 |
— | ||
|
90105W0112
|
90105W0112
90105-W0112
BOLT FLANGE
|
90105-W0112 |
— | ||
|
90105W0133
|
90105W0133
90105-W0133
Bolt(For Head To Camshaft Bearing Cap)
|
90105-W0133 |
— | ||
|
90119W0105
|
90119W0105
90119-W0105
New Genuine Part
|
90119-W0105 |
— | ||
|
90119W0165
|
90119W0165
90119-W0165
Bolt(For Alternator)
|
90119-W0165 |
— | ||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9010908312
|
9010908312
90109-08312
New Genuine Part
|
90109-08312 |
— | ||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9025311005
|
9025311005
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $0.96 |
||
|
9040110065
|
9040110065
90401-10065 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-10065 |
from US $2.34 |
||
|
9040112007
|
9040112007
90401-12007 Bolt, Union, No.1 |
90401-12007 |
US $14.12 |
||
|
9043011012
|
9043011012
90430-11012
New Genuine Part
|
90430-11012 |
— | ||
|
9043013008
|
9043013008
90430-13008
New Genuine Part
|
90430-13008 |
— | ||
|
9046400723
|
9046400723
90464-00723 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90464-00723 |
US $3.04 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9167180845
|
9167180845
91671-80845 Bolt, No.2(For Alternator) |
91671-80845 |
US $0.87 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
