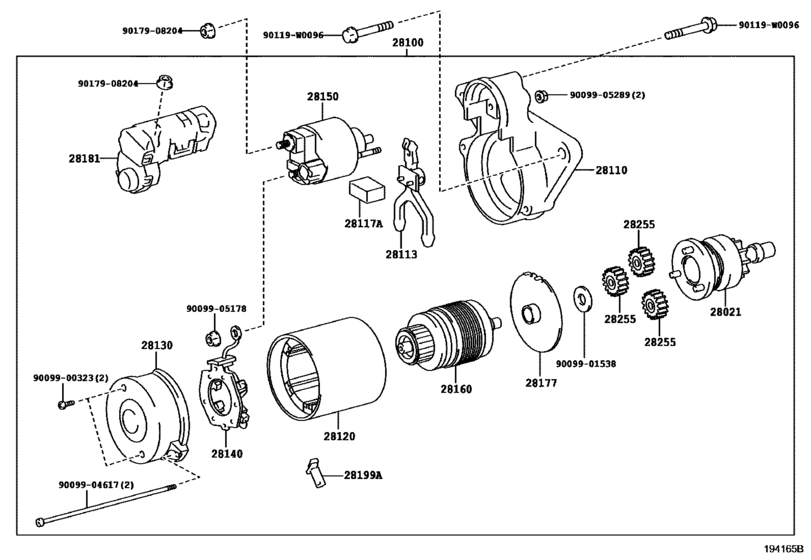

Starter ([06.2013 - ] 12V 1.6KW (1306- )1NDTV) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-0N120
Clutch Sub-Assy, Starter Center Bearing
[06.2013 - 05.2016] 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28021-0N120 |
— | ||
|
28021
|
28021
28021-33090 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28021-33090 |
US $75.71 |
||
|
28100
|
28100
28100-0N040
Starter Assy
[06.2013 - 05.2016] 1NDTV..NDE180..LHD 12V 1.6KW |
28100-0N040 |
— | ||
|
28100
|
28100
28100-0N110
Starter Assy
[06.2013 - 05.2016] 1NDTV..NDE180..LHD..6F 12V 2.0KW,COLD AREA SPEC; 1NDTV..NDE180..LHD 12V 2.0KW,SUB COLD AREA SPEC |
28100-0N110 |
— | ||
|
28100
|
28100
28100-0N120
Starter Assy
[06.2013 - 09.2014] 1NDTV..NDE180..LHD..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..LHD..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28100-0N120 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-0N121
Starter Assy
[06.2013 - 09.2014] 1NDTV..NDE180..LHD..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..LHD..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28100-0N121 |
— | ||
|
28100
|
28100
28100-0N121
Starter Assy
[10.2014 - 05.2016] 1NDTV..NDE180..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..6F 12V 1.7KW,START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28100-0N121 |
— | ||
|
28110
|
28110
28110-33110 Housing Assy, Starter DriveSTARTER DRIVE [06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28110-33110 |
US $66.98 |
||
|
28113
|
28113
28113-37050 Lever, Starter Pinion DriveSTARTER PINION DRIVE [06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28113-37050 |
US $11.94 |
||
|
28117A
|
28117A
28117-37050
Seal, Rubber
[06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28117-37050 |
— | ||
|
28120
|
28120
28120-0N110
Yoke Assy, Starter
[06.2013 - 05.2016] 1NDTV..NDE180..LHD..6F COLD AREA SPEC; 1NDTV..NDE180..LHD SUB COLD AREA SPEC |
28120-0N110 |
— | ||
|
28120
|
28120
28120-0N120
Yoke Assy, Starter
[06.2013 - 05.2016] 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28120-0N120 |
— | ||
|
28120
|
28120
28120-33110
Yoke Assy, Starter
[06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28120-33110 |
— | ||
|
28130
|
28130
28130-33110 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28130-33110 |
US $37.42 |
||
|
28140
|
28140
28140-0N120
Holder Assy, Starter Brush
[06.2013 - 10.2014] 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28140-0N120 |
— | ||
|
28140
|
28140
28140-21100
Holder Assy, Starter Brush
[10.2014 - 05.2016] 1NDTV..NDE180..6F START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..6F START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28140-21100 |
— | ||
|
28140
|
28140
28140-37050 Holder Assy, Starter BrushSTARTER BRUSH [06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28140-37050 |
US $29.17 |
||
|
28140
|
28140
28140-38070 Holder Assy, Starter Brush[06.2013 - 05.2016] 1NDTV..NDE180..LHD..6F COLD AREA SPEC; 1NDTV..NDE180..LHD SUB COLD AREA SPEC |
28140-38070 |
from US $17.65 |
||
|
28150
|
28150
28150-26190
Switch Assy, Magnet Starter
[06.2013 - 05.2016] 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28150-26190 |
— | ||
|
28150
|
28150
28150-37020 Switch Assy, Magnet Starter[06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28150-37020 |
US $99.27 |
||
|
28160
|
28160
28160-0N110
Armature Assy, Starter
[06.2013 - 05.2016] 1NDTV..NDE180..LHD..6F COLD AREA SPEC; 1NDTV..NDE180..LHD SUB COLD AREA SPEC |
28160-0N110 |
— | ||
|
28160
|
28160
28160-26180
Armature Assy, Starter
[06.2016 - 01.2018] 1NDTV..NDE180..LHD..6F COLD AREA SPEC,(J); 1NDTV..NDE180 SUB COLD AREA SPEC,(J) |
28160-26180 |
— | ||
|
28160
|
28160
28160-33090
Armature Assy, Starter
[06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28160-33090 |
— | ||
|
28160
|
28160
28160-38070
Armature Assy, Starter
[06.2013 - 05.2016] 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&COLD AREA SPEC; 1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
28160-38070 |
— | ||
|
28177
|
28177
28177-37050
Plate(For Starter Armature)
[06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28177-37050 |
— | ||
|
28181
|
28181
28181-33010 Terminal, StarterSTARTER [06.2013 - 05.2016] 1NDTV..NDE180 |
28181-33010 |
US $31.30 |
||
|
28199A
|
28199A
28199-33110
Protector, Dust Starter
[06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28199-33110 |
— | ||
|
28255
|
28255
28255-33090
Gear, Planet
[06.2013 - 05.2016] 1NDTV..NDE180..LHD |
28255-33090 |
— | ||
|
90119W0096
|
90119W0096
90119-W0096 New Genuine Part |
90119-W0096 |
US $2.91 |
||
|
9009900323
|
9009900323
90099-00323
Screw, Starter
|
90099-00323 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009904617
|
9009904617
90099-04617
New Genuine Part
|
90099-04617 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009905289
|
9009905289
90099-05289
New Genuine Part
|
90099-05289 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
