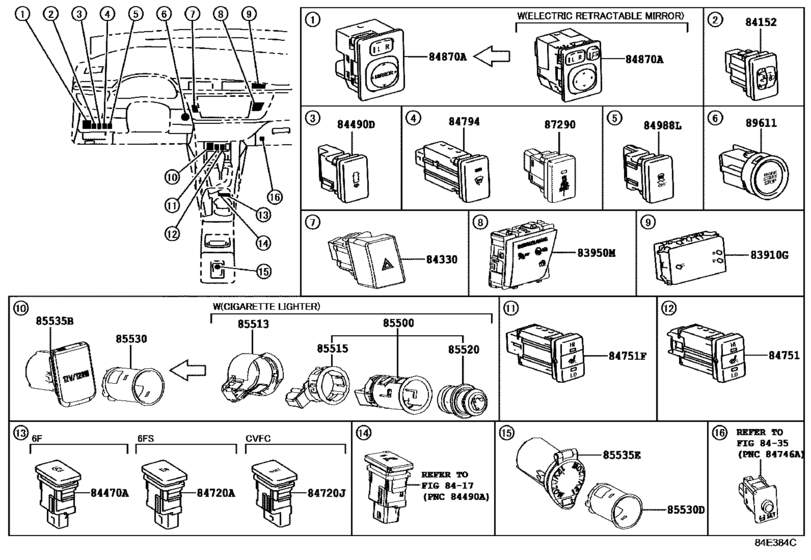

Switch & Relay & Computer ([06.2013 - 05.2016] INSTRUMENT PANEL (1306-1605)LHD) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-02200
Clock Assy
[06.2016 -] NDE180,NRE180,ZRE181..EUR |
83910-02200 |
— | ||
|
83910G
|
83910G
83910-12630
Clock Assy
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
83910-12630 |
— | ||
|
83950M
|
83950M
83950-02230
Lamp Assy, Telltale
[06.2013 - 05.2016] NDE180,NRE180..LHD;ZRE181..LHD..HTWVM |
83950-02230 |
— | ||
|
84152
|
84152
84152-02080
Switch, Headlamp Leveling
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
84152-02080 |
— | ||
|
84330
|
84330
84332-02210
Switch Assy, Hazard Warning Signal
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
84332-02210 |
— | ||
|
84330
|
84330
84332-02300
Switch Assy, Hazard Warning Signal
[06.2016 -] NDE180,NRE180,ZRE18# |
84332-02300 |
— | ||
|
84470A
|
84470A
84470-02010
Switch Assy, Ecorun Cancel
[06.2013 - 02.2015] NDE180..LHD..6F START & STOP SYSTEM PACKAGE |
84470-02010 |
— | ||
|
84470A
|
84470A
84470-02011
Switch Assy, Ecorun Cancel
[03.2015 - 05.2016] NDE180..6F START & STOP SYSTEM PACKAGE |
84470-02011 |
— | ||
|
84870A
|
84870A
84870-02090-C0
Switch Assy, Outer Mirror
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# BLACK |
84870-02090-C0 |
— | ||
|
84988L
|
84988L
84988-02040
Switch, Vsc Off
[06.2013 - 02.2015] NDE180,NRE180,ZRE181; ZRE182 VSC-WITH(W/CUT OFF SWITCH); NDE180..LHD..6F;NRE180,ZRE181..LHD..HTWC VSC-WITHOUT |
84988-02040 |
— | ||
|
84988L
|
84988L
84988-02041
Switch, Vsc Off
[03.2015 - 05.2016] NDE180,NRE180,ZRE181; NDE180..LHD..6F;NRE180,ZRE181..LHD..HTWC VSC-WITHOUT |
84988-02041 |
— | ||
|
85500
|
85500
85500-59015
Lighter Assy, Cigarette
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY; NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
85500-59015 |
— | ||
|
85513
|
85513
85513-12030
Cover, Cigarette Lighter
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY; NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
85513-12030 |
— | ||
|
85515
|
85515
85515-12140
Stay, Cigarette Lighter Bezel
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY; NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
85515-12140 |
— | ||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[06.2013 - 05.2016] NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY; NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
85520-28010 |
from US $17.90 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[06.2013 - 05.2016] NDE180,NRE180,ZRE18#; NDE180,NRE180,ZRE18# ASH TRAY-WITH; NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY |
85530-42010 |
from US $26.60 |
||
|
85530D
|
85530D
85530-42010 Socket Assy, Power Outlet, No.1[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NDE180,NRE180,ZRE18#..N ASH TRAY-WITH; NDE180,NRE180,ZRE18#..N POWER OUTLETS-CIGARETTE LIGHTER ONLY; NDE180,NRE180,ZRE18#..D POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
85530-42010 |
from US $26.60 |
||
|
85535B
|
85535B
85535-12090-C0
Cover, Power Outlet Socket, No.1
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18# ASH TRAY-WITH,BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY,BLACK,TRIM0#,2# |
85535-12090-C0 |
— | ||
|
85535B
|
85535B
85535-50020 Cover, Power Outlet Socket, No.1[06.2016 -] NDE180,NRE180,ZRE18#; ZRE181..6F..D..EUR;ZRE181..LHD..CVT..EUR POWER OUTLETS-CIGARETTE LIGHTER ONLY |
85535-50020 |
from US $6.01 |
||
|
85535E
|
85535E
85535-30020 Cover, Power Outlet Socket, No.1[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NDE180,NRE180,ZRE18#..N ASH TRAY-WITH; NDE180,NRE180,ZRE18#..N POWER OUTLETS-CIGARETTE LIGHTER ONLY; NDE180,NRE180,ZRE18#..D POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
85535-30020 |
from US $6.08 |
||
|
87290
|
87290
87290-02030
Switch Assy, Heater
[06.2013 - 05.2016] NDE180..LHD..6F COLD AREA SPEC |
87290-02030 |
— |
