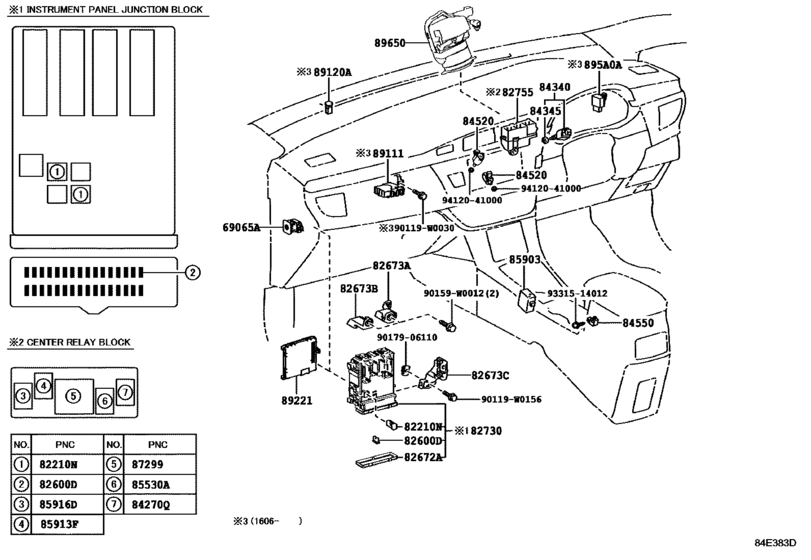

Switch & Relay & Computer ([06.2013 - ] COWL (1306- )RHD) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0A
|
895A0A
895A0-12030
Computer Assy, Stop Lamp Control
[06.2016 -] NDE180,NRE180,ZRE181..D; NDE180,NRE180,ZRE181..(G,N)..EUR LIGHT GRADE; NDE180,NRE180,ZRE181..RHD PRE-COLLISION SYSTEM-WITH&REAR COMBINATION LAMP-LED(TAIL & STOP LAMP); NDE180,NRE180,ZRE181..RHD REAR COMBINATION LAMP-LED(TAIL & STOP LAMP) |
895A0-12030 |
— | ||
|
69065A
|
69065A
69065-02010
Cylinder Sub-Assy, Air Bag Cut Off Switch
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
69065-02010 |
— | ||
|
82210N
|
82210N
90982-08306 Fusible Link[06.2013 - 05.2016] NDE180,NRE180,ZRE18# 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[06.2013 - 05.2016] NDE180,NRE180,ZRE18# 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[06.2013 - 05.2016] NDE180,NRE180,ZRE18# 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[06.2013 - 05.2016] NDE180,NRE180,ZRE18# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[06.2013 - 05.2016] NDE180,NRE180,ZRE18# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[06.2013 - 05.2016] NDE180,NRE180,ZRE18# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[06.2013 - 05.2016] NDE180,NRE180,ZRE18# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82672A
|
82672A
82672-12450 Cover, Junction Block[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
82672-12450 |
US $3.49 |
||
|
82673A
|
82673A
82673-12310 Bracket, Junction Block[06.2013 - 05.2016] NDE180,NRE180,ZRE181..RHD |
82673-12310 |
US $10.48 |
||
|
82673B
|
82673B
82673-12320 Bracket, Junction Block[06.2013 - 05.2016] NDE180,NRE180,ZRE181..RHD |
82673-12320 |
US $11.36 |
||
|
82673C
|
82673C
82673-12330 Bracket, Junction Block[06.2013 - 05.2016] NDE180,NRE180,ZRE181..RHD |
82673-12330 |
US $13.83 |
||
|
82730
|
82730
82730-12X70
Block Assy, Instrument Panel Junction
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD |
82730-12X70 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-12X71
Block Assy, Instrument Panel Junction
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD |
82730-12X71 |
— | ||
|
82730
|
82730
82730-12X71
Block Assy, Instrument Panel Junction
[03.2016 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D; NDE180,NRE180,ZRE181..RHD LIGHT GRADE; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN) |
82730-12X71 |
— | ||
|
82730
|
82730
82730-12X80 Block Assy, Instrument Panel Junction[05.2015 - 03.2016] NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD; NDE180,NRE180,ZRE18#..LHD..D POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN) |
82730-12X80 |
US $195.10 |
||
| replacement | |||||
|
82730
|
82730
82730-12X81 Block Assy, Instrument Panel Junction[05.2015 - 03.2016] NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD; NDE180,NRE180,ZRE18#..LHD..D POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN) |
82730-12X81 |
US $176.18 |
||
|
82730
|
82730
82730-12X81 Block Assy, Instrument Panel Junction[03.2016 - 05.2016] NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD; NDE180,NRE180,ZRE18#..LHD..D POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN) |
82730-12X81 |
US $176.18 |
||
|
82755
|
82755
82755-12030
Block, Center Relay
[06.2013 - 05.2016] NDE180,NRE180,ZRE181..RHD |
82755-12030 |
— | ||
|
84270Q
|
84270Q
90080-87021
Relay, Lamp Cut
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
90080-87021 |
— | ||
|
84340
|
84340
84340-09020 Switch Assy, Stop Lamp[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
84340-09020 |
US $21.11 |
||
|
84340
|
84340
84340-F9010
Switch Assy, Stop Lamp
[06.2016 -] NDE180,NRE180,ZRE18# |
84340-F9010 |
— | ||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
84345-51010 |
from US $3.49 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[06.2013 - 05.2016] NDE180,NRE180,ZRE181..6F |
84520-42010 |
from US $34.13 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[06.2013 - 05.2016] NDE180,NRE180,ZRE181..RHD |
84550-16060 |
from US $17.48 |
||
|
85530A
|
85530A
90987-02027 Relay[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NDE180,NRE180,ZRE18#..N ASH TRAY-WITH; NDE180,NRE180,ZRE18#..N POWER OUTLETS-CIGARETTE LIGHTER ONLY; NDE180,NRE180,ZRE18#..D POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
90987-02027 |
from US $44.54 |
||
|
85916D
|
85916D
90987-02027 Relay[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD FRONT FOG LAMP-WITH |
90987-02027 |
from US $44.54 |
||
|
87299
|
87299
90080-87030 Relay, Ignition, No.1[06.2013 - 05.2016] NDE180,NRE180,ZRE18#; NDE180..N COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL); NDE180..N COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER; NRE180,ZRE18#..N AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CO |
90080-87030 |
US $39.46 |
||
|
89111
|
89111
89100-02030
Computer, Network Gateway
[06.2016 -] NDE180,NRE180,ZRE181..RHD PRE-COLLISION SYSTEM-WITH |
89100-02030 |
— | ||
|
89120A
|
89120A
89121-12010 Sensor, Automatic Light Control[06.2016 -] NDE180,ZRE18#..G; NDE180..6F..N INTERMITTENT WIPER-WITH(AUTO); NDE180..6F..N INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-HALOGEN & WITH(*AHB); NRE180,ZRE181..N..EUR INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-HALOGEN & WITH(*AHB)&AIR CONDITIONER-AUTO A |
89121-12010 |
from US $129.25 |
||
|
89221
|
89221
89220-02161
Computer, Multiplex Network Body
[06.2013 - 05.2016] NDE180,NRE180,ZRE181..RHD |
89220-02161 |
— | ||
|
89221
|
89221
89220-02K60
Computer, Multiplex Network Body
[06.2016 -] NDE180,NRE180,ZRE181..RHD |
89220-02K60 |
— | ||
|
89650
|
89650
89650-12D90
Computer Assy, Power Steering
[06.2016 -] NDE180,NRE180,ZRE181..RHD |
89650-12D90 |
— | ||
|
89650
|
89650
89650-12E90
Computer Assy, Power Steering
[06.2013 - 04.2015] NDE180,NRE180,ZRE181..RHD |
89650-12E90 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-12E91
Computer Assy, Power Steering
[06.2013 - 04.2015] NDE180,NRE180,ZRE181..RHD |
89650-12E91 |
— | ||
|
89650
|
89650
89650-12E91
Computer Assy, Power Steering
[05.2015 - 05.2016] NDE180,NRE180,ZRE181..RHD |
89650-12E91 |
— | ||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— | ||
|
90119W0156
|
90119W0156
90119-W0156 New Genuine Part |
90119-W0156 |
US $1.46 |
||
|
90159W0012
|
90159W0012
90159-W0012
New Genuine Part
|
90159-W0012 |
— | ||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
