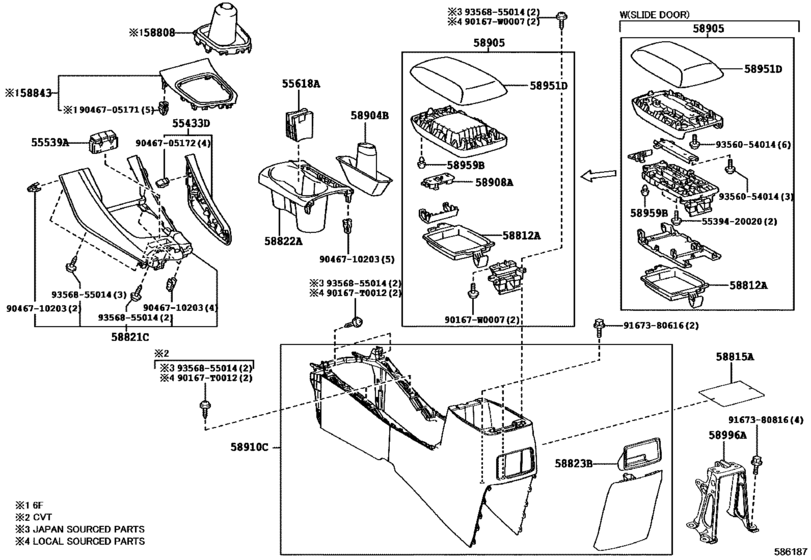

Console Box & Bracket ([01.2017 - ] (1701- )SA) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55433D
|
55433D
55433-02510-C0
Panel, Instrument Panel Finish, Lower No.2
[01.2017 -] NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
55433-02510-C0 |
— | ||
|
55539A
|
55539A
55539-52060-C0 Cover, Spare Switch Hole[01.2014 - 01.2017] ZRE181..CVT..N..GEN..SAP BLACK,TRIM0#,2#; ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
55539-52060-C0 |
from US $3.49 |
||
|
55539A
|
55539A
84970-02150
Cover, Spare Switch Hole
[06.2016 -] NDE180,NRE180,ZRE18#..6F |
84970-02150 |
— | ||
|
55618A
|
55618A
55618-02230-C0
Holder, Console Box Cup
[01.2014 - 01.2017] ZRE181..CVT..N..GEN..SAP BLACK,TRIM0#,2#; ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
55618-02230-C0 |
— | ||
|
58808
|
58808
58808-02490-C0
Cover Sub-Assy, Shifting Hole
[01.2014 - 06.2015] NDE180,NRE180,ZRE181..D..SA BLACK,TRIM2# |
58808-02490-C0 |
— | ||
| replacement | |||||
|
58808
|
58808
58808-02490-C1
Cover Sub-Assy, Shifting Hole
[01.2014 - 06.2015] NDE180,NRE180,ZRE181..D..SA BLACK,TRIM2# |
58808-02490-C1 |
— | ||
|
58808
|
58808
58808-02490-C1
Cover Sub-Assy, Shifting Hole
[06.2015 - 01.2017] NDE180,NRE180,ZRE181..D..SA EU BLACK,TRIM2# |
58808-02490-C1 |
— | ||
|
58808
|
58808
58808-02550-C3
Cover Sub-Assy, Shifting Hole
[01.2017 -] NDE180,NRE180,ZRE18#..6F..SA BLACK,TRIM2# |
58808-02550-C3 |
— | ||
|
58812A
|
58812A
58812-02290-C0
Box, Console, Lower
[01.2014 - 05.2015] NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
58812-02290-C0 |
— | ||
| replacement | |||||
|
58812A
|
58812A
58812-02290-C1
Box, Console, Lower
[01.2014 - 05.2015] NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
58812-02290-C1 |
— | ||
|
58812A
|
58812A
58812-02290-C1
Box, Console, Lower
[05.2015 - 01.2017] ZRE181..CVT..N..GEN..SAP EU BLACK,TRIM0#,2#; ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP EU BLACK,TRIM2# |
58812-02290-C1 |
— | ||
|
58815A
|
58815A
58815-02240
Carpet, Console Box
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
58815-02240 |
— | ||
|
58821C
|
58821C
58821-02770-C0
Panel, Console, Upper
[01.2017 -] NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
58821-02770-C0 |
— | ||
|
58821C
|
58821C
58821-02850-C0
Panel, Console, Upper
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
58821-02850-C0 |
— | ||
|
58822A
|
58822A
58822-02260-C1
Panel, Console, Upper Rear
[01.2017 -] NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
58822-02260-C1 |
— | ||
|
58823B
|
58823B
58823-02020-C0
Box, Console Compartment
[01.2014 - 01.2017] ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
58823-02020-C0 |
— | ||
|
58843
|
58843
58843-02540
Bezel, Shifting Hole
[01.2014 - 01.2017] NDE180,NRE180,ZRE181..D..SA |
58843-02540 |
— | ||
|
58843
|
58843
58843-02880
Bezel, Shifting Hole
[01.2017 -] NDE180,NRE180,ZRE18#..6F..SA |
58843-02880 |
— | ||
|
58904B
|
58904B
58904-02200-C0
Cover Sub-Assy, Parking Brake Hole
[01.2017 -] ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
58904-02200-C0 |
— | ||
|
58905
|
58905
58905-02781-C2
Door Sub-Assy, Console Compartment
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..D BLACK/BLACK,TRIM2# |
58905-02781-C2 |
— | ||
|
58905
|
58905
58905-02781-C4
Door Sub-Assy, Console Compartment
[05.2015 - 01.2017] NDE180,NRE180,ZRE18#..D..SAP BLACK/EU BLACK,TRIM2# |
58905-02781-C4 |
— | ||
|
58905
|
58905
58905-02781-C5
Door Sub-Assy, Console Compartment
[06.2016 -] NDE180,NRE180,ZRE18# BLACK/EU BLACK,TRIM2# |
58905-02781-C5 |
— | ||
|
58908A
|
58908A
58908-02031
Lock Sub-Assy, Console Compartment Door
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..D..SAP |
58908-02031 |
— | ||
|
58910C
|
58910C
58910-02380-C0
Box Assy, Console, Rear
[01.2014 - 08.2015] NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
58910-02380-C0 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-02381-C0
Box Assy, Console, Rear
[01.2014 - 08.2015] NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
58910-02381-C0 |
— | ||
|
58910C
|
58910C
58910-02381-C0
Box Assy, Console, Rear
[09.2015 - 01.2017] ZRE181..CVT..N..GEN..SAP BLACK,TRIM0#,2#; ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
58910-02381-C0 |
— | ||
|
58951D
|
58951D
58951-02570-C3
Door, Console Compartment, Outer
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..D..SAP BLACK,TRIM2# |
58951-02570-C3 |
— | ||
|
58951D
|
58951D
58951-02570-C5
Door, Console Compartment, Outer
[06.2016 -] NDE180,NRE180,ZRE18# BLACK,TRIM2# |
58951-02570-C5 |
— | ||
|
58959B
|
58959B
90541-03078 Cushion(For Cup Holder)[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
90541-03078 |
from US $1.66 |
||
|
58996A
|
58996A
58996-02100
Bracket, Console Box Mounting, No.2
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
58996-02100 |
— | ||
|
90167T0012
|
90167T0012
90167-T0012
Direct
|
90167-T0012 |
— | ||
| replacement | |||||
|
90167T0012
|
90167T0012
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
5539420020
|
5539420020
55394-20020 New Genuine Part |
55394-20020 |
US $0.87 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
US $0.96 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
US $0.96 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.80 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.74 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
