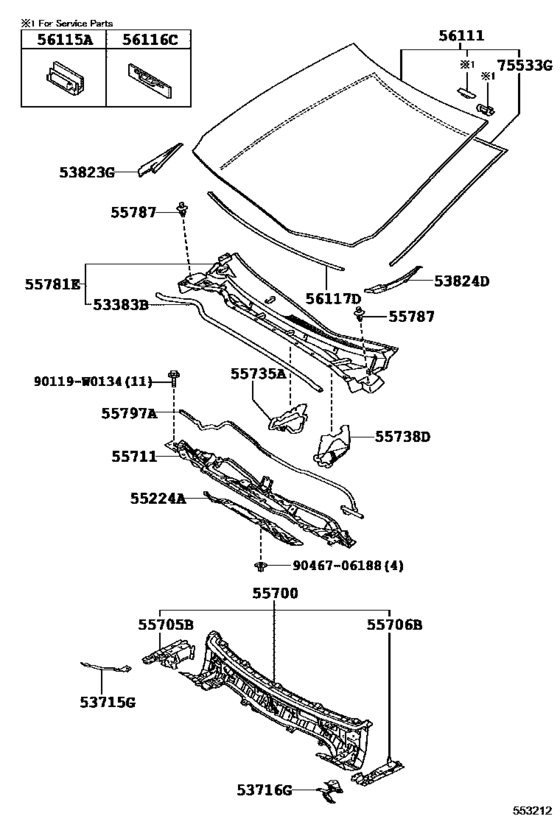

Cowl Panel & Windshield Glass ([01.2014 - ] (1401- )SA) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-02200
Seal, Hood To Cowl Top
[06.2013 - 01.2017] NDE180;NRE180,ZRE18#..SAP |
53383-02200 |
— | ||
|
53715G
|
53715G
53715-02030
Extension, Front Fender Apron, Rear Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53715-02030 |
— | ||
|
53716G
|
53716G
53716-02040
Extension, Front Fender Apron, Rear Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53716-02040 |
— | ||
|
53823G
|
53823G
53823-02120
Protector, Front Side Panel, No.2 Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
53823-02120 |
— | ||
|
53824D
|
53824D
53824-02090
Protector, Front Side Panel, No.2 Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
53824-02090 |
— | ||
|
55224A
|
55224A
55224-02080
Insulator, Dash Panel, Outer No.2
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
55224-02080 |
— | ||
|
55700
|
55700
55700-02510
Panel Assy, Front
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
55700-02510 |
— | ||
|
55705B
|
55705B
55705-12140 Panel Sub-Assy, Cowl Top Side, Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
55705-12140 |
US $33.20 |
||
|
55706B
|
55706B
55706-12150 Panel Sub-Assy, Cowl Top Side, Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
55706-12150 |
US $33.20 |
||
|
55711
|
55711
55701-02380
Panel, Cowl Top, Outer
[01.2014 - 09.2014] NDE180,NRE180,ZRE18#..SA |
55701-02380 |
— | ||
| replacement | |||||
|
55711
|
55711
55701-02381
Panel, Cowl Top, Outer
[01.2014 - 09.2014] NDE180,NRE180,ZRE18#..SA |
55701-02381 |
— | ||
|
55711
|
55711
55701-02381
Panel, Cowl Top, Outer
[10.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
55701-02381 |
— | ||
|
55735A
|
55735A
55734-02260
Plate, Water Guard, Lh
[06.2013 - 01.2017] NDE180;NRE180,ZRE18#..SAP |
55734-02260 |
— | ||
|
55738D
|
55738D
55737-02140
Seal, Heater Air Duct Splash Shield, No.2
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
55737-02140 |
— | ||
|
55781E
|
55781E
55708-02580
Louver Sub-Assy, Cowl Top Ventilator
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
55708-02580 |
— | ||
|
55787
|
55787
90467-07076-C0 Clip, Radiator Grille[06.2013 - 01.2017] NDE180;NRE180,ZRE18#..SAP BLACK |
90467-07076-C0 |
from US $0.88 |
||
|
55787
|
55787
90467-07076-C7 Clip, Hood Moulding[03.2017 -] NDE180,NRE180,ZRE18# BLACK |
90467-07076-C7 |
from US $0.86 |
||
|
55797A
|
55797A
55797-02120
Seal, Cowl Water Extract
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
55797-02120 |
— | ||
|
56111
|
56111
56101-02A40
Glass, Windshield
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
56101-02A40 |
— | ||
|
56115A
|
56115A
56115-30120 Stopper, Windshield Glass, No.1[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
56115-30120 |
from US $1.76 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
56116-22050 |
from US $1.38 |
||
|
56117D
|
56117D
56117-50140 Dam Kit, Back Window Glass[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP *D,L=1262.5; NDE180,NRE180,ZRE18#..N..SA *D,L=1262.5,INTERMITTENT WIPER-WITH(AUTO) |
56117-50140 |
from US $12.79 |
||
|
75533G
|
75533G
75533-02170
Moulding, Windshield, Outside
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
75533-02170 |
— | ||
|
90119W0134
|
90119W0134
90119-W0134
New Genuine Part
|
90119-W0134 |
— | ||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
from US $1.85 |
||
