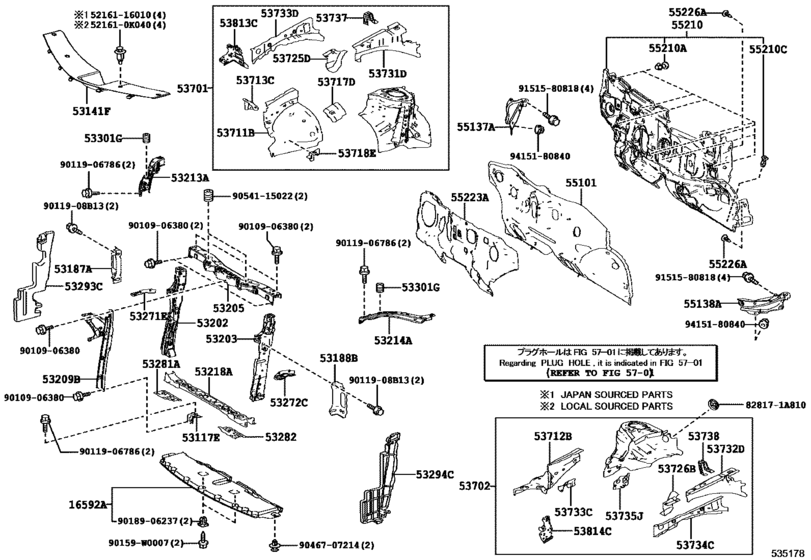

Front Fender Apron & Dash Panel ([01.2017 - ] (1701- )SA) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16592A
|
16592A
16592-0T120
Guide, Radiator Air, No.3
[06.2016 -] 1NDTV..NDE180;1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP;1NRFE,1ZRFE,2ZRFE..NRE180,ZRE1 8#..N..TUP; 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER |
16592-0T120 |
— | ||
|
53117E
|
53117E
53117-02020
Bracket, Radiator Grille, Lower
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53117-02020 |
— | ||
|
53141F
|
53141F
53141-02090
Cover, Radiator
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53141-02090 |
— | ||
|
53187A
|
53187A
53187-12030 Stay, Radiator Support, Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53187-12030 |
from US $26.30 |
||
|
53188B
|
53188B
53188-12030 Stay, Radiator Support, Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53188-12030 |
from US $26.30 |
||
|
53202
|
53202
53202-02140
Support Sub-Assy, Radiator, Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53202-02140 |
— | ||
|
53203
|
53203
53203-02150
Support Sub-Assy, Radiator, Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53203-02150 |
— | ||
|
53205
|
53205
53205-02230
Support Sub-Assy, Radiator, Upper
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53205-02230 |
— | ||
|
53209B
|
53209B
53209-02081
Brace Sub-Assy, Hood Lock Support
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53209-02081 |
— | ||
|
53209B
|
53209B
53209-02100
Brace Sub-Assy, Hood Lock Support
[06.2016 -] NDE180,NRE180,ZRE18# |
53209-02100 |
— | ||
|
53213A
|
53213A
53107-02030 Support, Radiator, Upper Rh[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53107-02030 |
US $32.53 |
||
|
53214A
|
53214A
53214-02120
Support, Radiator, Upper Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53214-02120 |
— | ||
|
53218A
|
53218A
53218-12030
Support, Radiator, Lower
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53218-12030 |
— | ||
|
53271E
|
53271E
53271-02070
Bracket, Headlamp Mounting, Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53271-02070 |
— | ||
|
53272C
|
53272C
53272-02070
Bracket, Headlamp Mounting, Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53272-02070 |
— | ||
|
53281A
|
53281A
53281-12020
Reinforcement, Front Body Mounting, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53281-12020 |
— | ||
|
53282
|
53282
53282-12020
Reinforcement, Front Body Mounting, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53282-12020 |
— | ||
|
53293C
|
53293C
53293-02160 Deflector, Radiator Side, Rh[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53293-02160 |
US $26.01 |
||
|
53293C
|
53293C
53293-02240
Deflector, Radiator Side, Rh
[06.2016 -] NDE180,NRE180,ZRE18# |
53293-02240 |
— | ||
|
53294C
|
53294C
53294-02160 Deflector, Radiator Side, Lh[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53294-02160 |
US $25.97 |
||
|
53294C
|
53294C
53294-02230
Deflector, Radiator Side, Lh
[06.2016 -] NDE180,NRE180,ZRE18# |
53294-02230 |
— | ||
|
53301G
|
53301G
53384-50010 Cushion, Hood Bumper[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53384-50010 |
from US $5.44 |
||
|
53701
|
53701
53701-02310
Apron Sub-Assy, Front Fender, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53701-02310 |
— | ||
|
53702
|
53702
53702-02230
Apron Sub-Assy, Front Fender, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53702-02230 |
— | ||
|
53711B
|
53711B
53711-02070
Apron, Front Fender, Front Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53711-02070 |
— | ||
|
53712B
|
53712B
53712-02120
Apron, Front Fender, Front Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53712-02120 |
— | ||
|
53713C
|
53713C
53713-12160 Extension Sub-Assy, Front Fender Apron, Front Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53713-12160 |
US $9.76 |
||
|
53717D
|
53717D
53717-12070 Plate, Fender Apron, Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53717-12070 |
US $16.31 |
||
|
53718E
|
53718E
53718-12060 Plate, Fender Apron[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53718-12060 |
US $4.37 |
||
|
53725D
|
53725D
53725-12040 Reinforcement, Front Spring Support, No.2 Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53725-12040 |
US $20.37 |
||
|
53726B
|
53726B
53726-12040 Reinforcement, Front Spring Support, No.2 Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53726-12040 |
US $14.52 |
||
|
53731D
|
53731D
53731-12170 Member, Front Apron To Cowl Side, Upper Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53731-12170 |
US $42.81 |
||
|
53732D
|
53732D
53732-12150 Member, Front Apron To Cowl Side, Upper Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53732-12150 |
US $51.02 |
||
|
53733C
|
53733C
53736-12070 Patch, Front Fender Apron[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53736-12070 |
US $6.84 |
||
|
53733D
|
53733D
53733-12070 Member, Front Apron To Cowl Side, Lower Front Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53733-12070 |
US $25.86 |
||
|
53734C
|
53734C
53734-12070 Member, Front Apron To Cowl Side, Lower Front Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53734-12070 |
US $25.86 |
||
|
53735J
|
53735J
53735-12070 Patch, Front Fender Apron, No.5[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53735-12070 |
US $9.26 |
||
|
53737
|
53737
53737-02140
Plate, Front Apron To Cowl Side Member, Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53737-02140 |
— | ||
|
53738
|
53738
53738-02110
Plate, Front Apron To Cowl Side Member, Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53738-02110 |
— | ||
|
53813C
|
53813C
53813-02120 Extension, Front Fender, Rh[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53813-02120 |
US $28.10 |
||
|
53814C
|
53814C
53814-02120
Extension, Front Fender, Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53814-02120 |
— | ||
|
55101
|
55101
55101-02800
Panel Sub-Assy, Dash
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..6F..SA |
55101-02800 |
— | ||
|
55137A
|
55137A
55137-02110
Brace, Dash To Frame, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
55137-02110 |
— | ||
|
55138A
|
55138A
55138-02100
Brace, Dash To Frame, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
55138-02100 |
— | ||
|
55210
|
55210
55210-02480
Insulator Assy, Dash Panel
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
55210-02480 |
— | ||
|
55210A
|
55210A
90467-11122 Clip[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
90467-11122 |
US $1.60 |
||
|
55210C
|
55210C
90467-11127 Clip[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
90467-11127 |
US $1.51 |
||
|
55223A
|
55223A
55223-02190
Insulator, Dash Panel, Outer
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
55223-02190 |
— | ||
|
55226A
|
55226A
90467-08186-C0 Clip(For Front Bumper), No.1[06.2013 - 10.2016] NDE180;NRE180,ZRE18#..SAP BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
55226A
|
55226A
90467-08186-C3 Clip(For Front Bumper), No.1[10.2016 - 01.2017] NDE180,NRE180,ZRE18#..SAP BLACK |
90467-08186-C3 |
from US $0.78 |
||
|
90159W0007
|
90159W0007
90159-W0007
SCREW WWASHER TAPP
|
90159-W0007 |
— | ||
|
521610K040
|
521610K040
52161-0K040 Clip |
52161-0K040 |
from US $1.46 |
||
| replacement | |||||
|
521610K040
|
521610K040
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9011908B13
|
9011908B13
90119-08B13 BOLT WWASHER |
90119-08B13 |
US $1.44 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.46 |
||
| replacement | |||||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.44 |
||
|
9018906237
|
9018906237
90189-06237 Grommet(For Engine Under Cover) |
90189-06237 |
from US $0.64 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.88 |
||
|
9054115022
|
9054115022
90541-15022 Cushion, Radiator Support |
90541-15022 |
from US $2.63 |
||
|
9151580818
|
9151580818
91515-80818 New Genuine Part |
91515-80818 |
US $1.02 |
||
|
9415180840
|
9415180840
94151-80840 NUT, FLANGE |
94151-80840 |
from US $1.28 |
||
