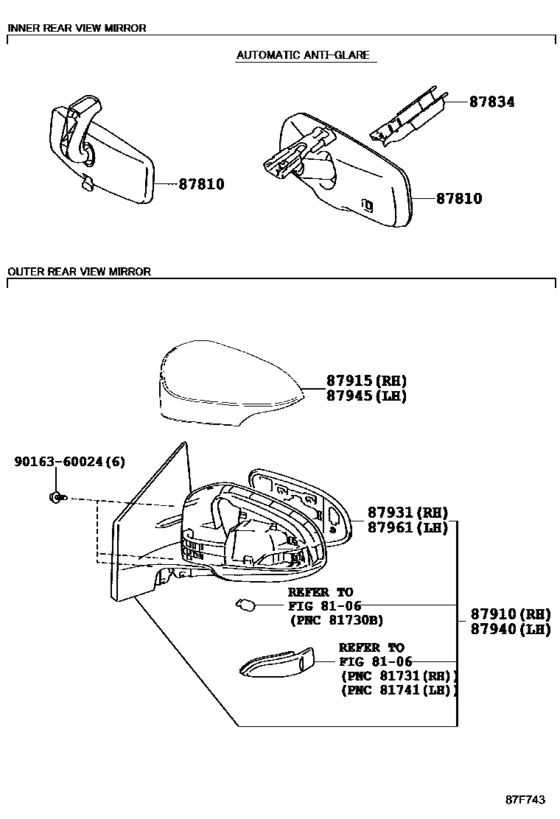

Mirror ([06.2013 - ] (1306- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-0F010 Mirror Assy, Inner Rear ViewINNER REAR VIEW [06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
87810-0F010 |
US $40.54 |
||
|
87910
|
87910
87910-02G90
Mirror Assy, Outer Rear View, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
87910-02G90 |
— | ||
|
87915
|
87915
87915-02927
Cover, Outer Mirror, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
87915-02927 |
— | ||
|
87931
|
87931
87931-02G70
Outer Mirror, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
87931-02G70 |
— | ||
|
87940
|
87940
87940-02G30
Mirror Assy, Outer Rear View, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
87940-02G30 |
— | ||
|
87945
|
87945
87945-02927
Cover, Outer Mirror, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
87945-02927 |
— | ||
|
87961
|
87961
87961-02G10
Mirror Outer, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
87961-02G10 |
— | ||
|
9016360024
|
9016360024
90163-60024 SCREW HEXAGON |
90163-60024 |
US $0.96 |
