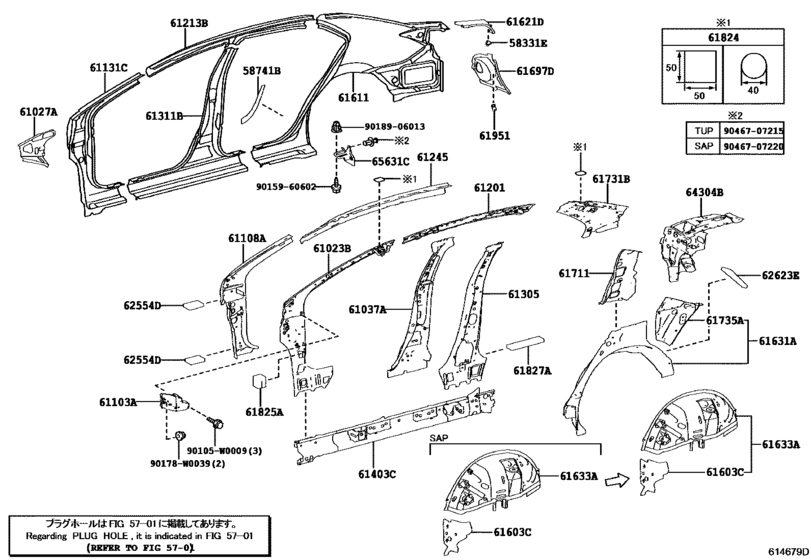

Side Member ([06.2013 - ] RH (1306- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58331E
|
58331E
58331-02120
Bracket, Luggage Compartment Trim, No.1
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
58331-02120 |
— | ||
|
58741B
|
58741B
58741-02190
Protector, Quarter Panel, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP ANTI-CHIPPING TAPE-WITH(REAR DOOR & QUARTER) |
58741-02190 |
— | ||
|
61023B
|
61023B
61023-02300
Pillar Sub-Assy, Front Body, Inner Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61023-02300 |
— | ||
|
61027A
|
61027A
61027-02020
Pillar Sub-Assy, Front Body, Outer Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61027-02020 |
— | ||
|
61037A
|
61037A
61037-02230
Reinforcement Sub-Assy, Center Body Pillar, Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61037-02230 |
— | ||
|
61103A
|
61103A
61103-02170
Reinforcement Sub-Assy, Cowl Side, Rh
[01.2014 - 12.2016] NDE180,NRE180,ZRE18#..SAP |
61103-02170 |
— | ||
|
61103A
|
61103A
61103-02171
Reinforcement Sub-Assy, Cowl Side, Rh
[01.2017 -] NDE180,NRE180,ZRE18#..SAP |
61103-02171 |
— | ||
|
61108A
|
61108A
61108-02210
Reinforce Sub-Assy, Front Body Pillar, Lower Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61108-02210 |
— | ||
|
61131C
|
61131C
61131-02300
Pillar, Front Body, Outer Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61131-02300 |
— | ||
|
61201
|
61201
61201-02220
Rail Sub-Assy, Roof Side, Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61201-02220 |
— | ||
|
61213B
|
61213B
61213-02090
Rail, Roof Side, Outer No.2 Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61213-02090 |
— | ||
|
61245
|
61245
61245-02210
Reinforcement, Roof Side Rail, Outer Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61245-02210 |
— | ||
|
61305
|
61305
61305-02130
Reinforce Sub-Assy, Center Body Pillar, Lower Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61305-02130 |
— | ||
|
61311B
|
61311B
61311-02290
Pillar, Center Body, Outer Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61311-02290 |
— | ||
|
61403C
|
61403C
61403-02180
Reinforce Sub-Assy, Rocker, Outer Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61403-02180 |
— | ||
|
61603C
|
61603C
61603-12600 Panel Sub-Assy, Quarter Wheel House, Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61603-12600 |
US $39.17 |
||
|
61611
|
61611
61601-02400
Panel, Quarter, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61601-02400 |
— | ||
|
61621D
|
61621D
61621-02200
Trough, Back Door Opening, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61621-02200 |
— | ||
|
61631A
|
61631A
61605-02120
Panel, Quarter Wheel House, Outer Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61605-02120 |
— | ||
|
61633A
|
61633A
61633-02906
Panel, Quarter Wheel House, Inner Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61633-02906 |
— | ||
|
61697D
|
61697D
61697-02100
Housing, Quarter Panel End, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61697-02100 |
— | ||
|
61711
|
61711
61711-02120
Panel, Roof Side, Outer Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61711-02120 |
— | ||
|
61731B
|
61731B
61731-02270
Panel, Roof Side, Inner Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61731-02270 |
— | ||
|
61735A
|
61735A
61735-02170
Panel, Roof Side, Inner Rear Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61735-02170 |
— | ||
|
61824
|
61824
61824-02180
Plate, Noise Control, No.1
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP 50 X 50 |
61824-02180 |
— | ||
|
61824
|
61824
61824-12070 Plate, Noise Control, No.1[07.2016 -] NDE180,NRE180,ZRE18# (J),50 X 50 |
61824-12070 |
US $1.16 |
||
|
61824
|
61824
61824-52030 Plate, Noise Control, No.1NOISE CONTROL, NO.1 [06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP OD=40 |
61824-52030 |
US $2.04 |
||
|
61825A
|
61825A
61825-02020
Plate, Noise Control, No.2
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61825-02020 |
— | ||
|
61827A
|
61827A
61827-02030
Plate, Noise Control, No.4
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61827-02030 |
— | ||
|
61951
|
61951
61951-02070
Bracket, Side Trim, Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
61951-02070 |
— | ||
|
62554D
|
62554D
62554-02190
Pad, Pillar, No.4
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
62554-02190 |
— | ||
|
62623E
|
62623E
62623-02030
Pad, Quarter Wheel House, Inner Rear Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
62623-02030 |
— | ||
|
64304B
|
64304B
64304-02160
Reinforce Sub-Assy, Package Tray Bracket, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
64304-02160 |
— | ||
|
65631C
|
65631C
65631-02240
Plate, Rear Wheel House, Front Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
65631-02240 |
— | ||
|
90105W0009
|
90105W0009
90105-W0009
New Genuine Part
|
90105-W0009 |
— | ||
|
90178W0039
|
90178W0039
90178-W0039 New Genuine Part |
90178-W0039 |
US $0.73 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.82 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $1.23 |
||
|
9046707220
|
9046707220
90467-07220 Clip |
90467-07220 |
from US $1.28 |
