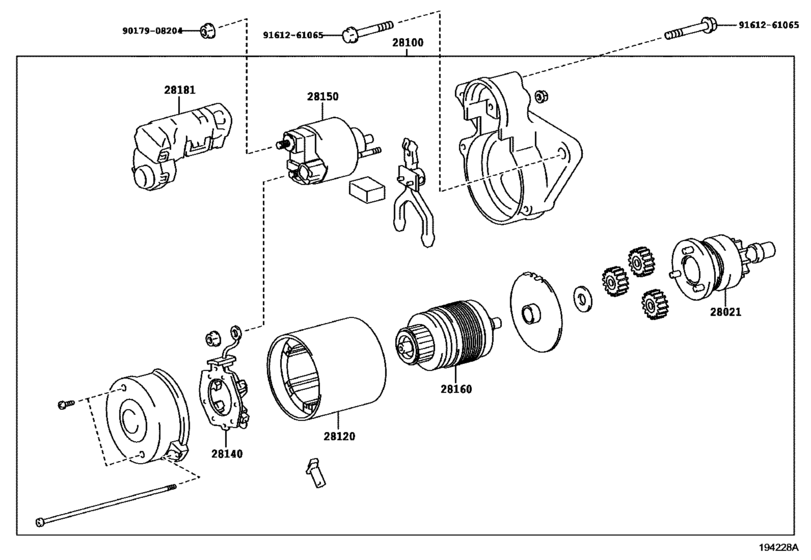

Starter ([01.2014 - ] 12V 1.6KW (1401- )1NDTV..SAP) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-33090 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
28021-33090 |
US $75.71 |
||
|
28100
|
28100
28100-0N060
Starter Assy
[01.2014 - 01.2017] 1NDTV..NDE180..SAP 12V 1.6KW |
28100-0N060 |
— | ||
|
28120
|
28120
28120-33110
Yoke Assy, Starter
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
28120-33110 |
— | ||
|
28140
|
28140
28140-37050 Holder Assy, Starter BrushSTARTER BRUSH [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
28140-37050 |
US $29.19 |
||
|
28150
|
28150
28150-37020 Switch Assy, Magnet Starter[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
28150-37020 |
US $99.27 |
||
|
28160
|
28160
28160-33090
Armature Assy, Starter
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
28160-33090 |
— | ||
|
28181
|
28181
28181-33010 Terminal, StarterSTARTER [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
28181-33010 |
US $31.30 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
