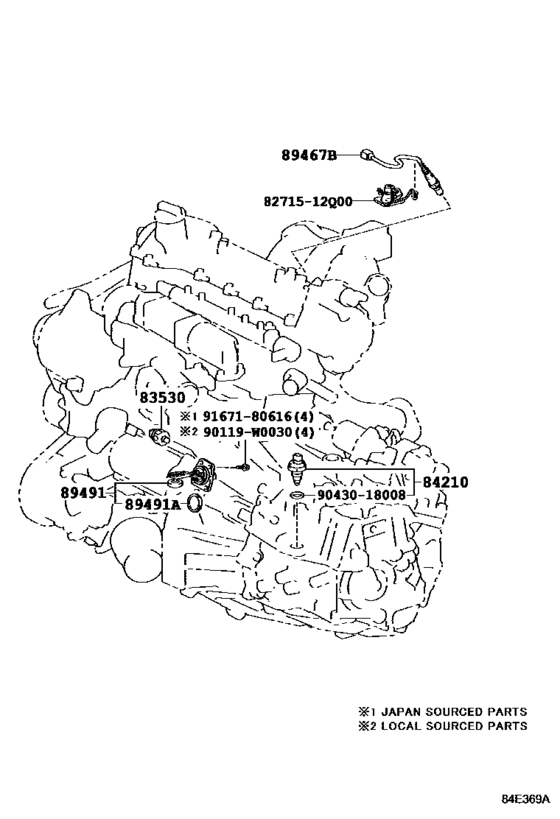

Switch & Relay & Computer ([06.2013 - ] ENGINE & TRANSMISSION (1306- )NDE180) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[06.2013 - 01.2017] NDE180..SAP DENSO |
83530-28010 |
US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[06.2013 - 01.2017] NDE180..SAP DENSO |
83530-60010 |
from US $24.20 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[06.2013 - 01.2017] NDE180..SAP YAZAKI |
83530-60010 |
from US $24.20 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..6F..SAP |
84210-52050 |
from US $20.67 |
||
|
89467B
|
89467B
89467-02080
Sensor, Air Fuel Ratio
[06.2013 - 05.2015] NDE180 (L) |
89467-02080 |
— | ||
|
89467B
|
89467B
89467-12130 Sensor, Air Fuel Ratio[06.2013 - 05.2015] NDE180 (J) |
89467-12130 |
US $147.06 |
||
|
89491
|
89491
89491-52031
Sensor, Engine Oil Level
[06.2013 - 01.2017] NDE180..SAP |
89491-52031 |
— | ||
|
89491A
|
89491A
90430-36005 Gasket, Engine Oil Level Sensor[06.2013 - 01.2017] NDE180..SAP |
90430-36005 |
US $1.54 |
||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— | ||
|
8271512Q00
|
8271512Q00
82715-12Q00 Bracket,wiring Harness Clamp |
82715-12Q00 |
US $12.08 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
