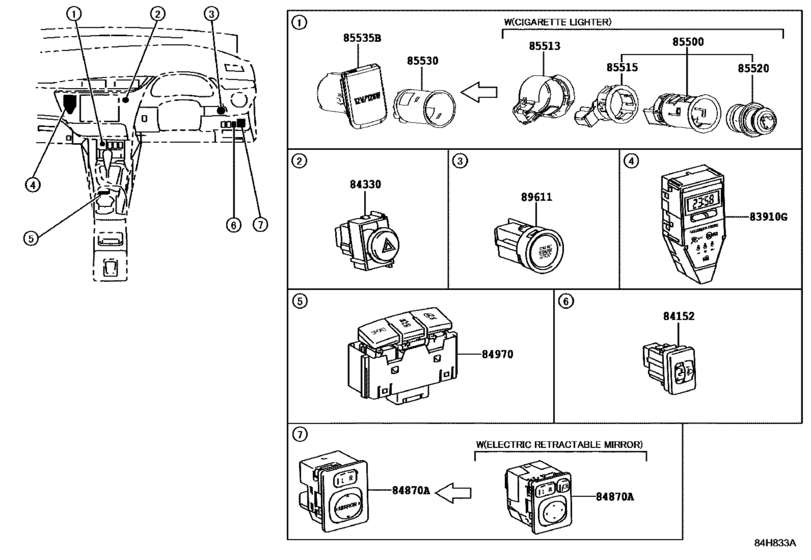

Switch & Relay & Computer ([01.2017 - ] INSTRUMENT PANEL (1701- )SA) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-02200
Clock Assy
[01.2017 -] NDE180,NRE180,ZRE18#..SA |
83910-02200 |
— | ||
|
83910G
|
83910G
83910-12630
Clock Assy
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
83910-12630 |
— | ||
|
84152
|
84152
84152-02080
Switch, Headlamp Leveling
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
84152-02080 |
— | ||
|
84330
|
84330
84332-02220
Switch Assy, Hazard Warning Signal
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
84332-02220 |
— | ||
|
84330
|
84330
84332-02300
Switch Assy, Hazard Warning Signal
[06.2016 -] NDE180,NRE180,ZRE18# |
84332-02300 |
— | ||
|
84870A
|
84870A
84870-12240
Switch Assy, Outer Mirror
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
84870-12240 |
— | ||
|
85500
|
85500
85500-59015
Lighter Assy, Cigarette
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH |
85500-59015 |
— | ||
|
85513
|
85513
85513-12030
Cover, Cigarette Lighter
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH |
85513-12030 |
— | ||
|
85515
|
85515
85515-12140
Stay, Cigarette Lighter Bezel
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH |
85515-12140 |
— | ||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH |
85520-28010 |
from US $17.80 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP; NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH |
85530-42010 |
from US $26.60 |
||
|
85535B
|
85535B
85535-12090-C0
Cover, Power Outlet Socket, No.1
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2#; NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH,BLACK,TRIM2# |
85535-12090-C0 |
— | ||
|
85535B
|
85535B
85535-50020 Cover, Power Outlet Socket, No.1[06.2016 -] NDE180,NRE180,ZRE18#; NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY |
85535-50020 |
from US $6.01 |
