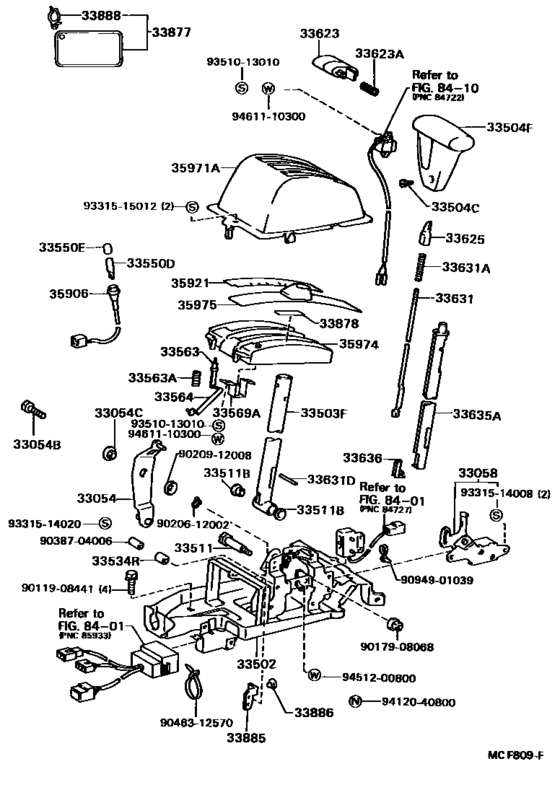

Shift Lever & Retainer ([05.1988 - ] (8805- )4FC) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33054
|
33054
33054-16020 Lever Sub-Assy, Shift, No.2(For Floor Shift)[05.1988 - 09.1990] EL3#,NL30..ATM |
33054-16020 |
US $18.64 |
||
|
33054B
|
33054B
90119-08606 Bolt(For Shift Lever No.2)[05.1988 - 09.1990] EL3#,NL30..ATM |
90119-08606 |
US $1.89 |
||
|
33054C
|
33054C
90386-12029 Bush(For Shift Lever No.2)[05.1988 - 09.1990] EL3#,NL30..ATM |
90386-12029 |
US $1.46 |
||
|
33058
|
33058
33058-16010 Bracket Sub-Assy, Shift Lock Solenoid[05.1988 - 09.1990] EL3#,NL30..ATM |
33058-16010 |
US $57.95 |
||
|
33502
|
33502
33502-16131 Plate Sub-Assy, Shift Lever[05.1988 - 09.1990] EL3#,NL30..ATM |
33502-16131 |
US $80.08 |
||
|
33503F
|
33503F
33503-16211 Lever Sub-Assy, Shift(For Floor Shift)[05.1988 - 09.1990] EL31,NL30..4FC |
33503-16211 |
US $74.26 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[05.1988 - 09.1990] EL3#,NL30..ATM |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-20080-01 Knob Sub-Assy, Shift Lever[05.1988 - 09.1990] EL31,NL30..4FC BLACK,TRIM2# |
33542-20080-01 |
US $65.96 |
||
| replacement | |||||
|
33504F
|
33504F
33542-20081-B1 Knob Sub-Assy, Shift Lever[05.1988 - 09.1990] EL31,NL30..4FC BLACK,TRIM2# |
33542-20081-B1 |
US $69.54 |
||
|
33504F
|
33504F
33542-20080-14 Knob Sub-Assy, Shift Lever[05.1988 - 09.1990] EL31,NL30..4FC BLUE,TRIM8# |
33542-20080-14 |
US $65.96 |
||
| replacement | |||||
|
33504F
|
33504F
33542-20081-B1 Knob Sub-Assy, Shift Lever[05.1988 - 09.1990] EL31,NL30..4FC BLUE,TRIM8# |
33542-20081-B1 |
US $69.54 |
||
|
33511
|
33511
33511-20240
Shaft, Control (For Floor Shift)
[05.1988 - 09.1990] EL3#,NL30..ATM |
33511-20240 |
— | ||
|
33511B
|
33511B
90386-11010 Bush (For Control Shaft)[05.1988 - 09.1990] EL3#,NL30..ATM |
90386-11010 |
US $2.62 |
||
|
33534R
|
33534R
90540-06030 Cushion (For Selecting Bellcrank No.1)[05.1988 - 09.1990] EL3#,NL30..ATM |
90540-06030 |
US $2.62 |
||
|
33550D
|
33550D
90981-11030
Bulb, Position Indicator Lamp
[05.1988 - 09.1990] EL3#,NL30..ATM １４Ｖ １．１２Ｗ |
90981-11030 |
— | ||
|
33550E
|
33550E
90339-04023 Cap, Position Indicator Lamp[05.1988 - 09.1990] EL3#,NL30..ATM |
90339-04023 |
US $3.84 |
||
|
33563
|
33563
33563-16010 Button, Shift Lock Release[05.1988 - 09.1990] EL3#,NL30..ATM |
33563-16010 |
US $5.82 |
||
|
33563A
|
33563A
90501-07043 Spring, Compression (For Shift Lock Release Button)[05.1988 - 09.1990] EL3#,NL30..ATM |
90501-07043 |
US $2.33 |
||
|
33564
|
33564
33564-16010 Link, Shift Lock Release, No.1[05.1988 - 09.1990] EL3#,NL30..ATM |
33564-16010 |
US $5.97 |
||
|
33569A
|
33569A
33569-16010 Guide, Shift Lock Release Button[05.1988 - 09.1990] EL3#,NL30..ATM |
33569-16010 |
US $5.82 |
||
|
33623
|
33623
33623-20020-01 Button, Shift Lever Knob[05.1988 - 09.1990] EL31,NL30..4FC BLACK,TRIM2# |
33623-20020-01 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-20020-C0 Button, Shift Lever Knob[05.1988 - 09.1990] EL31,NL30..4FC BLACK,TRIM2# |
33623-20020-C0 |
US $31.60 |
||
|
33623
|
33623
33623-20020-14 Button, Shift Lever Knob[05.1988 - 09.1990] EL31,NL30..4FC BLUE,TRIM8# |
33623-20020-14 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-20020-C0 Button, Shift Lever Knob[05.1988 - 09.1990] EL31,NL30..4FC BLUE,TRIM8# |
33623-20020-C0 |
US $31.60 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[05.1988 - 09.1990] EL3#,NL30..ATM |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-24010 Sleeve, Shift Lever Knob[05.1988 - 09.1990] EL31,NL30..4FC |
33625-24010 |
US $6.46 |
||
|
33631
|
33631
33631-10060 Rod, Detent[05.1988 - 09.1990] EL31,NL30..4FC |
33631-10060 |
US $14.56 |
||
|
33631A
|
33631A
90501-07074 Spring, Compression (For Detent Rod)[05.1988 - 09.1990] EL31,NL30..4FC |
90501-07074 |
US $0.79 |
||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[05.1988 - 09.1990] EL3#,NL30..ATM |
90256-04003 |
US $2.97 |
||
|
33635A
|
33635A
33635-16020 Guide, Wire, No.1 (For Shift Lever)[05.1988 - 09.1990] EL31,NL30..4FC |
33635-16020 |
US $13.40 |
||
|
33636
|
33636
33636-35010 Protector, Wire[05.1988 - 09.1990] EL31,NL30..4FC |
33636-35010 |
US $2.56 |
||
|
33877
|
33877
33877-16010
Label, Shift Lock Information, No.1
[05.1988 - 09.1990] EL3#,NL30..ATM |
33877-16010 |
— | ||
|
33878
|
33878
33878-16010
Label, Shift Lock Information, No.2
[05.1988 - 09.1990] EL3#,NL30..ATM |
33878-16010 |
— | ||
|
33885
|
33885
33885-16020 Bracket, Shift Lever Stopper[05.1988 - 09.1990] EL31,NL30..4FC |
33885-16020 |
US $7.43 |
||
|
33886
|
33886
33886-16010 Stopper, Shift Lever[05.1988 - 09.1990] EL3#,NL30..ATM |
33886-16010 |
US $1.35 |
||
|
33888
|
33888
33888-16010 Clamp, Shift Lock Information Label[01.1989 - 09.1990] EL3#,NL30..ATM |
33888-16010 |
US $3.93 |
||
|
35906
|
35906
35906-16041 Wire Sub-Assy, Indicator Lamp[05.1988 - 09.1990] EL3#,NL30..ATM |
35906-16041 |
US $16.89 |
||
|
35921
|
35921
35921-16101 Plate, Control Position Indicator[05.1988 - 09.1990] EL3#,NL30..ATM |
35921-16101 |
US $31.16 |
||
|
35971A
|
35971A
35971-16051-01 Housing, Position Indicator, Upper[05.1988 - 09.1990] EL3#,NL30..ATM NEW BLACK,TRIM2# |
35971-16051-01 |
US $33.92 |
||
|
35971A
|
35971A
35971-16051-04 Housing, Position Indicator, Upper[05.1988 - 09.1990] EL3#,NL30..ATM BLUE,TRIM8# |
35971-16051-04 |
US $33.92 |
||
| replacement | |||||
|
35971A
|
35971A
35971-16051-01 Housing, Position Indicator, Upper[05.1988 - 09.1990] EL3#,NL30..ATM BLUE,TRIM8# |
35971-16051-01 |
US $33.92 |
||
|
35974
|
35974
35974-16051 Housing, Position Indicator, Lower[05.1988 - 09.1990] EL3#,NL30..ATM |
35974-16051 |
US $26.21 |
||
|
35975
|
35975
35975-16060 Cover, Slide (For Position Indicator)[05.1988 - 09.1990] EL31,NL30..4FC |
35975-16060 |
US $19.66 |
||
|
9011908441
|
9011908441
90119-08441 New Genuine Part |
90119-08441 |
US $1.79 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.74 |
||
|
9020612002
|
9020612002
90206-12002 Washer, Wave (For Control Link Shaft) |
90206-12002 |
US $1.75 |
||
|
9020912008
|
9020912008
90209-12008 New Genuine Part |
90209-12008 |
US $1.75 |
||
|
9038704006
|
9038704006
90387-04006 New Genuine Part |
90387-04006 |
US $2.62 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9094901039
|
9094901039
90949-01039 CLAMP |
90949-01039 |
US $1.60 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.16 |
||
|
9331514020
|
9331514020
93315-14020
New Genuine Part
|
93315-14020 |
— | ||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.76 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
