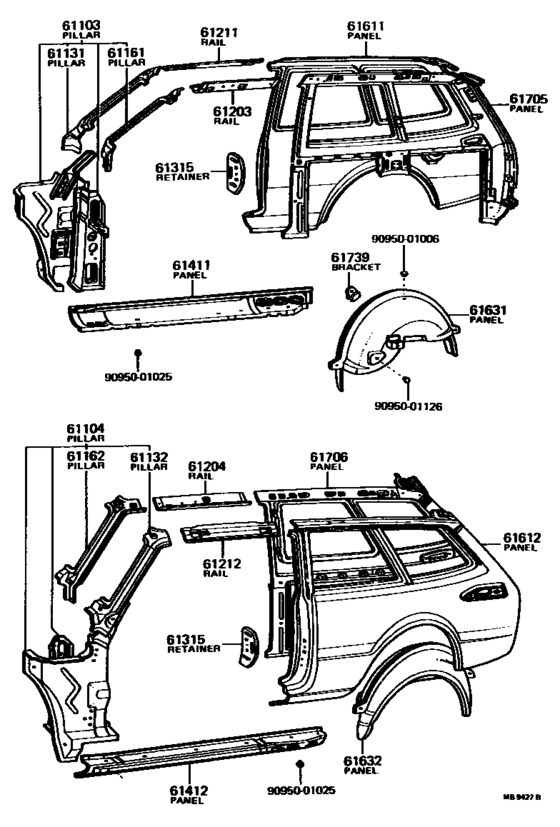

Side Member ([08.1974 - 08.1976] (7408-7608)TE38..2D) Diagram Toyota COROLLA
- Year
- 1974 - 1976
- Sales region
- U.S.A.
- Frame
- TE38
- grade
- DLX
- body
- 2DW
- ENGINE
- 2TC
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1974
- To
- 08.1976
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Transmission Model
- T40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61103
|
61103
61103-12180
Pillar Sub-Assy, Front Body, Rh
[08.1974 - 01.1977] KE30,TE31,38 |
61103-12180 |
— | ||
|
61104
|
61104
61104-12190 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [08.1974 - 01.1977] KE30,TE31,38 |
61104-12190 |
US $323.23 |
||
| replacement | |||||
|
61104
|
61104
61104-12090
Pillar Sub-Assy, Front Body, Lh
[08.1974 - 01.1977] KE30,TE31,38 |
61104-12090 |
— | ||
|
61131
|
61131
61131-12070
Pillar, Front Body, Upper Outer Rh
[08.1974 - 08.1979] KE30,TE31,38 |
61131-12070 |
— | ||
|
61132
|
61132
61132-12070
Pillar, Front Body, Upper Outer Lh
[08.1974 - 08.1979] KE30,TE31,38 |
61132-12070 |
— | ||
|
61161
|
61161
61161-12050
Pillar, Front Body, Upper Inner Rh
[08.1974 - 08.1979] KE30,TE31,38 |
61161-12050 |
— | ||
|
61162
|
61162
61162-12050
Pillar, Front Body, Upper Inner Lh
[08.1974 - 08.1979] KE30,TE31,38 |
61162-12050 |
— | ||
|
61203
|
61203
61231-12080
Rail Sub-Assy, Roof Side, Inner Rh
[08.1974 - 01.1975] KE30,TE31,38..2D |
61231-12080 |
— | ||
|
61203
|
61203
61231-12110
Rail Sub-Assy, Roof Side, Inner Rh
[01.1975 - 08.1979] KE30,TE31,38..2D |
61231-12110 |
— | ||
|
61204
|
61204
61232-12080
Rail Sub-Assy, Roof Side, Inner Lh
[08.1974 - 08.1979] KE30,TE31,38..2D |
61232-12080 |
— | ||
|
61211
|
61211
61211-12080
Rail, Roof Side, Outer Rh
[08.1974 - 08.1979] KE30,TE31,38..2D |
61211-12080 |
— | ||
|
61212
|
61212
61212-12080
Rail, Roof Side, Outer Lh
[08.1974 - 08.1979] KE30,TE31,38..2D |
61212-12080 |
— | ||
|
61315
|
61315
61309-20010 Retainer, Door Lock Striker PlateDOOR LOCK STRIKER PLATE [08.1974 - 08.1979] KE30,TE31,38 |
61309-20010 |
US $13.40 |
||
|
61411
|
61411
61411-12130
Panel, Rocker, Outer Rh
[08.1976 - 01.1977] KE3#,TE31,37..2D |
61411-12130 |
— | ||
| replacements | |||||
|
61411
|
61411
61411-12131
Panel, Rocker, Outer Rh
[08.1976 - 01.1977] KE3#,TE31,37..2D |
61411-12131 |
— | ||
|
61411
|
61411
61418-12011
Reinforcement, Rocker Outer Panel
[08.1976 - 01.1977] KE3#,TE31,37..2D |
61418-12011 |
— | ||
|
61411
|
61411
61411-12901
Panel, Rocker, Outer Rh
[08.1974 - 08.1976] KE3#,TE3#..2D |
61411-12901 |
— | ||
| replacements | |||||
|
61411
|
61411
61411-12131
Panel, Rocker, Outer Rh
[08.1974 - 08.1976] KE3#,TE3#..2D |
61411-12131 |
— | ||
|
61411
|
61411
61418-12011
Reinforcement, Rocker Outer Panel
[08.1974 - 08.1976] KE3#,TE3#..2D |
61418-12011 |
— | ||
|
61412
|
61412
61412-12130 Panel, Rocker, Outer LhROCKER, OUTER LH [08.1976 - 01.1977] KE3#,TE31,37..2D |
61412-12130 |
US $199.47 |
||
| replacements | |||||
|
61412
|
61412
61412-12131
Panel, Rocker, Outer Lh
[08.1976 - 01.1977] KE3#,TE31,37..2D |
61412-12131 |
— | ||
|
61412
|
61412
61419-12011
Reinforcement, Rocker Outer Panel
[08.1976 - 01.1977] KE3#,TE31,37..2D |
61419-12011 |
— | ||
|
61412
|
61412
61412-12901
Panel, Rocker, Outer Lh
[08.1974 - 08.1976] KE3#,TE3#..2D |
61412-12901 |
— | ||
| replacements | |||||
|
61412
|
61412
61412-12131
Panel, Rocker, Outer Lh
[08.1974 - 08.1976] KE3#,TE3#..2D |
61412-12131 |
— | ||
|
61412
|
61412
61419-12011
Reinforcement, Rocker Outer Panel
[08.1974 - 08.1976] KE3#,TE3#..2D |
61419-12011 |
— | ||
|
61611
|
61611
61601-13050 Panel, Quarter, Rh[08.1974 - 11.1975] TE38..2D |
61601-13050 |
US $586.77 |
||
| replacements | |||||
|
61611
|
61611
61601-13051
Panel, Quarter, Rh
[08.1974 - 11.1975] TE38..2D |
61601-13051 |
— | ||
|
61611
|
61611
62951-19177
Louver Assy, Roof Side Vent, Rh
[08.1974 - 11.1975] TE38..2D |
62951-19177 |
— | ||
|
61611
|
61611
62951-19195 Louver Assy, Roof Side Vent, Rh[08.1974 - 11.1975] TE38..2D |
62951-19195 |
US $64.36 |
||
|
61611
|
61611
61601-13051
Panel, Quarter, Rh
[11.1975 - 08.1976] TE38..2D |
61601-13051 |
— | ||
|
61612
|
61612
61602-13050
Panel, Quarter, Lh
[08.1974 - 08.1976] TE38..2D |
61602-13050 |
— | ||
|
61631
|
61631
61603-13040
Panel, Quarter Wheel House, Rh
[08.1974 - 08.1979] TE38 |
61603-13040 |
— | ||
|
61632
|
61632
61604-13040
Panel, Quarter Wheel House, Lh
[08.1974 - 08.1979] TE38 |
61604-13040 |
— | ||
|
61705
|
61705
61705-13120 Panel Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [08.1974 - 01.1975] TE38..2D |
61705-13120 |
US $564.93 |
||
| replacements | |||||
|
61705
|
61705
61705-13300
Panel Sub-Assy, Roof Side, Inner Rh
[08.1974 - 01.1975] TE38..2D |
61705-13300 |
— | ||
|
61705
|
61705
62951-19156
Louver Assy, Roof Side Vent, Rh
[08.1974 - 01.1975] TE38..2D |
62951-19156 |
— | ||
|
61705
|
61705
62951-19167
Louver, Vent, Inner Rh
[08.1974 - 01.1975] TE38..2D |
62951-19167 |
— | ||
|
61705
|
61705
62951-19177
Louver Assy, Roof Side Vent, Rh
[08.1974 - 01.1975] TE38..2D |
62951-19177 |
— | ||
|
61705
|
61705
62951-19185 Louver, Vent, Inner Rh[08.1974 - 01.1975] TE38..2D |
62951-19185 |
US $59.26 |
||
|
61705
|
61705
62951-19195 Louver Assy, Roof Side Vent, Rh[08.1974 - 01.1975] TE38..2D |
62951-19195 |
US $64.36 |
||
|
61705
|
61705
61705-13151 Panel Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [01.1975 - 11.1975] TE38..2D |
61705-13151 |
US $465.92 |
||
| replacements | |||||
|
61705
|
61705
61705-13300
Panel Sub-Assy, Roof Side, Inner Rh
[01.1975 - 11.1975] TE38..2D |
61705-13300 |
— | ||
|
61705
|
61705
62951-19156
Louver Assy, Roof Side Vent, Rh
[01.1975 - 11.1975] TE38..2D |
62951-19156 |
— | ||
|
61705
|
61705
62951-19177
Louver Assy, Roof Side Vent, Rh
[01.1975 - 11.1975] TE38..2D |
62951-19177 |
— | ||
|
61705
|
61705
62951-19195 Louver Assy, Roof Side Vent, Rh[01.1975 - 11.1975] TE38..2D |
62951-19195 |
US $64.36 |
||
|
61705
|
61705
61705-13152 Panel Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [11.1975 - 08.1976] TE38..2D |
61705-13152 |
US $529.98 |
||
| replacement | |||||
|
61705
|
61705
61705-13300
Panel Sub-Assy, Roof Side, Inner Rh
[11.1975 - 08.1976] TE38..2D |
61705-13300 |
— | ||
|
61706
|
61706
61706-13120 Panel Sub-Assy, Roof Side, Inner LhROOF SIDE, INNER LH [08.1974 - 01.1975] TE38..2D |
61706-13120 |
US $714.90 |
||
| replacement | |||||
|
61706
|
61706
61706-13350
Panel Sub-Assy, Roof Side, Inner Lh
[08.1974 - 01.1975] TE38..2D |
61706-13350 |
— | ||
|
61706
|
61706
61706-13150 Panel Sub-Assy, Roof Side, Inner Lh[08.1974 - 01.1975] TE38..2D FOR REAR WINDOW WIPER |
61706-13150 |
US $748.38 |
||
| replacement | |||||
|
61706
|
61706
61706-13350
Panel Sub-Assy, Roof Side, Inner Lh
[08.1974 - 01.1975] TE38..2D FOR REAR WINDOW WIPER |
61706-13350 |
— | ||
|
61706
|
61706
61706-13171
Panel Sub-Assy, Roof Side, Inner Lh
[01.1975 - 08.1975] TE38..2D |
61706-13171 |
— | ||
| replacement | |||||
|
61706
|
61706
61706-13350
Panel Sub-Assy, Roof Side, Inner Lh
[01.1975 - 08.1975] TE38..2D |
61706-13350 |
— | ||
|
61706
|
61706
61706-13191 Panel Sub-Assy, Roof Side, Inner Lh[01.1975 - 02.1976] TE38..2D FOR REAR WINDOW WIPER |
61706-13191 |
US $522.70 |
||
| replacement | |||||
|
61706
|
61706
61706-13350
Panel Sub-Assy, Roof Side, Inner Lh
[01.1975 - 02.1976] TE38..2D FOR REAR WINDOW WIPER |
61706-13350 |
— | ||
|
61706
|
61706
61706-13220
Panel Sub-Assy, Roof Side, Inner Lh
[08.1975 - 08.1976] TE38..2D |
61706-13220 |
— | ||
| replacement | |||||
|
61706
|
61706
61706-13350
Panel Sub-Assy, Roof Side, Inner Lh
[08.1975 - 08.1976] TE38..2D |
61706-13350 |
— | ||
|
61739
|
61739
61753-13010
Bracket, Rear Body Inside Trim
[08.1974 - 08.1976] TE38..2D |
61753-13010 |
— | ||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
