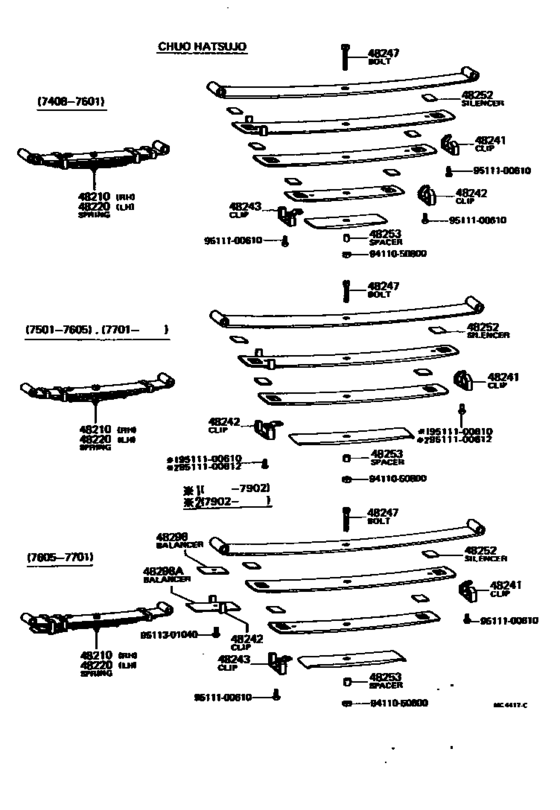

Rear Spring & Shock Absorber ([08.1974 - 08.1979] (7408-7908)TE38) Diagram Toyota COROLLA
- Year
- 1974 - 1979
- Sales region
- U.S.A.
- Frame
- TE38
- grade
- DLX
- body
- 4DW
- ENGINE
- 2TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 11.1974
- To
- 08.1979
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Transmission Model
- T50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-13090
Spring Assy, Rear Rh
[08.1974 - 01.1975] TE38 |
48210-13090 |
— | ||
|
48210
|
48210
48210-13091 Spring Assy, Rear RhREAR RH [01.1975 - 05.1976] TE38 |
48210-13091 |
US $330.51 |
||
|
48210
|
48210
48210-13092
Spring Assy, Rear Rh
[05.1976 - 01.1977] TE38 |
48210-13092 |
— | ||
|
48210
|
48210
48210-13093
Spring Assy, Rear Rh
[02.1979 - 08.1979] TE38 |
48210-13093 |
— | ||
|
48220
|
48220
48210-13090
Spring Assy, Rear Rh
[08.1974 - 01.1975] TE38 |
48210-13090 |
— | ||
|
48220
|
48220
48210-13091 Spring Assy, Rear RhREAR RH [01.1975 - 05.1976] TE38 |
48210-13091 |
US $330.51 |
||
|
48220
|
48220
48210-13092
Spring Assy, Rear Rh
[05.1976 - 01.1977] TE38 |
48210-13092 |
— | ||
|
48220
|
48220
48210-13093
Spring Assy, Rear Rh
[02.1979 - 08.1979] TE38 |
48210-13093 |
— | ||
|
48241
|
48241
48241-10060 Clip, Rear Spring, No.1REAR SPRING, NO.1 [08.1974 - 01.1975] TE3#..DLX,STD NIHON HATSUJO |
48241-10060 |
US $7.72 |
||
| replacement | |||||
|
48241
|
48241
48242-10060 Clip, Rear Spring, No.1REAR SPRING, NO.1 [08.1974 - 01.1975] TE3#..DLX,STD NIHON HATSUJO |
48242-10060 |
US $6.55 |
||
|
48241
|
48241
48241-22010 Clip, Rear Spring, No.1[05.1976 - 01.1977] TE38 CHUO HATSUJO |
48241-22010 |
US $9.03 |
||
|
48241
|
48241
48242-10060 Clip, Rear Spring, No.1REAR SPRING, NO.1 [05.1976 - 01.1977] TE38 NIHON HATSUJO |
48242-10060 |
US $6.55 |
||
|
48242
|
48242
48241-10070 Clip, Rear Spring, No.1REAR SPRING, NO.1 [08.1974 - 01.1975] TE38 NIHON HATSUJO |
48241-10070 |
US $7.86 |
||
| replacement | |||||
|
48242
|
48242
48242-10060 Clip, Rear Spring, No.1REAR SPRING, NO.1 [08.1974 - 01.1975] TE38 NIHON HATSUJO |
48242-10060 |
US $6.55 |
||
|
48242
|
48242
48241-12120
Clip, Rear Spring, No.2
[01.1975 - 04.1976] TE3#..DLX,STD NIHON HATSUJO |
48241-12120 |
— | ||
|
48242
|
48242
48241-13102
Clip, Rear Spring, No.2
[05.1976 - 01.1977] TE38 NIHON HATSUJO |
48241-13102 |
— | ||
|
48242
|
48242
48242-12110
Clip, Rear Spring, No.2
[01.1975 - 05.1976] TE38 CHUO HATSUJO |
48242-12110 |
— | ||
|
48242
|
48242
48242-22010
Clip, Rear Spring, No.2
[08.1974 - 01.1975] TE38 CHUO HATSUJO |
48242-22010 |
— | ||
|
48242
|
48242
48243-13091
Clip, Rear Spring, No.2
[05.1976 - 01.1977] TE38 CHUO HATSUJO |
48243-13091 |
— | ||
|
48243
|
48243
48241-12120
Clip, Rear Spring, No.2
[05.1976 - 01.1977] TE38 NIHON HATSUJO |
48241-12120 |
— | ||
|
48243
|
48243
48241-13100
Clip, Rear Spring, No.3
[08.1974 - 01.1975] TE38 NIHON HATSUJO |
48241-13100 |
— | ||
|
48243
|
48243
48242-12110
Clip, Rear Spring, No.2
[05.1976 - 01.1977] TE38 CHUO HATSUJO |
48242-12110 |
— | ||
|
48243
|
48243
48242-13090
Clip, Rear Spring, No.3
[08.1974 - 01.1975] TE38 CHUO HATSUJO |
48242-13090 |
— | ||
|
48247
|
48247
48247-12050 Bolt, Rear Spring, Center[01.1975 - 05.1976] TE38 NIHON HATSUJO |
48247-12050 |
US $4.66 |
||
| replacement | |||||
|
48247
|
48247
48247-12051 Bolt, Rear Spring, CenterREAR SPRING, CENTER [01.1975 - 05.1976] TE38 NIHON HATSUJO |
48247-12051 |
US $4.51 |
||
|
48247
|
48247
48247-12051 Bolt, Rear Spring, CenterREAR SPRING, CENTER [01.1977 - 08.1979] TE38 NIHON HATSUJO |
48247-12051 |
US $4.51 |
||
|
48247
|
48247
48247-12190
Bolt, Rear Spring, Center
[05.1976 - 01.1977] TE38 NIHON HATSUJO |
48247-12190 |
— | ||
|
48247
|
48247
48247-13100 Bolt, Rear Spring, CenterREAR SPRING, CENTER [08.1974 - 01.1975] TE38 NIHON HATSUJO |
48247-13100 |
US $5.68 |
||
| replacement | |||||
|
48247
|
48247
48247-13160 Bolt, Rear Spring, Center[08.1974 - 01.1975] TE38 NIHON HATSUJO |
48247-13160 |
US $4.95 |
||
|
48247
|
48247
48247-20100 Bolt, Rear Spring, CenterREAR SPRING, CENTER [01.1975 - 08.1979] TE38 CHUO HATSUJO |
48247-20100 |
US $5.53 |
||
|
48247
|
48247
48247-20130 Bolt, Rear Spring, Center[08.1974 - 01.1975] KE3#,TE3#..DLX,STD CHUO HATSUJO |
48247-20130 |
US $4.95 |
||
|
48252
|
48252
48252-22020 Silencer, Rear Spring[01.1975 - 08.1979] TE38 CHUO HATSUJO |
48252-22020 |
US $4.68 |
||
|
48252
|
48252
48253-23030 Spacer, Rear Spring LeafREAR SPRING LEAF [01.1975 - 08.1979] TE38 NIHON HATSUJO |
48253-23030 |
US $3.06 |
||
| replacement | |||||
|
48252
|
48252
48252-21150 Silencer, Rear Spring[01.1975 - 08.1979] TE38 NIHON HATSUJO |
48252-21150 |
US $7.72 |
||
|
48253
|
48253
48253-20100
Spacer, Rear Spring, No.1
[08.1974 - 08.1979] KE3#,50,TE3#,51 CHUO HATSUJO |
48253-20100 |
— | ||
|
48253
|
48253
48254-10050 Spacer, Rear Spring, No.1REAR SPRING, NO.1 [08.1974 - 04.1976] TE3#..DLX,STD NIHON HATSUJO |
48254-10050 |
US $3.20 |
||
|
48298
|
48298
48254-13090
Balancer, Rear Spring, No.1
[05.1976 - 01.1977] TE38 CHUO HATSUJO |
48254-13090 |
— | ||
|
48298
|
48298
48298-13102
Balancer, Rear Spring, No.1
[05.1976 - 01.1977] TE38 NIHON HATSUJO |
48298-13102 |
— | ||
|
48298A
|
48298A
48255-13090
Balancer, Rear Spring, No.2
[05.1976 - 01.1977] TE38 |
48255-13090 |
— | ||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9511100610
|
9511100610
95111-00610 New Genuine Part |
95111-00610 |
US $2.48 |
||
|
9511100612
|
9511100612
95111-00612
New Genuine Part
|
95111-00612 |
— | ||
|
9511301040
|
9511301040
95113-01040
New Genuine Part
|
95113-01040 |
— | ||
