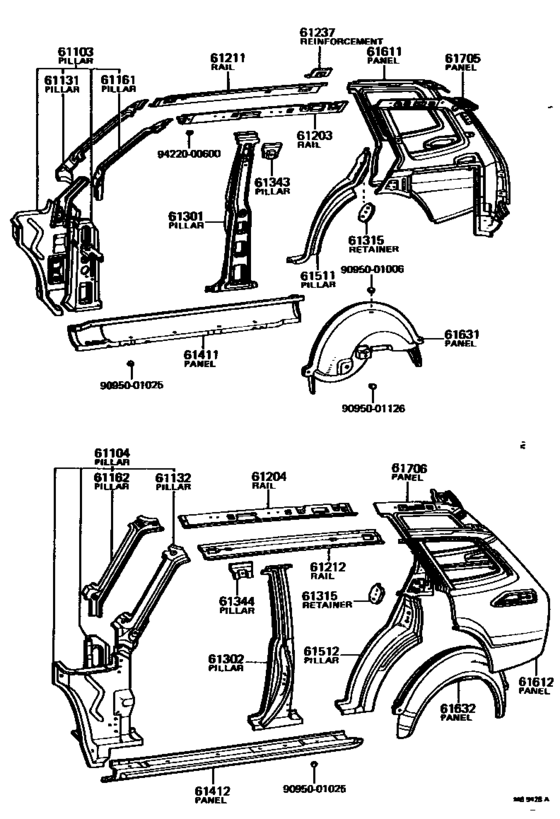

Side Member ([08.1974 - 08.1979] (7408-7908)TE38..4D) Diagram Toyota COROLLA
- Year
- 1974 - 1979
- Sales region
- U.S.A.
- Frame
- TE38
- grade
- DLX
- body
- 4DW
- ENGINE
- 2TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 11.1974
- To
- 08.1979
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Transmission Model
- T50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61103
|
61103
61021-12110
Pillar Sub-Assy, Front Body, Rh
[08.1978 - 08.1979] KE30,TE31,38 |
61021-12110 |
— | ||
|
61103
|
61103
61103-12180
Pillar Sub-Assy, Front Body, Rh
[08.1974 - 01.1977] KE30,TE31,38 |
61103-12180 |
— | ||
|
61103
|
61103
61103-12181
Pillar Sub-Assy, Front Body, Rh
[01.1977 - 08.1978] KE30,TE31,38 |
61103-12181 |
— | ||
| replacement | |||||
|
61103
|
61103
61021-12110
Pillar Sub-Assy, Front Body, Rh
[01.1977 - 08.1978] KE30,TE31,38 |
61021-12110 |
— | ||
|
61104
|
61104
61022-12130 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [08.1978 - 08.1979] KE30,TE31,38 |
61022-12130 |
US $608.61 |
||
|
61104
|
61104
61104-12190 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [08.1974 - 01.1977] KE30,TE31,38 |
61104-12190 |
US $323.23 |
||
| replacement | |||||
|
61104
|
61104
61104-12090
Pillar Sub-Assy, Front Body, Lh
[08.1974 - 01.1977] KE30,TE31,38 |
61104-12090 |
— | ||
|
61104
|
61104
61104-12191
Pillar Sub-Assy, Front Body, Lh
[01.1977 - 08.1978] KE30,TE31,38 |
61104-12191 |
— | ||
| replacement | |||||
|
61104
|
61104
61022-12130 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [01.1977 - 08.1978] KE30,TE31,38 |
61022-12130 |
US $608.61 |
||
|
61131
|
61131
61131-12070
Pillar, Front Body, Upper Outer Rh
[08.1974 - 08.1979] KE30,TE31,38 |
61131-12070 |
— | ||
|
61132
|
61132
61132-12070
Pillar, Front Body, Upper Outer Lh
[08.1974 - 08.1979] KE30,TE31,38 |
61132-12070 |
— | ||
|
61161
|
61161
61161-12050
Pillar, Front Body, Upper Inner Rh
[08.1974 - 08.1979] KE30,TE31,38 |
61161-12050 |
— | ||
|
61162
|
61162
61162-12050
Pillar, Front Body, Upper Inner Lh
[08.1974 - 08.1979] KE30,TE31,38 |
61162-12050 |
— | ||
|
61203
|
61203
61231-13020
Rail Sub-Assy, Roof Side, Inner Rh
[08.1974 - 05.1975] TE38..USA |
61231-13020 |
— | ||
|
61203
|
61203
61231-13021
Rail Sub-Assy, Roof Side, Inner Rh
[05.1975 - 08.1979] TE38..4D |
61231-13021 |
— | ||
|
61204
|
61204
61232-13020
Rail Sub-Assy, Roof Side, Inner Lh
[08.1974 - 05.1975] TE38..USA |
61232-13020 |
— | ||
|
61204
|
61204
61232-13021
Rail Sub-Assy, Roof Side, Inner Lh
[05.1975 - 08.1979] TE38..4D |
61232-13021 |
— | ||
|
61211
|
61211
61211-13020
Rail, Roof Side, Outer Rh
[08.1974 - 05.1975] TE38..USA |
61211-13020 |
— | ||
|
61211
|
61211
61211-13021
Rail, Roof Side, Outer Rh
[05.1975 - 08.1979] TE38..4D |
61211-13021 |
— | ||
|
61212
|
61212
61212-13020
Rail, Roof Side, Outer Lh
[08.1974 - 05.1975] TE38..USA |
61212-13020 |
— | ||
|
61212
|
61212
61212-13021
Rail, Roof Side, Outer Lh
[05.1975 - 08.1979] TE38..4D |
61212-13021 |
— | ||
|
61237
|
61237
61237-13020
Reinforcement, Safety Band Anchorage
[08.1974 - 05.1975] TE38..USA RH. |
61237-13020 |
— | ||
|
61237
|
61237
61237-13021
Reinforcement, Safety Band Anchorage
[05.1975 - 08.1979] TE38..4D RH. |
61237-13021 |
— | ||
|
61237
|
61237
61238-13020
Reinforcement, Safety Band Anchorage
[08.1974 - 05.1975] TE38..USA LH. |
61238-13020 |
— | ||
|
61237
|
61237
61238-13021
Reinforcement, Safety Band Anchorage
[05.1975 - 08.1979] TE38..4D LH. |
61238-13021 |
— | ||
|
61301
|
61301
61301-12030
Pillar Sub-Assy, Center Body, Rh
[08.1974 - 05.1975] KE30,TE31,38..4D |
61301-12030 |
— | ||
|
61301
|
61301
61301-12050 Pillar Sub-Assy, Center Body, RhCENTER BODY, RH [05.1975 - 08.1979] KE30,TE31,38..4D |
61301-12050 |
US $425.15 |
||
|
61302
|
61302
61302-12050
Pillar Sub-Assy, Center Body, Lh
[08.1974 - 05.1975] KE30,TE31,38..4D |
61302-12050 |
— | ||
|
61302
|
61302
61302-12080 Pillar Sub-Assy, Center Body, LhCENTER BODY, LH [05.1975 - 08.1979] KE30,TE31,38..4D |
61302-12080 |
US $425.15 |
||
|
61315
|
61315
61309-20010 Retainer, Door Lock Striker PlateDOOR LOCK STRIKER PLATE [08.1974 - 08.1979] KE30,TE31,38 |
61309-20010 |
US $13.40 |
||
|
61343
|
61343
61341-13010
Pillar, Center Body, Inner Upper Rh
[08.1974 - 08.1979] TE38..4D |
61341-13010 |
— | ||
|
61344
|
61344
61342-13010
Pillar, Center Body, Inner Upper Lh
[08.1974 - 08.1979] TE38..4D |
61342-13010 |
— | ||
|
61411
|
61411
61411-12140
Panel, Rocker, Outer Rh
[08.1976 - 08.1979] KE30,TE31,38..4D |
61411-12140 |
— | ||
|
61411
|
61411
61411-12902 Panel, Rocker, Outer RhROCKER, OUTER RH [08.1974 - 08.1976] KE30,TE31,38..4D |
61411-12902 |
US $289.74 |
||
| replacement | |||||
|
61411
|
61411
61411-12140
Panel, Rocker, Outer Rh
[08.1974 - 08.1976] KE30,TE31,38..4D |
61411-12140 |
— | ||
|
61412
|
61412
61412-12140
Panel, Rocker, Outer Lh
[08.1976 - 08.1979] KE30,TE31,38..4D |
61412-12140 |
— | ||
|
61412
|
61412
61412-12902 Panel, Rocker, Outer LhROCKER, OUTER LH [08.1974 - 08.1976] KE30,TE31,38..4D |
61412-12902 |
US $289.74 |
||
| replacement | |||||
|
61412
|
61412
61412-12140
Panel, Rocker, Outer Lh
[08.1974 - 08.1976] KE30,TE31,38..4D |
61412-12140 |
— | ||
|
61511
|
61511
61511-12030
Pillar, Quarter Lock, Rh
[08.1974 - 08.1979] KE30,TE31,38..4D |
61511-12030 |
— | ||
|
61512
|
61512
61512-12030
Pillar, Quarter Lock, Lh
[08.1974 - 08.1979] KE30,TE31,38..4D |
61512-12030 |
— | ||
|
61611
|
61611
61601-13902 Panel, Quarter, Rh[08.1974 - 11.1975] TE38..USA |
61601-13902 |
US $529.98 |
||
| replacements | |||||
|
61611
|
61611
61601-13903
Panel, Quarter, Rh
[08.1974 - 11.1975] TE38..USA |
61601-13903 |
— | ||
|
61611
|
61611
62951-19177
Louver Assy, Roof Side Vent, Rh
[08.1974 - 11.1975] TE38..USA |
62951-19177 |
— | ||
|
61611
|
61611
62951-19195 Louver Assy, Roof Side Vent, Rh[08.1974 - 11.1975] TE38..USA |
62951-19195 |
US $64.36 |
||
|
61611
|
61611
61601-13903
Panel, Quarter, Rh
[11.1975 - 08.1979] TE38..4D |
61601-13903 |
— | ||
|
61612
|
61612
61602-13902
Panel, Quarter, Lh
[08.1974 - 08.1979] TE38..4D |
61602-13902 |
— | ||
|
61631
|
61631
61603-13040
Panel, Quarter Wheel House, Rh
[08.1974 - 08.1979] TE38 |
61603-13040 |
— | ||
|
61632
|
61632
61604-13040
Panel, Quarter Wheel House, Lh
[08.1974 - 08.1979] TE38 |
61604-13040 |
— | ||
|
61705
|
61705
61705-13130 Panel Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [08.1974 - 01.1975] TE38..USA |
61705-13130 |
US $305.76 |
||
| replacements | |||||
|
61705
|
61705
61705-13290
Panel Sub-Assy, Roof Side, Inner Rh
[08.1974 - 01.1975] TE38..USA |
61705-13290 |
— | ||
|
61705
|
61705
62951-19156
Louver Assy, Roof Side Vent, Rh
[08.1974 - 01.1975] TE38..USA |
62951-19156 |
— | ||
|
61705
|
61705
62951-19167
Louver, Vent, Inner Rh
[08.1974 - 01.1975] TE38..USA |
62951-19167 |
— | ||
|
61705
|
61705
62951-19177
Louver Assy, Roof Side Vent, Rh
[08.1974 - 01.1975] TE38..USA |
62951-19177 |
— | ||
|
61705
|
61705
62951-19185 Louver, Vent, Inner Rh[08.1974 - 01.1975] TE38..USA |
62951-19185 |
US $59.26 |
||
|
61705
|
61705
62951-19195 Louver Assy, Roof Side Vent, Rh[08.1974 - 01.1975] TE38..USA |
62951-19195 |
US $64.36 |
||
|
61705
|
61705
61705-13160 Panel Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [01.1975 - 11.1975] TE38..USA |
61705-13160 |
US $305.76 |
||
| replacements | |||||
|
61705
|
61705
61705-13290
Panel Sub-Assy, Roof Side, Inner Rh
[01.1975 - 11.1975] TE38..USA |
61705-13290 |
— | ||
|
61705
|
61705
62951-19156
Louver Assy, Roof Side Vent, Rh
[01.1975 - 11.1975] TE38..USA |
62951-19156 |
— | ||
|
61705
|
61705
62951-19177
Louver Assy, Roof Side Vent, Rh
[01.1975 - 11.1975] TE38..USA |
62951-19177 |
— | ||
|
61705
|
61705
62951-19195 Louver Assy, Roof Side Vent, Rh[01.1975 - 11.1975] TE38..USA |
62951-19195 |
US $64.36 |
||
|
61705
|
61705
61705-13161 Panel Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [11.1975 - 08.1979] TE38..4D |
61705-13161 |
US $384.38 |
||
| replacement | |||||
|
61705
|
61705
61705-13290
Panel Sub-Assy, Roof Side, Inner Rh
[11.1975 - 08.1979] TE38..4D |
61705-13290 |
— | ||
|
61706
|
61706
61706-13130 Panel Sub-Assy, Roof Side, Inner LhROOF SIDE, INNER LH [08.1974 - 01.1975] TE38..USA |
61706-13130 |
US $381.47 |
||
| replacement | |||||
|
61706
|
61706
61706-13340
Panel Sub-Assy, Roof Side, Inner Lh
[08.1974 - 01.1975] TE38..USA |
61706-13340 |
— | ||
|
61706
|
61706
61706-13160 Panel Sub-Assy, Roof Side, Inner Lh[08.1974 - 01.1975] TE38..USA FOR REAR WINDOW WIPER |
61706-13160 |
US $400.40 |
||
| replacement | |||||
|
61706
|
61706
61706-13340
Panel Sub-Assy, Roof Side, Inner Lh
[08.1974 - 01.1975] TE38..USA FOR REAR WINDOW WIPER |
61706-13340 |
— | ||
|
61706
|
61706
61706-13180
Panel Sub-Assy, Roof Side, Inner Lh
[01.1975 - 08.1975] TE38..USA |
61706-13180 |
— | ||
| replacement | |||||
|
61706
|
61706
61706-13340
Panel Sub-Assy, Roof Side, Inner Lh
[01.1975 - 08.1975] TE38..USA |
61706-13340 |
— | ||
|
61706
|
61706
61706-13200 Panel Sub-Assy, Roof Side, Inner Lh[01.1975 - 08.1979] TE38..4D FOR REAR WINDOW WIPER |
61706-13200 |
US $474.66 |
||
| replacement | |||||
|
61706
|
61706
61706-13340
Panel Sub-Assy, Roof Side, Inner Lh
[01.1975 - 08.1979] TE38..4D FOR REAR WINDOW WIPER |
61706-13340 |
— | ||
|
61706
|
61706
61706-13230 Panel Sub-Assy, Roof Side, Inner LhROOF SIDE, INNER LH [08.1975 - 08.1979] TE38..4D |
61706-13230 |
US $534.35 |
||
| replacement | |||||
|
61706
|
61706
61706-13340
Panel Sub-Assy, Roof Side, Inner Lh
[08.1975 - 08.1979] TE38..4D |
61706-13340 |
— | ||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9422000600
|
9422000600
94220-00600 New Genuine Part |
94220-00600 |
US $1.02 |
||
