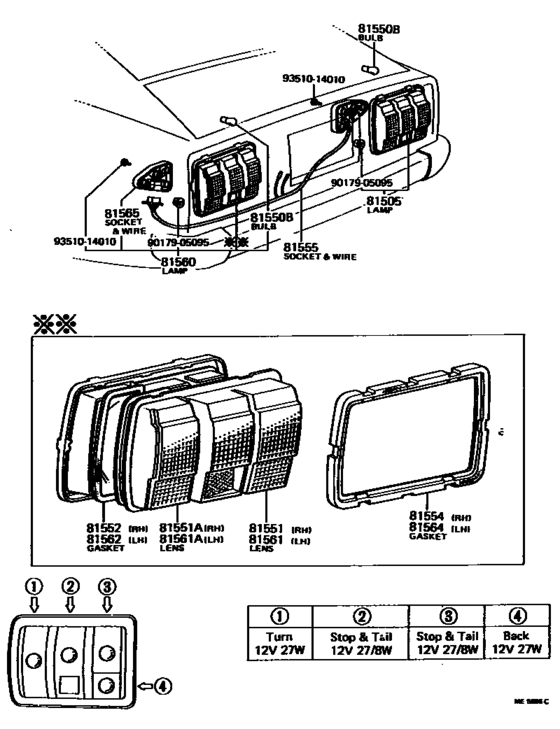

Rear Combination Lamp ([01.1977 - 08.1979] (7701-7908)CP) Diagram Toyota COROLLA
- Year
- 1977 - 1979
- Sales region
- U.S.A.
- Frame
- TE51
- grade
- DLX
- body
- CP
- ENGINE
- 2TC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1977
- To
- 08.1979
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Transmission Model
- A40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-19165
Lamp Sub-Assy, Rear Combination, Rh
[01.1977 - 08.1979] TE51..CP AMBER-RED-CLEAR |
81505-19165 |
— | ||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1974 - 08.1979] KE3#,50,TE3#,51 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1974 - 08.1979] KE3#,50,TE3#,51 12V 27/8W,12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-12350 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [03.1976 - 08.1979] TE51..CP RED-CLEAR |
81551-12350 |
US $59.99 |
||
|
81551A
|
81551A
81557-12350 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [03.1976 - 08.1979] TE51..CP AMBER |
81557-12350 |
US $24.02 |
||
|
81552
|
81552
81554-12350
Gasket, Rear Combination Lamp Lens, Rh
[03.1976 - 08.1979] TE51..CP |
81554-12350 |
— | ||
|
81554
|
81554
81552-12350
Gasket, Rear Combination Lamp Body, Rh
[03.1976 - 08.1979] TE51..CP |
81552-12350 |
— | ||
|
81555
|
81555
81555-12461
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1977 - 08.1979] TE51..CP |
81555-12461 |
— | ||
|
81560
|
81560
81560-19835
Lamp Assy, Rear Combination, Lh
[03.1976 - 08.1979] TE51..CP AMBER-RED-CLEAR |
81560-19835 |
— | ||
|
81561
|
81561
81561-12350 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [03.1976 - 08.1979] TE51..CP RED-CLEAR |
81561-12350 |
US $59.99 |
||
|
81561A
|
81561A
81567-12350 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [03.1976 - 08.1979] TE51..CP AMBER |
81567-12350 |
US $25.33 |
||
|
81562
|
81562
81554-12350
Gasket, Rear Combination Lamp Lens, Rh
[03.1976 - 08.1979] TE51..CP |
81554-12350 |
— | ||
|
81564
|
81564
81562-12350
Gasket, Rear Combination Lamp Body, Lh
[03.1976 - 08.1979] TE51..CP |
81562-12350 |
— | ||
|
81565
|
81565
81565-12460
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[03.1976 - 08.1979] TE51..CP |
81565-12460 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9351014010
|
9351014010
93510-14010 New Genuine Part |
93510-14010 |
US $1.31 |
||
