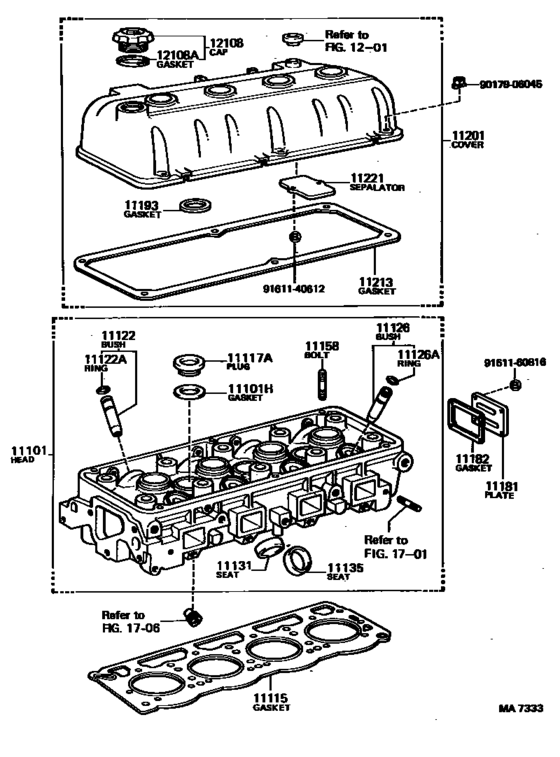

Cylinder Head ([08.1979 - 08.1980] (7908-8008)12TJ,13TU) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- TE70
- grade
- GL
- body
- SED
- ENGINE
- 13TU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-19095 Head Sub-Assy, Cylinder[08.1979 - 08.1980] 12TJ,13TU..TE70,73 |
11101-19095 |
US $1,361.36 |
||
| replacement | |||||
|
11101
|
11101
11101-18010 Head Sub-Assy, Cylinder[08.1979 - 08.1980] 12TJ,13TU..TE70,73 |
11101-18010 |
US $1,064.34 |
||
|
11101
|
11101
11101-19096 Head Sub-Assy, Cylinder[08.1980 - 12.1982] 12TJ,13TU..TE70,73,74 |
11101-19096 |
US $1,499.68 |
||
| replacement | |||||
|
11101
|
11101
11101-18010 Head Sub-Assy, Cylinder[08.1980 - 12.1982] 12TJ,13TU..TE70,73,74 |
11101-18010 |
US $1,064.34 |
||
|
11101H
|
11101H
90430-24246 Gasket(For Cylinder Head Screw Plug)[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 OD=34 |
90430-24246 |
US $2.56 |
||
|
11115
|
11115
11115-26024
Gasket, Cylinder Head
[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 |
11115-26024 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-25040 Gasket, Cylinder Head[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 |
11115-25040 |
US $56.93 |
||
|
11117A
|
11117A
90341-24090 Plug, W/head Taper Screw, No.1[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 |
90341-24090 |
US $4.89 |
||
|
11122
|
11122
11122-25021 Bush, Intake Valve Guide[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 STD |
11122-25021 |
US $13.25 |
||
|
11122
|
11122
11123-25021 Bush, Intake Valve Guide[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 O/S 0.05 |
11123-25021 |
US $11.79 |
||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[03.1979 - 01.1985] 12TJ,13TU..TE70,73,74; 4K#,5KJ..KE7#; 1C..CE7# |
90520-12049 |
from US $2.72 |
||
|
11126
|
11126
11126-25021
Bush, Exhaust Valve Guide
[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 STD |
11126-25021 |
— | ||
|
11126
|
11126
11127-25021 Bush, Exhaust Valve Guide[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 O/S 0.05 |
11127-25021 |
US $11.94 |
||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[03.1979 - 01.1985] 12TJ,13TU..TE70,73,74; 4K#,5KJ..KE7#; 1C..CE7# |
90520-12049 |
from US $2.72 |
||
|
11131
|
11131
11131-25010
Seat, Intake Valve
[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 STD |
11131-25010 |
— | ||
|
11131
|
11131
11132-25010 Seat, Intake Valve[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 O/S 0.03 |
11132-25010 |
US $16.89 |
||
|
11135
|
11135
11135-25011
Seat, Exhaust Valve
[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 STD |
11135-25011 |
— | ||
|
11135
|
11135
11136-25011 Seat, Exhaust Valve[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 O/S 0.03 |
11136-25011 |
US $15.14 |
||
|
11158
|
11158
92122-40620
Bolt, Stud(For Head To Cylinder Head Cover)
[08.1979 - 08.1980] 12TJ,13TU..TE70,73 L=29,S=9&9 |
92122-40620 |
— | ||
|
11158
|
11158
92122-40625 Bolt, Stud(For Head To Cylinder Head Cover)[08.1980 - 08.1983] 12TJ,13TU..TE70,73,74 |
92122-40625 |
US $2.33 |
||
|
11181
|
11181
11181-25010
Plate, Cylinder Head, Rear
[08.1979 - 08.1983] 12TJ,13TU..TE70,73,74 |
11181-25010 |
— | ||
|
11182
|
11182
11182-25010
Gasket, Cylinder Head Rear Plate
[08.1979 - 01.1982] 12TJ,13TU..TE70,73,74 |
11182-25010 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-25012 Gasket, Cylinder Head Rear Plate[08.1979 - 01.1982] 12TJ,13TU..TE70,73,74 |
11182-25012 |
US $6.55 |
||
|
11193
|
11193
11193-25011
Gasket, Spark Plug Tube
[08.1979 - 09.1979] 12TJ,13TU..TE70,73 |
11193-25011 |
— | ||
| replacement | |||||
|
11193
|
11193
11193-25012 Gasket, Spark Plug Tube[08.1979 - 09.1979] 12TJ,13TU..TE70,73 |
11193-25012 |
from US $7.78 |
||
|
11193
|
11193
11193-25012 Gasket, Spark Plug Tube[09.1979 - 08.1983] 12TJ,13TU..TE70,73,74 |
11193-25012 |
from US $7.78 |
||
|
11201
|
11201
11201-29127
Cover Sub-Assy, Cylinder Head
[08.1979 - 08.1980] 12TJ,13TU..TE70,73 |
11201-29127 |
— | ||
|
11201
|
11201
11201-29128 Cover Sub-Assy, Cylinder Head[08.1980 - 08.1983] 12TJ,13TU..TE70,73,74 |
11201-29128 |
US $241.70 |
||
|
11213
|
11213
11213-25011 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [08.1979 - 08.1980] 12TJ,13TU..TE70,73 |
11213-25011 |
US $13.90 |
||
|
11213
|
11213
11213-25012 Gasket, Cylinder Head Cover[08.1980 - 08.1983] 12TJ,13TU..TE70,73,74 |
11213-25012 |
US $14.85 |
||
|
11221
|
11221
11221-25010
Separator, Cylinder Head Cover, No.1
[08.1979 - 08.1980] 12TJ,13TU..TE70,73 |
11221-25010 |
— | ||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[08.1979 - 04.1980] 12TJ,13TU..TE70,73; 3AU..AE70; 4K#..KE7# |
12180-13010 |
from US $16.11 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1979 - 04.1980] 12TJ,13TU..TE70,73; 3AU..AE70; 4K#..KE7# |
90430-37140 |
from US $1.21 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
