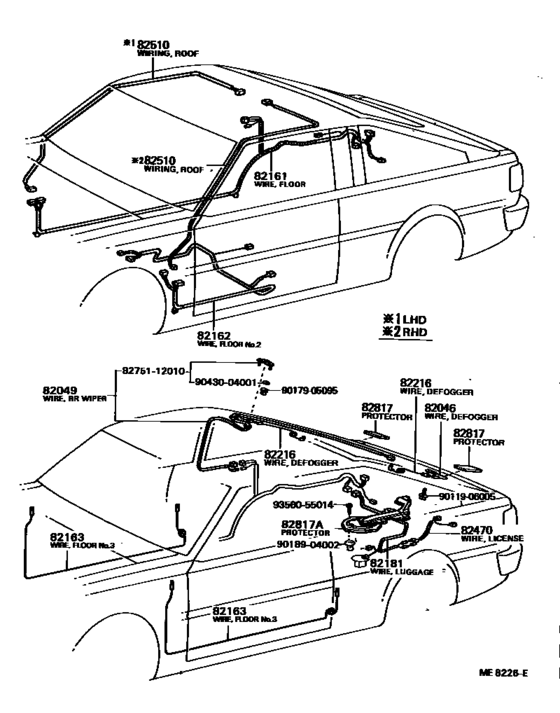

Wiring & Clamp ([08.1979 - 05.1983] (7908-8305)CP) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Europe
- Frame
- TE71
- grade
- DX
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82046
|
82046
82046-12140
Wire Sub-Assy, Rear Window Defogger Earth
[08.1979 - 06.1984] KE70,TE7#..CP,LB |
82046-12140 |
— | ||
|
82049
|
82049
82049-12030
Wiring Sub-Assy, Rear Wiper
[08.1979 - 05.1983] KE70,TE71..CP |
82049-12030 |
— | ||
|
82049
|
82049
82049-12040
Wiring Sub-Assy, Rear Wiper
[08.1979 - 05.1983] KE70,TE71..CP W/RR WIPER |
82049-12040 |
— | ||
|
82161
|
82161
82420-12400
Wire, Floor
[08.1981 - 06.1984] KE70,TE71..(CP,LB)..(GEN,SAA) |
82420-12400 |
— | ||
|
82161
|
82161
82420-12410
Wire, Floor
[08.1981 - 08.1983] KE70,TE7#..(CP,LB)..(ARL,GEN,SAA) W/RR WIPER |
82420-12410 |
— | ||
|
82161
|
82161
82420-12540
Wire, Floor
[08.1979 - 08.1981] KE70,TE7#..CP,LB |
82420-12540 |
— | ||
|
82162
|
82162
82162-12030
Wire, Floor, No.2
[08.1981 - 07.1987] TE71..MTM..(EUR,GEN,SAA);CE70,KE70,TE72..MTM..(DX,GL,STD,XL)..(EUR,GEN,SAA) |
82162-12030 |
— | ||
|
82162
|
82162
82215-12130
Wire, Floor, No.2
[08.1979 - 11.1979] KE70,TE7#..LHD..(3FC,4F,5F) |
82215-12130 |
— | ||
|
82162
|
82162
82215-12131
Wire, Floor, No.2
[11.1979 - 08.1981] KE70,TE7#..LHD..(3FC,4F,5F) |
82215-12131 |
— | ||
|
82181
|
82181
82181-12010
Wire, Luggage Room, No.1
[08.1981 - 05.1983] TE72..ARL; KE70..LB..LHD..GEN;KE70..SED..LHD..4D..GEN W/URETHANE BUMPER; TE71..3FC..2D..GEN;TE71..LHD..MTM..(DX,SR)..GEN W/URETHANE BUMPER; TE71..RHD..4F..2D..GEN;KE70..(CP,LB,SED)..RHD..GEN;TE71..(CP,LB,SED)..RHD..(3FC,5F )..GEN W/URE |
82181-12010 |
— | ||
|
82181
|
82181
82181-12020 Wire, Luggage Room, No.1LUGGAGE ROOM, NO.1 [08.1981 - 05.1983] TE71..(CP,LB,SED)..(EUR,GEN);CE70,KE70,TE72..(CP,LB,SED)..(DX,GL,STD)..(EUR,GEN) |
82181-12020 |
US $54.89 |
||
|
82181
|
82181
82412-12090
Wire, Luggage Room, No.1
[08.1979 - 08.1981] KE70,TE7#..CP,LB,SED |
82412-12090 |
— | ||
|
82216
|
82216
82216-12060
Wire, Rear Window Defogger
[08.1979 - 06.1984] KE70,TE7#..CP,LB |
82216-12060 |
— | ||
|
82470
|
82470
82470-12050
Wire Assy, License Lamp Feed
[08.1979 - 08.1981] KE70,TE7#..CP,LB,SED |
82470-12050 |
— | ||
|
82510
|
82510
82510-12200
Wiring Assy, Roof
[08.1979 - 05.1983] KE70,TE7#..(CP,LB)..LHD |
82510-12200 |
— | ||
|
82817
|
82817
82817-12400 Protector, Wiring Harness, No.1[08.1979 - 06.1984] KE70,TE7#..CP,LB 60X75 |
82817-12400 |
US $2.34 |
||
|
82817A
|
82817A
82817-12350 Protector, Wiring Harness, No.2WIRING HARNESS, NO.2 [08.1979 - 08.1981] KE70,TE7#..CP,LB,SED |
82817-12350 |
US $21.69 |
||
| replacement | |||||
|
82817A
|
82817A
82817-12410
Protector, Wiring Harness, No.2
[08.1979 - 08.1981] KE70,TE7#..CP,LB,SED |
82817-12410 |
— | ||
|
8275112010
|
8275112010
82751-12010
Block, Driver Side Relay
|
82751-12010 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9043004001
|
9043004001
90430-04001 New Genuine Part |
90430-04001 |
US $2.48 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.70 |
||
