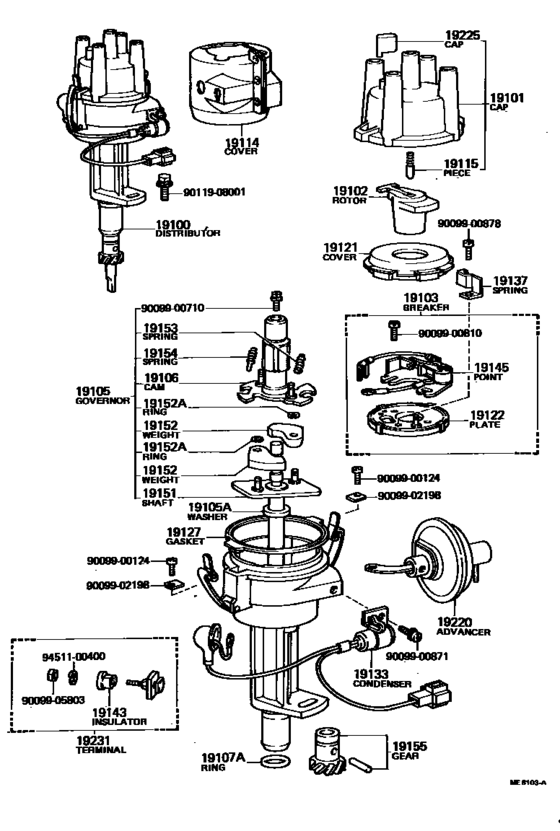

Distributor ([08.1979 - 05.1983] (7908-8305)2TG) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- TE71
- grade
- GT
- body
- CP
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-88224
Distributor Assy
[08.1979 - 05.1983] 2TG..TE71 |
19100-88224 |
— | ||
|
19101
|
19101
19101-25070 Cap Sub-Assy, Distributor[08.1979 - 08.1981] 2TG..TE71; 4KC..KE70 |
19101-25070 |
US $38.44 |
||
|
19102
|
19102
19102-26150
Rotor Sub-Assy, Distributor
[08.1979 - 08.1981] 2T#,3T#..TE7#; 4KC..KE70 |
19102-26150 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-26151 Rotor Sub-Assy, Distributor[08.1979 - 08.1981] 2T#,3T#..TE7#; 4KC..KE70 |
19102-26151 |
US $17.33 |
||
|
19103
|
19103
19103-88224 Breaker Sub-Assy, DistributorDISTRIBUTOR [08.1979 - 05.1983] 2TG..TE71 |
19103-88224 |
US $55.33 |
||
|
19105
|
19105
19105-88224
Governor Sub-Assy
[08.1979 - 05.1983] 2TG..TE71 |
19105-88224 |
— | ||
|
19105A
|
19105A
90099-01385
Washer(For Governor Shaft Thrust)
[08.1979 - 08.1981] 2T#,3T#..TE7# T=2.5,T=2.5; 4KC..KE70 T=2.5,T=2.5 |
90099-01385 |
— | ||
|
19105A
|
19105A
90099-01386
Washer(For Governor Shaft Thrust)
[08.1979 - 08.1981] 2T#,3T#..TE7# T=2.7,T=2.7; 4KC..KE70 T=2.7,T=2.7 |
90099-01386 |
— | ||
|
19105A
|
19105A
90099-01387
Washer(For Governor Shaft Thrust)
[08.1979 - 08.1981] 2T#,3T#..TE7# T=2.9,T=2.9; 4KC..KE70 T=2.9,T=2.9 |
90099-01387 |
— | ||
|
19105A
|
19105A
90099-01412
Washer(For Governor Shaft Thrust)
[08.1979 - 08.1981] 2T#,3T#..TE7# T=2.3,T=2.3; 4KC..KE70 T=2.3,T=2.3 |
90099-01412 |
— | ||
|
19106
|
19106
19106-38011 Cam Sub-Assy, DistributorDISTRIBUTOR [08.1979 - 08.1981] 2T#,3T..TE7# |
19106-38011 |
US $29.99 |
||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1979 - 07.1987] 4K#..KE70; 2T#,3T#..TE7# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1979 - 07.1987] 4K#..KE70; 2T#,3T#..TE7# |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1979 - 07.1987] 4A#..AE71; 4K#..KE70; 2T#,3T#..TE7# |
19115-50010 |
— | ||
|
19121
|
19121
19121-38030
Cover, Dust Proof
[08.1979 - 08.1981] 2TG..TE71; 4KC..KE70 |
19121-38030 |
— | ||
|
19122
|
19122
19122-88260
Plate, Stationary, Distributor
[08.1979 - 05.1983] 2TG..TE71 |
19122-88260 |
— | ||
|
19127
|
19127
19127-88251
Packing, Dust Proof
[08.1979 - 08.1981] 2TG..TE71; 4KC..KE70 |
19127-88251 |
— | ||
|
19133
|
19133
90099-52068 Condenser, DistributorDISTRIBUTOR [08.1979 - 05.1983] 2TG..TE71 |
90099-52068 |
from US $12.38 |
||
|
19137
|
19137
19137-33012
Spring Sub-Assy, Damper
[08.1979 - 08.1981] 2T#,3T#..TE7#; 4KC..KE70 |
19137-33012 |
— | ||
|
19143
|
19143
19143-25070
Insulator, Terminal
[08.1979 - 05.1983] 2TG..TE71 |
19143-25070 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[08.1979 - 08.1981] 2T#,3T#..TE7#; 4K..KE70 |
19145-26060 |
from US $13.30 |
||
|
19151
|
19151
19151-88260
Shaft, Governor
[08.1979 - 05.1983] 2TG..TE71 |
19151-88260 |
— | ||
|
19152
|
19152
19152-45060
Weight, Governor
[08.1979 - 07.1981] 4KC..KE70; 2T#,3T#..TE7# |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[08.1979 - 07.1981] 4KC..KE70; 2T#,3T#..TE7# |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07104
Ring, Snap(For Governor Weight)
[08.1979 - 08.1981] 2TG..TE71; 4KC..KE70 |
90099-07104 |
— | ||
|
19153
|
19153
19153-88224
Spring, Governor, A
[08.1979 - 05.1983] 2TG..TE71 |
19153-88224 |
— | ||
|
19154
|
19154
19154-88224
Spring, Governor, B
[08.1979 - 05.1983] 2TG..TE71 |
19154-88224 |
— | ||
|
19155
|
19155
19195-88220 Gear, Spiral, Distributor[08.1979 - 05.1983] 2TG..TE71 |
19195-88220 |
US $46.30 |
||
|
19220
|
19220
19220-88224
Advancer Assy, Vacuum, Distributor
[08.1979 - 05.1983] 2TG..TE71 |
19220-88224 |
— | ||
|
19225
|
19225
19225-25070
Cap, Rubber
[08.1979 - 08.1981] 2TG..TE71; 4KC..KE70 |
19225-25070 |
— | ||
|
19231
|
19231
19231-88260
Terminal, Distributor
[08.1979 - 05.1983] 2TG..TE71 |
19231-88260 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900810
|
9009900810
90099-00810
SCREW
|
90099-00810 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9011908001
|
9011908001
90119-08001 New Genuine Part |
90119-08001 |
US $2.56 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
