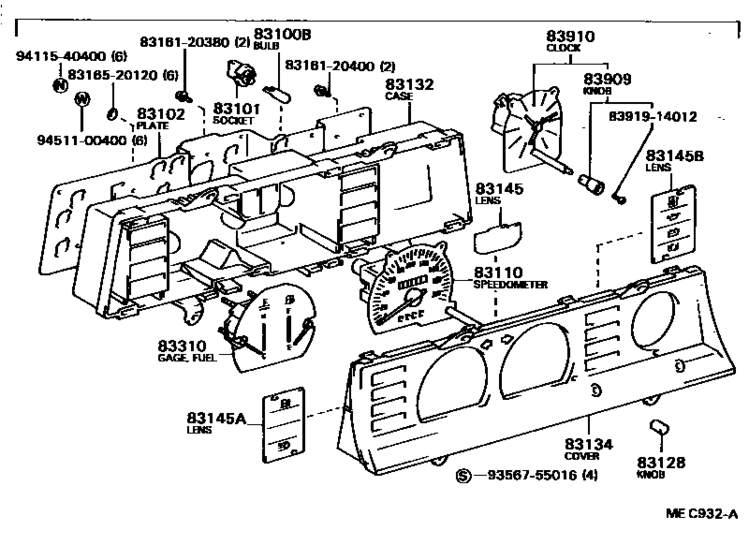

Meter ([09.1982 - 05.1983] (8209-8305)CP,LB..LHD..GEN,SAA) Diagram Toyota COROLLA
- Year
- 1979 - 1983
- Sales region
- General
- Frame
- TE71
- grade
- SR
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 05.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1979 - 08.1981] TE72..SDN;TE71..LB..DX..GEN 12V 1.2W W/O SOCKET; TE7#..GL,GT,SE,SR,XE 12V 1.2W W/O SOCKET; KE70..DX..SA;KE70..LB..RHD 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1979 - 08.1981] KE70,TE7# 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1979 - 08.1981] KE70,TE7# 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1981 - 07.1987] AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1979 - 08.1981] TE72..SDN;TE71..LB..DX..GEN 12V 1.4W; TE7#..GL,GT,SE,SR,XE 12V 1.4W; KE70..DX..SA;KE70..LB..RHD 12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83102
|
83102
83247-12660
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1979 - 08.1981] TE71..LB..LHD..GEN;TE71..LHD..(SR,XE); TE72..SDN W/TACHOMETER |
83247-12660 |
— | ||
|
83102
|
83102
83247-1A290
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1981 - 05.1983] TE71..CP..LHD..GEN; TE71..LHD..MTM..DX..GEN W/TACHOMETER |
83247-1A290 |
— | ||
|
83110
|
83110
83110-12802 Speedometer Assy[05.1983 - 02.1985] TE7# KM |
83110-12802 |
US $317.41 |
||
| replacement | |||||
|
83110
|
83110
83110-1A061 Speedometer Assy[05.1983 - 02.1985] TE7# KM |
83110-1A061 |
US $356.72 |
||
|
83110
|
83110
83110-12821
Speedometer Assy
[08.1979 - 08.1981] TE71..LB..LHD..GEN;TE71..LHD..(SR,XE) MILE & KM,W/TACHOMETER |
83110-12821 |
— | ||
|
83110
|
83110
83110-12831
Speedometer Assy
[08.1979 - 08.1981] TE72..SDN KM,W/TACHOMETER; TE71..LB..LHD..GEN;TE71..LHD..(SR,XE) KM,W/TACHOMETER |
83110-12831 |
— | ||
|
83110
|
83110
83110-12832 Speedometer Assy[08.1981 - 05.1983] TE72..EUR;TE71..LHD..MTM..(DX,SR)..GEN KM,W/TACHOMETER |
83110-12832 |
US $356.72 |
||
| replacement | |||||
|
83110
|
83110
83110-1A100
Speedometer Assy
[08.1981 - 05.1983] TE72..EUR;TE71..LHD..MTM..(DX,SR)..GEN KM,W/TACHOMETER |
83110-1A100 |
— | ||
|
83128
|
83128
83128-10260
Knob, Trip Counter
[08.1979 - 06.1984] KE70,TE7#..CP,LB |
83128-10260 |
— | ||
|
83132
|
83132
83132-12090
Case, Combination Meter
[08.1979 - 08.1981] TE72..SDN W/TACHOMETER; TE71..LB..LHD..GEN;TE71..LHD..(GT,SR,XE) W/TACHOMETER |
83132-12090 |
— | ||
|
83132
|
83132
83132-12390
Case, Combination Meter
[08.1981 - 05.1983] TE71..CP..GEN |
83132-12390 |
— | ||
|
83134
|
83134
83133-12190
Cover, Combination Meter, No.1
[08.1979 - 08.1981] TE72..SDN W/TACHOMETER; TE71..LB..LHD..GEN;TE71..LHD..(GT,SR,XE) W/TACHOMETER |
83133-12190 |
— | ||
|
83134
|
83134
83133-12510
Cover, Combination Meter, No.1
[08.1981 - 05.1983] TE71..GT,SR,XE; TE72..EUR;TE71..LHD..MTM..DX..GEN W/TACHOMETER |
83133-12510 |
— | ||
|
83310
|
83310
83243-12180 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1979 - 08.1981] TE72..SDN W/TACHOMETER; TE71..LB..LHD..GEN;TE71..LHD..(GT,SR,XE) W/TACHOMETER |
83243-12180 |
US $58.53 |
||
|
83310
|
83310
83243-12470 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1981 - 05.1983] TE71..LHD..(GT,SR,XE); TE72..EUR;TE71..LHD..MTM..DX..GEN W/TACHOMETER |
83243-12470 |
US $100.46 |
||
| replacement | |||||
|
83310
|
83310
83243-12450 Gage Assy, Fuel Receiver[08.1981 - 05.1983] TE71..LHD..(GT,SR,XE); TE72..EUR;TE71..LHD..MTM..DX..GEN W/TACHOMETER |
83243-12450 |
US $109.20 |
||
|
83909
|
83909
83909-12230
Knob, Clock
[02.1980 - 08.1981] KE70..LB..RHD DIGITAL TYPE,BLACK; TE7#..GT,SE,SR,XE DIGITAL TYPE,BLACK; TE72..SDN;TE71..LB..DX..GEN DIGITAL TYPE,BLACK; KE70..DX..SA;KE70,TE71..SED..RHD..GEN DIGITAL TYPE,BLACK |
83909-12230 |
— | ||
|
83909
|
83909
83909-22180 Knob, Clock[08.1981 - 05.1983] TE71..GT,SR,XE |
83909-22180 |
US $2.62 |
||
|
83909
|
83909
83909-30250 Knob, ClockCLOCK [08.1979 - 02.1980] KE70..LB..RHD DIGITAL TYPE,CHROME PLATED; TE7#..GT,SE,SR,XE DIGITAL TYPE,CHROME PLATED; TE72..SDN;TE71..LB..DX..GEN DIGITAL TYPE,CHROME PLATED; KE70,TE71..SED..RHD..GEN DIGITAL TYPE,CHROME PLATED |
83909-30250 |
US $6.12 |
||
| replacement | |||||
|
83909
|
83909
83909-12230
Knob, Clock
[08.1979 - 02.1980] KE70..LB..RHD DIGITAL TYPE,CHROME PLATED; TE7#..GT,SE,SR,XE DIGITAL TYPE,CHROME PLATED; TE72..SDN;TE71..LB..DX..GEN DIGITAL TYPE,CHROME PLATED; KE70,TE71..SED..RHD..GEN DIGITAL TYPE,CHROME PLATED |
83909-12230 |
— | ||
|
83910
|
83910
83910-12230
Clock Assy
[08.1979 - 08.1981] KE70..LB..RHD DIGITAL TYPE; TE7#..GT,SE,SR,XE DIGITAL TYPE; TE72..SDN;TE71..LB..DX..GEN DIGITAL TYPE |
83910-12230 |
— | ||
|
83910
|
83910
83910-12290
Clock Assy
[08.1981 - 05.1983] TE71..CP..GEN;TE71..(GT,SR,XE)..EUG;KE70..LB..LHD..5F..GEN DIGITAL TYPE |
83910-12290 |
— | ||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120400
|
8316120400
83161-20400
Case, Combination Meter Mirror, No.1
|
83161-20400 |
— | ||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
8391914012
|
8391914012
83919-14012
Screw, Thermometer
|
83919-14012 |
— | ||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
