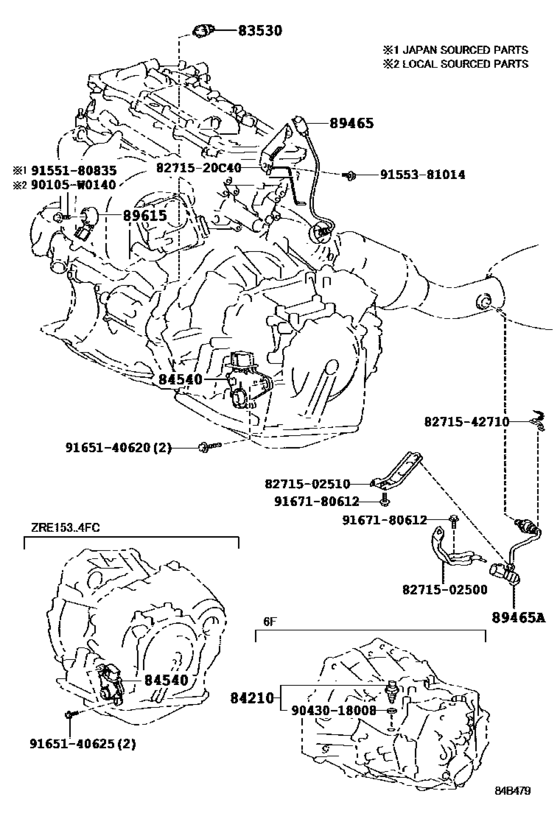

Switch & Relay & Computer ([02.2009 - ] ENGINE & TRANSMISSION (0902- )ZRE15#) Diagram Toyota COROLLA
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- ZRE151
- ENGINE
- 1ZRFE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-05010
Switch Assy, Oil Pressure (For Engine)
[02.2009 - 06.2010] NRE150,ZRE15# VALEO |
83530-05010 |
— | ||
|
83530
|
83530
83530-12050 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZRE15# |
83530-12050 |
US $29.27 |
||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZRE15# |
83530-12060 |
from US $25.82 |
||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[02.2014 - 04.2014] ZRE151 YAZAKI |
83530-12060 |
from US $25.82 |
||
|
83530
|
83530
83530-12070
Switch Assy, Oil Pressure (For Engine)
[02.2014 - 04.2014] ZRE151 DENSO |
83530-12070 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[02.2014 - 04.2014] ZRE151 DENSO |
83530-12060 |
from US $25.82 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[02.2009 - 06.2010] NRE150,ZRE15# DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2009 - 06.2010] NRE150,ZRE15# DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[02.2009 - 06.2010] NRE150,ZRE15# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2009 - 06.2010] NRE150,ZRE15# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15#..MTM |
84210-52050 |
from US $20.67 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2012 - 04.2014] NDE150,NRE150,ZRE151,152..6F |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-02310
Sensor, Oxygen
[02.2009 - 06.2010] ZRE151 |
89465-02310 |
— | ||
|
89465A
|
89465A
89465-02280
Sensor, Oxygen
[02.2009 - 06.2010] ZRE15# |
89465-02280 |
— | ||
|
89615
|
89615
89615-02020 Sensor, Knock Control[02.2009 - 06.2010] ZRE15# MARK 89615-02020 |
89615-02020 |
US $142.69 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[02.2009 - 06.2010] ZRE15# MARK 89615-20090; NRE150 |
89615-20090 |
from US $36.02 |
||
|
90105W0140
|
90105W0140
90105-W0140 New Genuine Part |
90105-W0140 |
US $1.02 |
||
|
8271520C40
|
8271520C40
82715-20C40
Bracket,wiring Harness Clamp
|
82715-20C40 |
— | ||
|
8271502500
|
8271502500
82715-02500 Bracket,wiring Harness Clamp |
82715-02500 |
US $7.28 |
||
|
8271502510
|
8271502510
82715-02510 Bracket,wiring Harness Clamp |
82715-02510 |
US $7.28 |
||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.86 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
