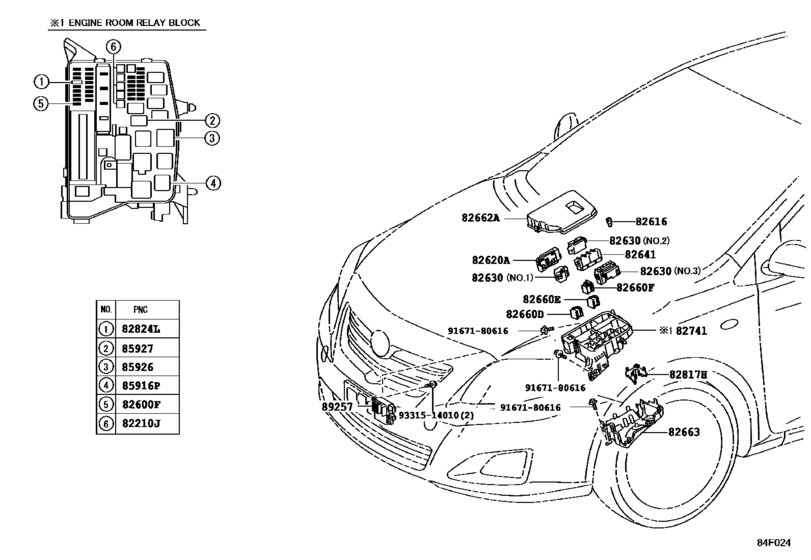

Switch & Relay & Computer ([04.2014 - ] ENGINE ROOM (1404- )) Diagram Toyota COROLLA
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- ZRE151
- ENGINE
- 1ZRFE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08294 Fusible Link[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-12280 Block Assy, Fusible Link[02.2009 - 06.2010] NRE150,ZRE15# |
82620-12280 |
US $30.55 |
||
|
82630
|
82630
82631-02010
Holder Assy, Fuse
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# NO.1 |
82631-02010 |
— | ||
|
82630
|
82630
82631-02020
Holder Assy, Fuse
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# NO.2 |
82631-02020 |
— | ||
|
82630
|
82630
82631-02030
Holder Assy, Fuse
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# NO.3 |
82631-02030 |
— | ||
|
82641
|
82641
82641-47020 Relay, Integration No.1[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
82641-47020 |
from US $79.92 |
||
|
82660D
|
82660D
82660-0H070 Block Assy, Relay[04.2014 -] ZRE151 |
82660-0H070 |
US $6.99 |
||
|
82660E
|
82660E
82660-26270 Block Assy, Relay, Engine Room[04.2014 -] ZRE151 |
82660-26270 |
US $8.48 |
||
|
82660F
|
82660F
82660-42030 Block Assy, Relay, Engine Room[04.2014 -] ZRE151 |
82660-42030 |
US $7.13 |
||
|
82662A
|
82662A
82662-12570 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [02.2009 - 06.2010] NRE150,ZRE15# |
82662-12570 |
US $28.83 |
||
|
82663
|
82663
82663-02050 Cover, Relay Block, LowerRELAY BLOCK, LOWER [02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
82663-02050 |
US $30.28 |
||
|
82741
|
82741
82741-02050 Block, Engine Room RelayENGINE ROOM RELAY [02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
82741-02050 |
US $65.52 |
||
|
82817H
|
82817H
82817-02450 Protector, Wiring HarnessWIRING HARNESS [02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# ENGINE ROOM R/B |
82817-02450 |
US $9.32 |
||
|
82817H
|
82817H
82817-12B50 Protector, Wiring Harness[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# INSTRUMENT PANEL J/B |
82817-12B50 |
US $6.26 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
82824-20140 |
US $3.32 |
||
|
85916P
|
85916P
90987-T2002 Relay, HeadlampHEADLAMP [02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
90987-T2002 |
US $51.66 |
||
|
85926
|
85926
90987-T2003
Relay Assy (For Heater Blower Motor)
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
90987-T2003 |
— | ||
|
85927
|
85927
90080-87021
Relay, Lamp Cut
[11.2011 - 04.2014] ZRE151..D..SA;ZRE151..LHD..D |
90080-87021 |
— | ||
|
85927
|
85927
90080-87027
Relay, Lamp Cut
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
90080-87027 |
— | ||
| replacement | |||||
|
85927
|
85927
90080-87021
Relay, Lamp Cut
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
90080-87021 |
— | ||
|
89257
|
89257
89257-12010
Computer, Cooling Fan
[04.2014 -] ZRE151..GEN; ZRE151..SA AFRICA SPEC |
89257-12010 |
— | ||
| replacement | |||||
|
89257
|
89257
89257-K0010 COMPUTER COOLING[04.2014 -] ZRE151..GEN; ZRE151..SA AFRICA SPEC |
89257-K0010 |
US $195.84 |
||
|
89257
|
89257
89257-12020 Computer, Cooling FanCOOLING FAN [02.2009 - 06.2010] NDE150;NRE150,ZRE15#..SA |
89257-12020 |
from US $195.84 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
