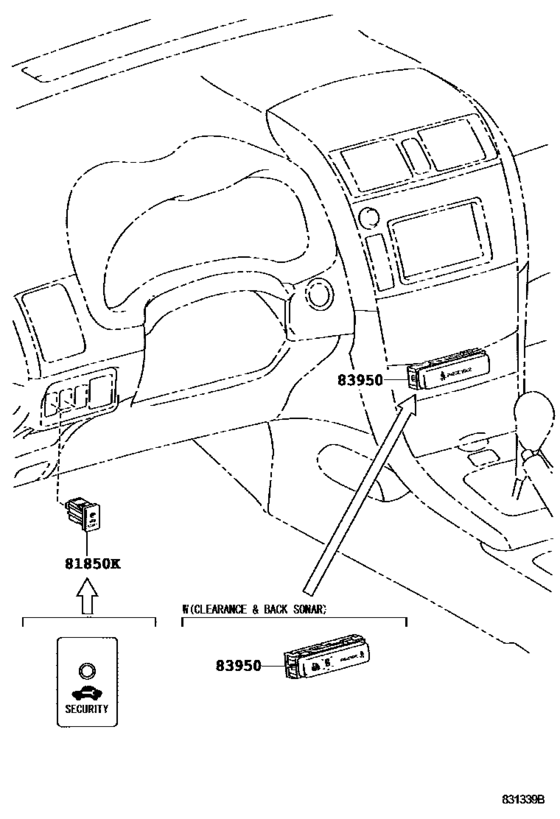

Indicator ([05.2007 - ] (0705- )) Diagram Toyota COROLLA
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- GLXS
- body
- SED
- ENGINE
- 2ZRFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 09.2010
- To
- 03.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81850K
|
81850K
81850-12280
Lamp Assy, Security Indicator
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
81850-12280 |
— | ||
|
83950
|
83950
83950-02070
Lamp Assy, Telltale
[09.2010 - 04.2011] ZRE152..6F..GLXI;ZRE152..CVFC..(GLXI,GLXS) A PACKAGE; ZRE152..GLXI B PACKAGE |
83950-02070 |
— | ||
|
83950
|
83950
83950-02080
Lamp Assy, Telltale
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
83950-02080 |
— |
