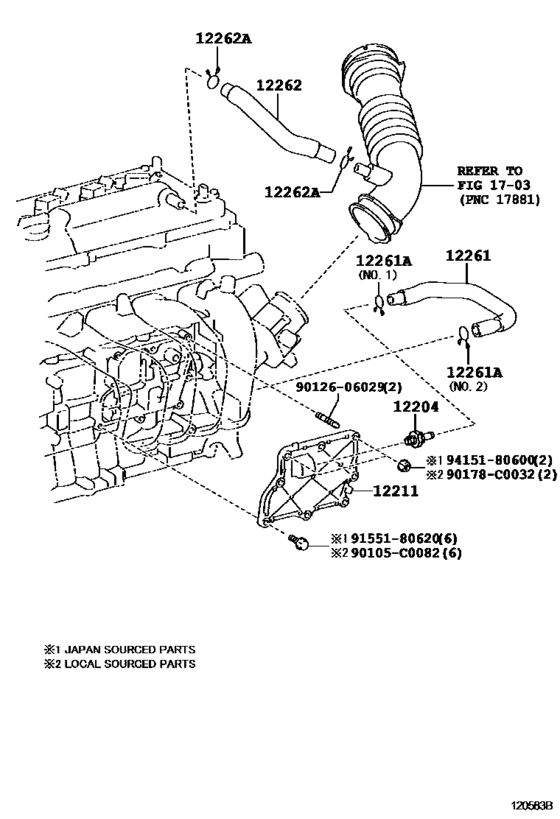

Ventilation Hose ([05.2007 - ] (0705- )) Diagram Toyota COROLLA
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- GLXS
- body
- SED
- ENGINE
- 2ZRFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 09.2010
- To
- 03.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-37010 Valve Sub-Assy, Ventilation[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS |
12204-37010 |
US $12.80 |
||
|
12211
|
12211
12211-37010 Case, Ventilation, No.1[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS |
12211-37010 |
US $48.78 |
||
|
12261
|
12261
12261-0T040
Hose, Ventilation
[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS (L) |
12261-0T040 |
— | ||
|
12261
|
12261
12261-37050 Hose, Ventilation[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS (J) |
12261-37050 |
from US $15.20 |
||
|
12261A
|
12261A
90467-15120 Clip Or Clamp(For Ventilation Hose)[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS NO.1 |
90467-15120 |
US $1.60 |
||
|
12261A
|
12261A
90467-23002 Clip Or Clamp(For Ventilation Hose)[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS NO.2 |
90467-23002 |
US $1.44 |
||
|
12262
|
12262
12262-0T030
Hose, Ventilation, No.2
[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS (L) |
12262-0T030 |
— | ||
|
12262
|
12262
12262-37030 Hose, Ventilation, No.2[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS (J) |
12262-37030 |
US $15.20 |
||
|
12262A
|
12262A
90467-21004 Clip Or Clamp(For Ventilation Hose)[09.2010 - 03.2012] 2ZRFE..ZRE152..GLS,GLXS |
90467-21004 |
from US $1.33 |
||
|
90105C0082
|
90105C0082
90105-C0082
New Genuine Part
|
90105-C0082 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.68 |
||
| replacement | |||||
|
9012606029
|
9012606029
90126-A0014 Bolt, Stud(For Oil Strainer) |
90126-A0014 |
US $1.77 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
