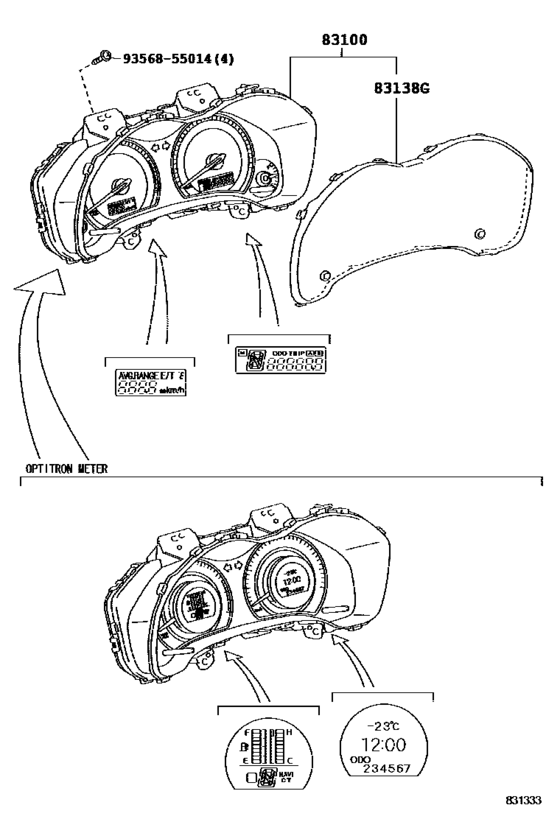

Meter ([03.2007 - ] (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- TERRA
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 08.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-0W451
Meter Assy, Combination
[03.2007 - 11.2007] ZRE152..4FC..TERRA |
83800-0W451 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-0W452
Meter Assy, Combination
[03.2007 - 11.2007] ZRE152..4FC..TERRA |
83800-0W452 |
— | ||
|
83100
|
83100
83800-0W452
Meter Assy, Combination
[12.2007 - 12.2008] ZRE152..4FC..TERRA |
83800-0W452 |
— | ||
|
83100
|
83100
83800-0W472
Meter Assy, Combination
[03.2007 - 11.2007] ZRE152..4FC..SOL; ZRE152..4FC..TERRA SPEEDOMETER-KM/H,W(METER ASSY:OPTITRON) |
83800-0W472 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-0W473
Meter Assy, Combination
[03.2007 - 11.2007] ZRE152..4FC..SOL; ZRE152..4FC..TERRA SPEEDOMETER-KM/H,W(METER ASSY:OPTITRON) |
83800-0W473 |
— | ||
|
83100
|
83100
83800-0W473
Meter Assy, Combination
[12.2007 - 12.2008] ZRE152..4FC..SOL; ZRE152..4FC..TERRA SPEEDOMETER-KM/H,W(METER ASSY:OPTITRON) |
83800-0W473 |
— | ||
|
83100
|
83100
83800-0W630
Meter Assy, Combination
[12.2008 - 10.2009] ZRE152..4FC..TERRA |
83800-0W630 |
— | ||
|
83100
|
83100
83800-0W650
Meter Assy, Combination
[12.2008 - 10.2009] ZRE152..4FC..SOL; ZRE152..4FC..TERRA SPEEDOMETER-KM/H,W(METER ASSY:OPTITRON) |
83800-0W650 |
— | ||
|
83100
|
83100
83800-0W710
Meter Assy, Combination
[10.2009 -] ZRE152..4FC..TERRA |
83800-0W710 |
— | ||
|
83100
|
83100
83800-0W730
Meter Assy, Combination
[10.2009 -] ZRE152..4FC..SOL; ZRE152..4FC..TERRA SPEEDOMETER-KM/H,W(METER ASSY:OPTITRON) |
83800-0W730 |
— | ||
|
83138G
|
83138G
83852-02L21
Glass, Combination Meter
[03.2007 - 12.2008] ZRE152..TERRA |
83852-02L21 |
— | ||
|
83138G
|
83138G
83852-02L51
Glass, Combination Meter
[03.2007 - 12.2008] ZRE152..SOL; ZRE152..TERRA SPEEDOMETER-KM/H,W(METER ASSY:OPTITRON) |
83852-02L51 |
— | ||
|
83138G
|
83138G
83852-02N90
Glass, Combination Meter
[12.2008 - 10.2009] ZRE152..TERRA |
83852-02N90 |
— | ||
|
83138G
|
83138G
83852-02P50
Glass, Combination Meter
[12.2008 - 10.2009] ZRE152..SOL; ZRE152..TERRA SPEEDOMETER-KM/H,W(METER ASSY:OPTITRON) |
83852-02P50 |
— | ||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
