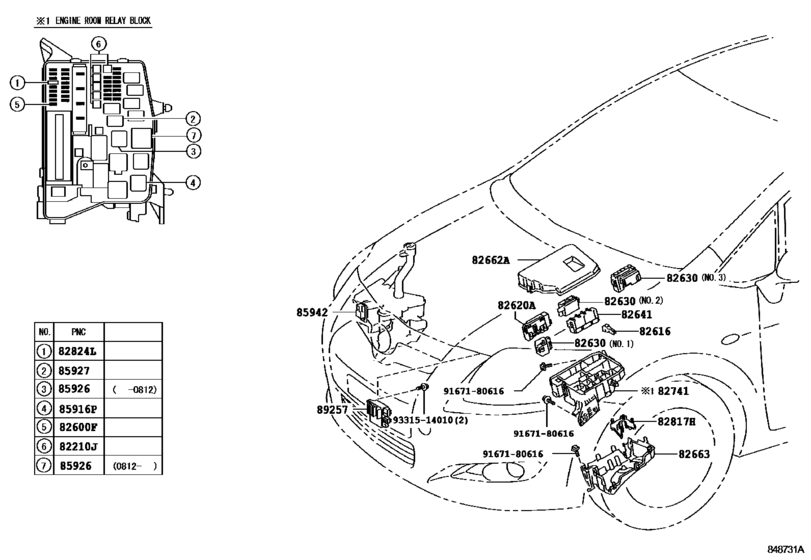

Switch & Relay & Computer ([03.2007 - ] ENGINE ROOM (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- TERRA
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 08.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08294 Fusible Link[03.2007 - 12.2008] ZRE152 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[03.2007 - 12.2008] ZRE152 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[03.2007 - 12.2008] ZRE152 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[03.2007 - 12.2008] ZRE152 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[03.2007 - 12.2008] ZRE152 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[03.2007 - 12.2008] ZRE152 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[03.2007 - 12.2008] ZRE152 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[03.2007 - 12.2008] ZRE152 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[03.2007 - 12.2008] ZRE152 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[03.2007 - 12.2008] ZRE152 |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-12280 Block Assy, Fusible Link[03.2007 - 12.2008] ZRE152 |
82620-12280 |
US $30.55 |
||
|
82630
|
82630
82631-12010 Holder Assy, Fuse[03.2007 - 12.2008] ZRE152 NO.1 |
82631-12010 |
US $19.66 |
||
|
82630
|
82630
82631-12020 Holder Assy, Fuse[03.2007 - 12.2008] ZRE152 NO.2 |
82631-12020 |
US $24.61 |
||
|
82630
|
82630
82631-12030 Holder Assy, Fuse[03.2007 - 12.2008] ZRE152 NO.3 |
82631-12030 |
US $31.89 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[03.2007 - 12.2008] ZRE152 |
82641-47020 |
from US $79.92 |
||
|
82662A
|
82662A
82662-12270
Cover, Relay Block, Upper, No.1
[03.2007 - 12.2008] ZRE152 |
82662-12270 |
— | ||
|
82662A
|
82662A
82662-12570 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [12.2008 - 10.2009] ZRE152 |
82662-12570 |
US $28.83 |
||
|
82663
|
82663
82663-12060 Cover, Relay Block, Lower[03.2007 - 12.2008] ZRE152 |
82663-12060 |
from US $32.47 |
||
|
82741
|
82741
82741-12070 Block, Engine Room Relay[03.2007 - 12.2008] ZRE152 |
82741-12070 |
from US $72.36 |
||
|
82817H
|
82817H
82817-12A80 Protector, Wiring Harness[03.2007 - 12.2008] ZRE152 |
82817-12A80 |
US $10.34 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[03.2007 - 12.2008] ZRE152 |
82824-20140 |
US $3.32 |
||
|
85916P
|
85916P
90987-02025 Relay[03.2007 - 12.2008] ZRE152 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[03.2011 -] ZRE152 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[03.2007 - 12.2008] ZRE152 |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02027 Relay[03.2007 - 12.2008] ZRE152 |
90987-02027 |
from US $44.54 |
||
|
89257
|
89257
89257-12010
Computer, Cooling Fan
[03.2007 - 12.2008] ZRE152 |
89257-12010 |
— | ||
| replacement | |||||
|
89257
|
89257
89257-K0010 COMPUTER COOLING[03.2007 - 12.2008] ZRE152 |
89257-K0010 |
US $195.84 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
