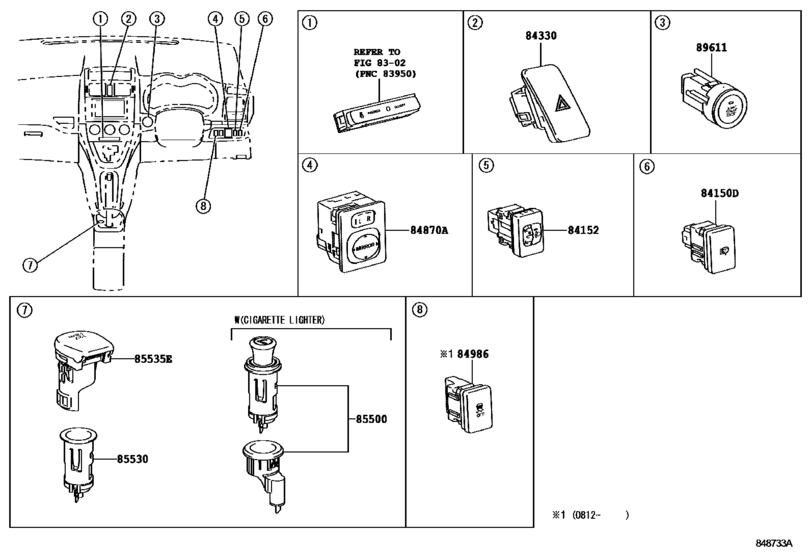

Switch & Relay & Computer ([03.2007 - ] INSTRUMENT PANEL (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- TERRA
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 08.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-12070 Switch, Headlamp Leveling[03.2007 - 12.2008] ZRE152; ZRE152..SOL HEADLAMP-DISCHARGE |
84152-12070 |
from US $50.38 |
||
| replacement | |||||
|
84152
|
84152
84152-12071 Switch, Headlamp Leveling[03.2007 - 12.2008] ZRE152; ZRE152..SOL HEADLAMP-DISCHARGE |
84152-12071 |
US $58.88 |
||
|
84330
|
84330
84332-12510 Switch Assy, Hazard Warning Signal[03.2007 - 12.2008] ZRE152 |
84332-12510 |
US $47.76 |
||
|
84870A
|
84870A
84870-12190 Switch Assy, Outer Mirror[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED) |
84870-12190 |
US $78.62 |
||
|
84870A
|
84870A
84870-12200
Switch Assy, Outer Mirror
[10.2009 - 12.2010] ZRE152..TERRA |
84870-12200 |
— | ||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[03.2007 - 12.2008] ZRE152 |
84870-34010 |
from US $57.15 |
||
|
84986
|
84986
84986-12010 Switch, Vehicle Stability Control[12.2008 - 10.2009] ZRE152 VSC-WITH(W/CUT OFF SWITCH) |
84986-12010 |
US $39.75 |
||
| replacement | |||||
|
84986
|
84986
84986-12011 Switch, Vehicle Stability Control[12.2008 - 10.2009] ZRE152 VSC-WITH(W/CUT OFF SWITCH) |
84986-12011 |
US $39.75 |
||
|
85500
|
85500
85500-09060 Lighter Assy, Cigarette[03.2007 - 12.2008] ZRE152 |
85500-09060 |
US $57.48 |
||
|
85500
|
85500
85500-09070 Lighter Assy, CigaretteCIGARETTE [10.2009 -] ZRE152; ZRE152 ASH TRAY-WITHOUT |
85500-09070 |
US $62.20 |
||
|
85530
|
85530
85530-0D020 Socket Assy, Power Outlet, No.1[03.2007 - 12.2008] ZRE152 ASH TRAY-WITHOUT |
85530-0D020 |
US $30.40 |
||
|
85535E
|
85535E
85535-02040 Cover, Power Outlet Socket, No.1[03.2007 - 12.2008] ZRE152 ASH TRAY-WITHOUT |
85535-02040 |
US $10.56 |
||
