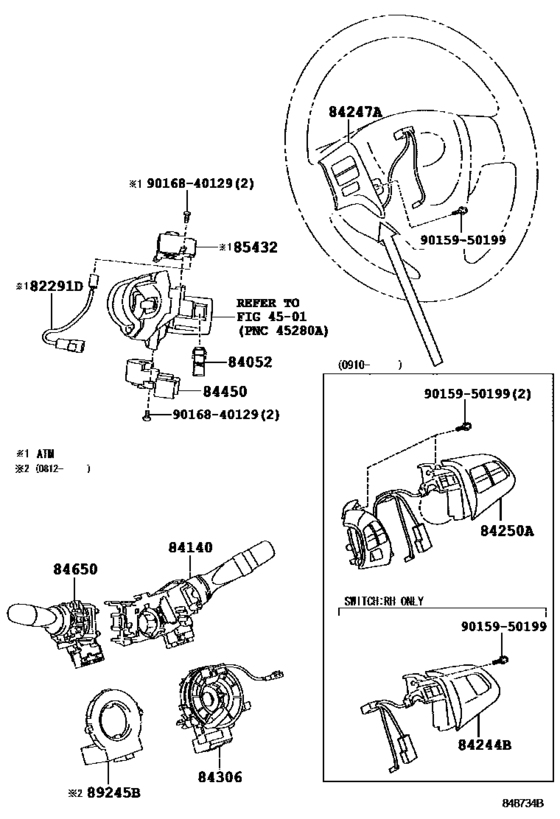

Switch & Relay & Computer ([03.2007 - ] STEERING (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- TERRA
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 08.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82291D
|
82291D
82291-42010 Wire, To Solenoid[03.2007 - 12.2008] ZRE152..4FC; ZRE152..4FC..SOL STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
82291-42010 |
US $2.45 |
||
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[03.2007 - 12.2008] ZRE152; ZRE152..SOL STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-12590 Switch Assy, Headlamp Dimmer[03.2007 - 12.2008] ZRE152 |
84140-12590 |
from US $66.63 |
||
|
84140
|
84140
84140-42030 Switch Assy, Headlamp Dimmer[01.2011 -] ZRE152..TERRA |
84140-42030 |
from US $74.10 |
||
|
84140
|
84140
84140-42040 Switch Assy, Headlamp Dimmer[01.2011 -] ZRE152..TERRA FRONT FOG LAMP-MOP |
84140-42040 |
US $112.48 |
||
|
84140
|
84140
84140-52100 Switch Assy, Headlamp Dimmer[03.2007 - 12.2008] ZRE152 FRONT FOG LAMP-MOP |
84140-52100 |
US $103.60 |
||
|
84244B
|
84244B
84244-12030 Switch, Steering Pad, RhSTEERING PAD, RH [10.2009 - 08.2012] ZRE152..TERRA |
84244-12030 |
US $147.06 |
||
|
84247A
|
84247A
84247-12040 Switch, Steering Pad, LhSTEERING PAD, LH [03.2007 - 12.2008] ZRE152..SOL; ZRE152..TERRA STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH) |
84247-12040 |
US $122.30 |
||
|
84250A
|
84250A
84250-12220 Switch Assy, Steering PadSTEERING PAD [10.2009 - 08.2012] ZRE152..SOL; ZRE152..TERRA STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH) |
84250-12220 |
US $157.25 |
||
|
84306
|
84306
84306-12100 Cable Sub-Assy, Spiral[03.2007 - 12.2008] ZRE152..TERRA |
84306-12100 |
from US $174.45 |
||
|
84306
|
84306
84306-12110 Cable Sub-Assy, Spiral[03.2007 - 12.2008] ZRE152..SOL; ZRE152..TERRA STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH) |
84306-12110 |
from US $168.44 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[03.2007 - 12.2008] ZRE152; ZRE152..SOL STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-48100
Switch Assy, Windshield Wiper
[03.2007 - 12.2008] ZRE152 |
84652-48100 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-48101 Switch Assy, Windshield Wiper[03.2007 - 12.2008] ZRE152 |
84652-48101 |
US $108.04 |
||
|
85432
|
85432
85432-71010 Solenoid, Key Inter Lock[03.2007 - 12.2008] ZRE152..4FC; ZRE152..4FC..SOL STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
85432-71010 |
US $40.33 |
||
|
89245B
|
89245B
89245-12020
Sensor, Steering
[12.2008 - 10.2009] ZRE152 VSC-WITH(W/CUT OFF SWITCH) |
89245-12020 |
— | ||
| replacement | |||||
|
89245B
|
89245B
89245-37010 Sensor, Steering[12.2008 - 10.2009] ZRE152 VSC-WITH(W/CUT OFF SWITCH) |
89245-37010 |
US $194.40 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.80 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
