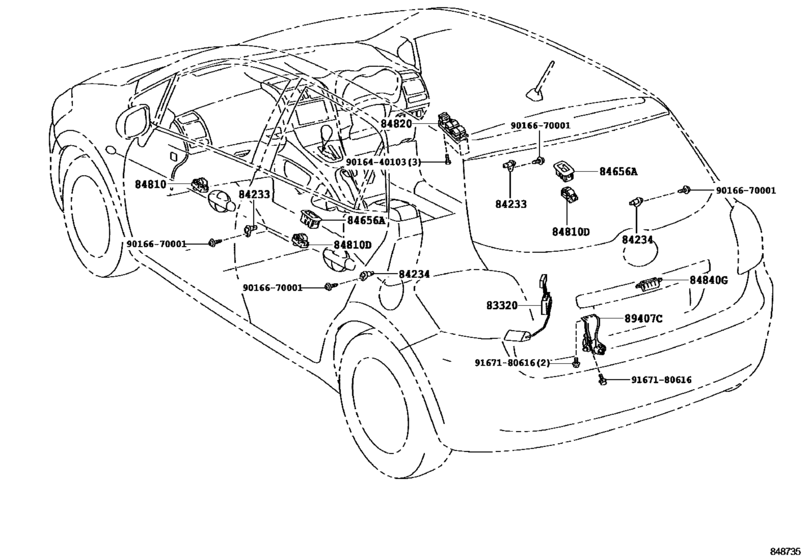

Switch & Relay & Computer ([03.2007 - ] DOOR,ROOF,FLOOR & BACK DOOR (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- TERRA
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 08.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-12730 Gage Assy, Fuel SenderFUEL SENDER [03.2007 - 12.2008] ZRE152 |
83320-12730 |
US $51.03 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[03.2007 - 12.2008] ZRE152 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[03.2007 - 12.2008] ZRE152 |
84231-60070 |
from US $10.56 |
||
|
84656A
|
84656A
84656-12170-B0 Bezel, Switch[03.2007 - 12.2008] ZRE152..SOL DK.GRAY,TRIM1#; ZRE152..TERRA POWER WINDOW-WITH(FRONT & REAR),DK.GRAY,TRIM1# |
84656-12170-B0 |
US $13.54 |
||
|
84810
|
84810
84810-52030 Switch Assy, Power Window Regulator[03.2007 - 12.2008] ZRE152 |
84810-52030 |
from US $37.54 |
||
|
84810D
|
84810D
84810-52030 Switch Assy, Power Window Regulator[03.2007 - 12.2008] ZRE152..SOL; ZRE152..TERRA POWER WINDOW-WITH(FRONT & REAR) |
84810-52030 |
from US $37.54 |
||
|
84820
|
84820
84820-12500
Master Switch Assy, Power Window Regulator
[03.2007 - 12.2008] ZRE152..TERRA |
84820-12500 |
— | ||
|
84820
|
84820
84820-12530 Master Switch Assy, Power Window Regulator[03.2007 - 12.2008] ZRE152..SOL; ZRE152..TERRA POWER WINDOW-WITH(FRONT & REAR) |
84820-12530 |
US $259.20 |
||
|
84840G
|
84840G
84840-28030 Switch Assy, Luggage Compartment Door Opening[03.2007 - 12.2008] ZRE152 |
84840-28030 |
from US $38.91 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
