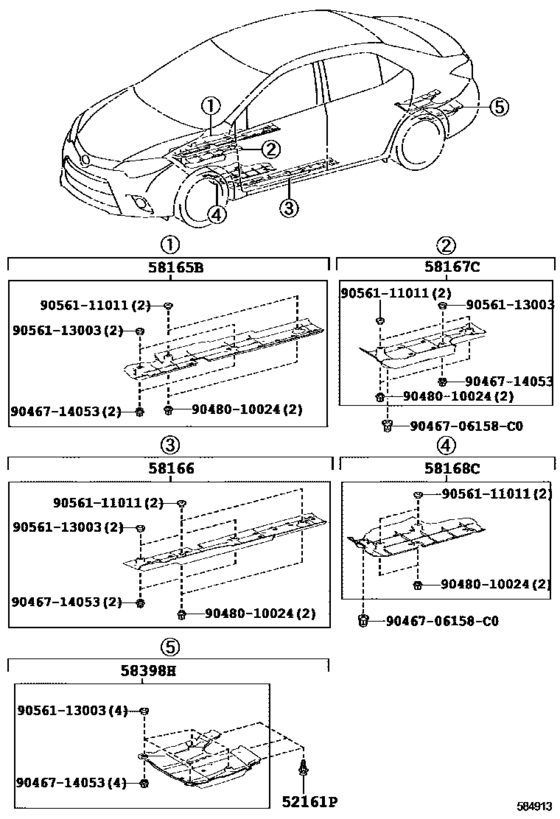

Floor Pan & Lower Back Panel ([08.2013 - ] FLOOR UNDER COVER(FRONT,REAR) (1308- )ECO,ECOSW,S) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- U.S.A.
- Frame
- ZRE172
- grade
- ECOSW
- body
- SED
- ENGINE
- 2ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.2013
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161P
|
52161P
52161-02020 Clip[08.2013 - 08.2016] ZRE172 |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161P
|
52161P
52161-16010 Clip[08.2013 - 08.2016] ZRE172 |
52161-16010 |
from US $1.68 |
||
|
58165B
|
58165B
58165-02070
Cover, Front Floor, Rh
[08.2013 - 08.2016] ZRE172..HTWVM; ZRE172..S TIRE & DISC WHEEL-P215/45R17 ALUMI OS39 |
58165-02070 |
— | ||
|
58166
|
58166
58166-02050
Cover, Front Floor, Lh
[08.2013 - 08.2016] ZRE172..HTWVM; ZRE172..S TIRE & DISC WHEEL-P215/45R17 ALUMI OS39 |
58166-02050 |
— | ||
|
58167C
|
58167C
58167-02100
Cover, Front Floor, Center Rh
[08.2013 - 08.2016] ZRE172..HTWVM; ZRE172..S TIRE & DISC WHEEL-P215/45R17 ALUMI OS39 |
58167-02100 |
— | ||
|
58168C
|
58168C
58168-02090
Cover, Front Floor, Center Lh
[08.2013 - 08.2016] ZRE172..HTWVM; ZRE172..S TIRE & DISC WHEEL-P215/45R17 ALUMI OS39 |
58168-02090 |
— | ||
|
58398H
|
58398H
58398-02070
Cover, Floor Under, No.1
[08.2013 - 08.2016] ZRE172 |
58398-02070 |
— | ||
|
9046706158C0
|
9046706158C0
90467-06158-C0 Clip, Cowl Top Ventilator Louver |
90467-06158-C0 |
from US $1.31 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.19 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.60 |
||
|
9056111011
|
9056111011
90561-11011 Clip, No.1(For Floor Under Cover) |
90561-11011 |
from US $1.12 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.12 |
||
