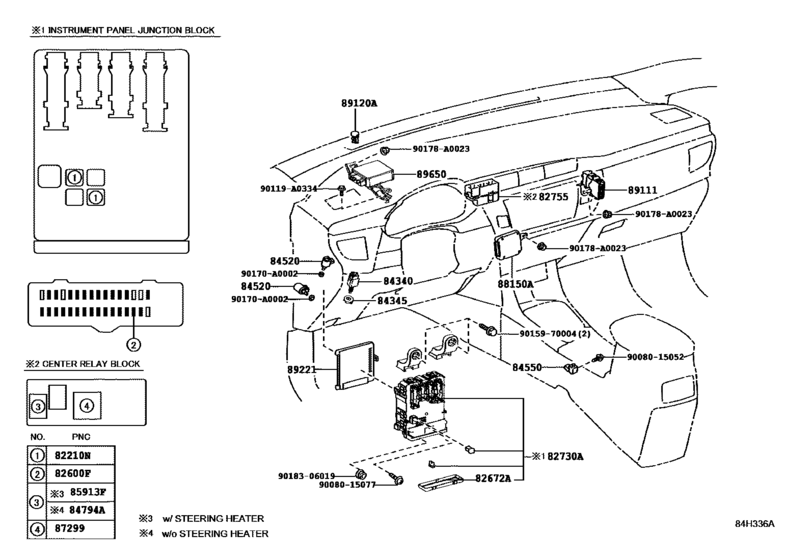

Switch & Relay & Computer ([08.2016 - ] INSTRUMENT PANEL (1608- )) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- U.S.A.
- Frame
- ZRE172
- grade
- ECOSW
- body
- SED
- ENGINE
- 2ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.2013
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[08.2013 - 08.2016] ZRE172 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[08.2013 - 08.2016] ZRE172 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2013 - 08.2016] ZRE172 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2013 - 08.2016] ZRE172 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2013 - 08.2016] ZRE172 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2013 - 08.2016] ZRE172 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2013 - 08.2016] ZRE172 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82672A
|
82672A
82672-02090
Cover, Junction Block
[08.2013 - 08.2016] ZRE172 |
82672-02090 |
— | ||
|
82672A
|
82672A
82672-02091
Cover, Junction Block
[08.2016 -] ZRE172 |
82672-02091 |
— | ||
|
82730A
|
82730A
82730-02F40 Block Assy, Driver Side Junction[08.2013 - 02.2016] ZRE172..USA;ZRE172..STD..CND |
82730-02F40 |
US $519.79 |
||
| replacement | |||||
|
82730A
|
82730A
82730-02F42
Block Assy, Driver Side Junction
[08.2013 - 02.2016] ZRE172..USA;ZRE172..STD..CND |
82730-02F42 |
— | ||
|
82730A
|
82730A
82730-02F41
Block Assy, Driver Side Junction
[08.2016 -] ZRE172..USA;ZRE172..STD..CND |
82730-02F41 |
— | ||
|
82730A
|
82730A
82730-02F42
Block Assy, Driver Side Junction
[03.2016 - 08.2016] ZRE172..USA;ZRE172..STD..CND |
82730-02F42 |
— | ||
|
82730A
|
82730A
82730-02G60
Block Assy, Driver Side Junction
[08.2013 - 02.2016] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
82730-02G60 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-02G62
Block Assy, Driver Side Junction
[08.2013 - 02.2016] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
82730-02G62 |
— | ||
|
82730A
|
82730A
82730-02G61
Block Assy, Driver Side Junction
[08.2016 -] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..LE..USA PLUS2 PACKAGE&SEAT HEATER-WITH; ZRE172..LE..USA PLUS3 PACKAGE&SEAT HEATER-WITH; ZRE172..(ECO,ECOSW,S)..USA SEAT HEATER-WITH |
82730-02G61 |
— | ||
|
82730A
|
82730A
82730-02G62
Block Assy, Driver Side Junction
[03.2016 - 08.2016] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
82730-02G62 |
— | ||
|
82755
|
82755
82755-02040
Block, Center Relay
[08.2013 - 08.2016] ZRE172 |
82755-02040 |
— | ||
|
84340
|
84340
84340-09070
Switch Assy, Stop Lamp
[08.2013 - 08.2016] ZRE172 |
84340-09070 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-09310
Switch Assy, Stop Lamp
[08.2013 - 08.2016] ZRE172 |
84340-09310 |
— | ||
|
84340
|
84340
84340-09310
Switch Assy, Stop Lamp
[11.2016 -] ZRE172 |
84340-09310 |
— | ||
|
84345
|
84345
84345-08010
Adjuster, Stop Lamp Switch Mounting
[08.2013 - 08.2016] ZRE172 |
84345-08010 |
— | ||
|
84550
|
84550
84550-02020
Switch Assy, Parking Brake
[08.2013 - 08.2016] ZRE172 |
84550-02020 |
— | ||
|
88150A
|
88150A
88150-02010
Computer Assy, Driving Support
[08.2016 - 08.2017] ZRE172 |
88150-02010 |
— | ||
|
89111
|
89111
89100-02040
Computer, Network Gateway
[08.2016 -] ZRE172 |
89100-02040 |
— | ||
|
89120A
|
89120A
89121-12010 Sensor, Automatic Light Control[08.2013 - 08.2016] ZRE172..ECO,ECOSW,LE,S LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTEM) |
89121-12010 |
from US $130.24 |
||
|
89221
|
89221
89220-02200
Computer, Multiplex Network Body
[08.2013 - 08.2016] ZRE172..CVT..USA LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTEM) |
89220-02200 |
— | ||
|
89221
|
89221
89220-02210
Computer, Multiplex Network Body
[08.2013 - 08.2016] ZRE172..(ATM,CVT)..USA |
89220-02210 |
— | ||
|
89221
|
89221
89220-02D60
Computer, Multiplex Network Body
[08.2016 -] ZRE172..CVT..(ECOSW,S)..USA; ZRE172..LE..USA PLUS1 PACKAGE; ZRE172..LE..USA PLUS2 PACKAGE; ZRE172..LE..USA PLUS3 PACKAGE |
89220-02D60 |
— | ||
|
89221
|
89221
89220-02D80
Computer, Multiplex Network Body
[08.2016 -] ZRE172..ECOSW..USA DEST.PACKAGE (EXC/ERP.)-PUERTO RICO SPEC; ZRE172..CVT..(ECOSW,S)..USA DEST.PACKAGE (EXC/ERP.)-GUAM,SAIPAN SPEC; ZRE172..LE..USA DEST.PACKAGE (EXC/ERP.)-GUAM,SAIPAN SPEC&PLUS1 PACKAGE; ZRE172..LE..USA DEST.PACKAGE (EXC/ERP.)- |
89220-02D80 |
— | ||
|
89221
|
89221
89220-02E00
Computer, Multiplex Network Body
[08.2016 -] ZRE172..CVT..(ECOSW,S)..USA DEST.PACKAGE (EXC/ERP.)-HAWAII SPEC; ZRE172..LE..USA DEST.PACKAGE (EXC/ERP.)-HAWAII SPEC&PLUS1 PACKAGE; ZRE172..LE..USA DEST.PACKAGE (EXC/ERP.)-HAWAII SPEC&PLUS2 PACKAGE; ZRE172..LE..USA DEST.PACKAGE (EXC/ERP.)-HAWA |
89220-02E00 |
— | ||
|
89650
|
89650
89650-02780
Computer Assy, Power Steering
[08.2013 - 04.2014] ZRE172 |
89650-02780 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-02A60
Computer Assy, Power Steering
[08.2013 - 04.2014] ZRE172 |
89650-02A60 |
— | ||
|
89650
|
89650
89650-02A60
Computer Assy, Power Steering
[04.2014 - 08.2015] ZRE172; ZRE172..S SPORT PACKAGE; ZRE172..S SPORT PLUS PACKAGE; ZRE172..CVT..S..USA TIRE & DISC WHEEL-P215/45R17 ALUMI OS39; ZRE172..S..CND CANADA 50TH(RED); ZRE172..CVT..S..USA TIRE & DISC WHEEL-P215/45R17 AL OS39 ILA; ZRE172..CVT..S.. |
89650-02A60 |
— | ||
|
89650
|
89650
89650-02B20
Computer Assy, Power Steering
[08.2015 - 08.2016] ZRE172 |
89650-02B20 |
— | ||
|
89650
|
89650
89650-02B50
Computer Assy, Power Steering
[08.2016 -] ZRE172 |
89650-02B50 |
— | ||
|
90119A0334
|
90119A0334
90119-A0334
New Genuine Part
|
90119-A0334 |
— | ||
|
90170A0002
|
90170A0002
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
90178A0023
|
90178A0023
90178-A0023
Nut, Wire Adjusting, No.2
|
90178-A0023 |
— | ||
|
9008015052
|
9008015052
90080-15052 New Genuine Part |
90080-15052 |
US $0.73 |
||
|
9008015077
|
9008015077
90080-15077
New Genuine Part
|
90080-15077 |
— | ||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.82 |
||
