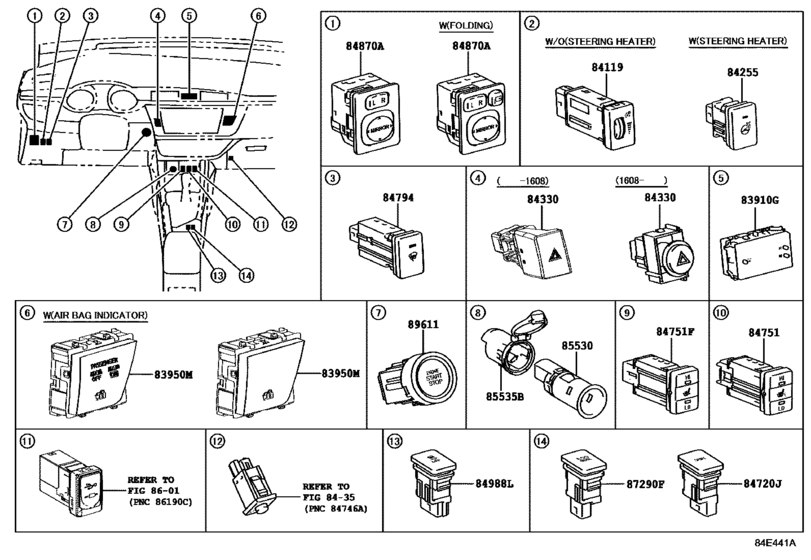

Switch & Relay & Computer ([08.2013 - ] INSTRUMENT PANEL (1308- )) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- U.S.A.
- Frame
- ZRE172
- grade
- ECOSW
- body
- SED
- ENGINE
- 2ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.2013
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-02150
Clock Assy
[08.2013 - 08.2016] ZRE172 |
83910-02150 |
— | ||
|
83910G
|
83910G
83910-12650
Clock Assy
[08.2016 -] ZRE172 |
83910-12650 |
— | ||
|
83950M
|
83950M
83950-02210
Lamp Assy, Telltale
[08.2013 - 08.2016] ZRE172 |
83950-02210 |
— | ||
|
83950M
|
83950M
83950-02240
Lamp Assy, Telltale
[08.2016 - 08.2017] ZRE172 |
83950-02240 |
— | ||
|
84119
|
84119
84119-0C040
Rheostat, Light Control
[08.2013 - 02.2015] ZRE172 |
84119-0C040 |
— | ||
| replacement | |||||
|
84119
|
84119
84119-0C041
Rheostat, Light Control
[08.2013 - 02.2015] ZRE172 |
84119-0C041 |
— | ||
|
84119
|
84119
84119-0C041
Rheostat, Light Control
[03.2015 - 08.2016] ZRE172 |
84119-0C041 |
— | ||
|
84330
|
84330
84332-02200
Switch Assy, Hazard Warning Signal
[08.2013 - 02.2015] ZRE172 |
84332-02200 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-02201
Switch Assy, Hazard Warning Signal
[08.2013 - 02.2015] ZRE172 |
84332-02201 |
— | ||
|
84330
|
84330
84332-02201
Switch Assy, Hazard Warning Signal
[03.2015 - 08.2016] ZRE172 |
84332-02201 |
— | ||
|
84330
|
84330
84332-02320
Switch Assy, Hazard Warning Signal
[08.2016 -] ZRE172 |
84332-02320 |
— | ||
|
84751
|
84751
84751-0R020
Switch, Seat Heater
[08.2013 - 02.2015] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
84751-0R020 |
— | ||
| replacement | |||||
|
84751
|
84751
84751-0R022
Switch, Seat Heater
[08.2013 - 02.2015] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
84751-0R022 |
— | ||
|
84751
|
84751
84751-0R022
Switch, Seat Heater
[03.2015 - 08.2016] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
84751-0R022 |
— | ||
|
84751F
|
84751F
84751-0R030
Switch, Seat Heater
[08.2013 - 02.2015] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
84751-0R030 |
— | ||
| replacement | |||||
|
84751F
|
84751F
84751-0R032
Switch, Seat Heater
[08.2013 - 02.2015] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
84751-0R032 |
— | ||
|
84751F
|
84751F
84751-0R032
Switch, Seat Heater
[03.2015 - 08.2016] ZRE172..(ECO,ECOSW,LE,S)..CND; ZRE172..(ECO,ECOSW,LE,S)..USA SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)) |
84751-0R032 |
— | ||
|
84870A
|
84870A
84870-02150
Switch Assy, Outer Mirror
[08.2013 - 08.2016] ZRE172 |
84870-02150 |
— | ||
|
84988L
|
84988L
84988-0R070
Switch, Vsc Off
[08.2013 - 02.2015] ZRE172 |
84988-0R070 |
— | ||
| replacement | |||||
|
84988L
|
84988L
84988-0R071 Switch, Vsc Off[08.2013 - 02.2015] ZRE172 |
84988-0R071 |
US $41.48 |
||
|
84988L
|
84988L
84988-0R071 Switch, Vsc Off[03.2015 - 08.2016] ZRE172 |
84988-0R071 |
US $41.48 |
||
|
85530
|
85530
85530-06030
Socket Assy, Power Outlet, No.1
[08.2013 - 08.2016] ZRE172 |
85530-06030 |
— | ||
|
85535B
|
85535B
85535-0E060-C0
Cover, Power Outlet Socket, No.1
[08.2013 - 08.2016] ZRE172..STD BLACK,TRIM1#; ZRE172..S BLACK,TRIM2#,4#,8#; ZRE172..HTWVM BLACK; ZRE172..LE BLACK,TRIM0#,1#,2#,4# |
85535-0E060-C0 |
— | ||
|
87290F
|
87290F
87290-0E010
Switch Assy, Heater
[08.2013 - 02.2015] ZRE172..ECOSW |
87290-0E010 |
— | ||
| replacement | |||||
|
87290F
|
87290F
87290-0E011
Switch Assy, Heater
[08.2013 - 02.2015] ZRE172..ECOSW |
87290-0E011 |
— | ||
|
87290F
|
87290F
87290-0E011
Switch Assy, Heater
[03.2015 - 08.2016] ZRE172..ECOSW |
87290-0E011 |
— | ||
|
89611
|
89611
89611-0R020
Switch, Push Start
[08.2013 - 04.2015] ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
89611-0R020 |
— | ||
|
89611
|
89611
89611-0R021
Switch, Push Start
[05.2015 - 06.2016] ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
89611-0R021 |
— | ||
|
89611
|
89611
89611-0R022
Switch, Push Start
[07.2016 - 08.2016] ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
89611-0R022 |
— | ||
