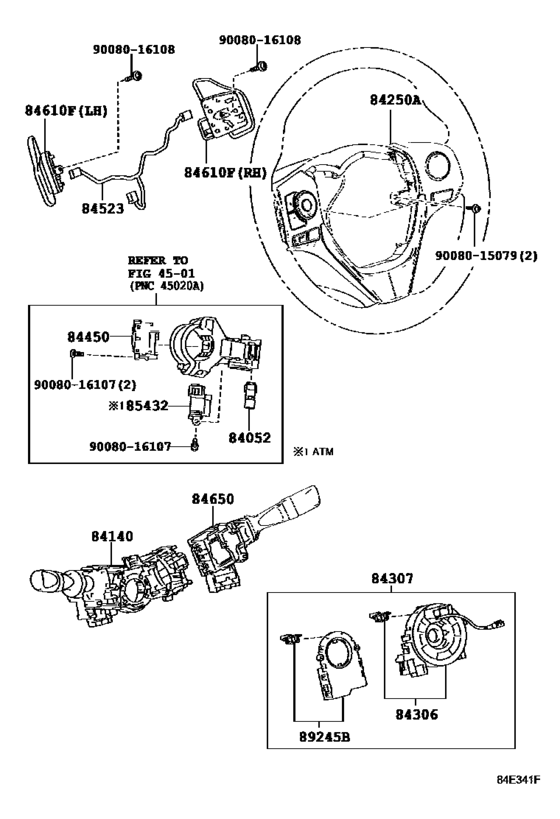

Switch & Relay & Computer ([08.2013 - ] STEERING (1308- )) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- U.S.A.
- Frame
- ZRE172
- grade
- ECOSW
- body
- SED
- ENGINE
- 2ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.2013
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[08.2013 - 08.2016] ZRE172; ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-02840
Switch Assy, Headlamp Dimmer
[08.2016 -] ZRE172..USA |
84140-02840 |
— | ||
|
84140
|
84140
84140-0R010
Switch Assy, Headlamp Dimmer
[08.2013 - 08.2016] ZRE172..LE..USA PLUS1 PACKAGE&LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTEM); ZRE172..LE..USA PLUS2 PACKAGE&LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTEM); ZRE172..(ECOSW,S)..USA LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTE |
84140-0R010 |
— | ||
|
84140
|
84140
84140-0R020
Switch Assy, Headlamp Dimmer
[08.2013 - 08.2016] ZRE172..(ECOSW,S)..USA; ZRE172..LE..USA PLUS1 PACKAGE; ZRE172..LE..USA PLUS2 PACKAGE |
84140-0R020 |
— | ||
|
84250A
|
84250A
84250-02380
Switch Assy, Steering Pad
[08.2013 - 08.2016] ZRE172..6F..S;ZRE172..ECO,ECOSW,LE; ZRE172..STD..CND AUDIO-*DA & 6SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
84250-02380 |
— | ||
|
84250A
|
84250A
84250-02510
Switch Assy, Steering Pad
[08.2016 -] ZRE172..S; ZRE172..(ECOSW,LE)..USA PLUS3 PACKAGE |
84250-02510 |
— | ||
|
84250A
|
84250A
84250-02A40
Switch Assy, Steering Pad
[08.2016 -] ZRE172..ECO,ECOSW,LE,STD |
84250-02A40 |
— | ||
|
84306
|
84306
84308-02030
Cable Sub-Assy, Spiral
[08.2013 - 08.2016] ZRE172 |
84308-02030 |
— | ||
|
84307
|
84307
84307-02220 Cable Sub-Assy, Spiral W/sensor[08.2013 - 08.2016] ZRE172 |
84307-02220 |
US $357.34 |
||
|
84450
|
84450
84450-0R010
Switch Assy, Ignition Or Starter
[08.2013 - 08.2016] ZRE172; ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
84450-0R010 |
— | ||
|
84650
|
84650
84652-06340 Switch Assy, Windshield Wiper[08.2013 - 08.2016] ZRE172..(ECO,ECOSW,LE,S)..USA |
84652-06340 |
US $99.16 |
||
|
85432
|
85432
85432-06030
Solenoid, Key Inter Lock
[08.2013 - 08.2016] ZRE172..ATM,CVT; ZRE172..CVT STARTING SYSTEM-PUSH(WITH/SMART) |
85432-06030 |
— | ||
|
89245B
|
89245B
89245-09045
Sensor, Steering
[08.2013 - 07.2014] ZRE172 |
89245-09045 |
— | ||
| replacement | |||||
|
89245B
|
89245B
8924B-0E020
Sensor, Steering
[08.2013 - 07.2014] ZRE172 |
8924B-0E020 |
— | ||
|
89245B
|
89245B
8924B-0E020
Sensor, Steering
[07.2014 - 08.2016] ZRE172 |
8924B-0E020 |
— | ||
|
9008015079
|
9008015079
90080-15079 SCREW WWASHER |
90080-15079 |
US $0.73 |
||
|
9008016107
|
9008016107
90080-16107
New Genuine Part
|
90080-16107 |
— | ||
|
9008016108
|
9008016108
90080-16108
Screw, Steering Wheel Pad Attaching
|
90080-16108 |
— | ||
