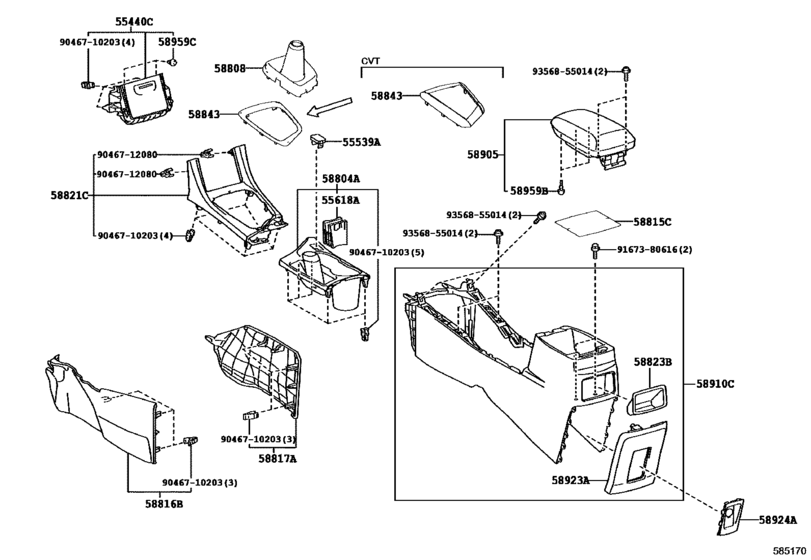

Console Box & Bracket ([03.2014 - ] (1403- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- ZRE173
- body
- SED
- ENGINE
- 3ZRFBE
- TRANSMISSION
- CVT
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 03.2014
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- LHD
- Fuel Induction
- HTWCF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55440C
|
55440C
55440-02730-C0
Box Assy, Instrument Panel
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
55440-02730-C0 |
— | ||
|
55539A
|
55539A
55539-52060-C0 Cover, Spare Switch Hole[03.2014 - 01.2017] ZRE17# BLACK; ZRE172..CVT..N;ZRE172..6F..N..LA AUDIO-AVN & 6SPEAKER,BLACK |
55539-52060-C0 |
from US $3.53 |
||
|
55539A
|
55539A
55539-52060-C4 Cover, Spare Switch Hole[03.2017 -] ZRE17#..BZ,LA BLACK |
55539-52060-C4 |
US $3.52 |
||
|
55618A
|
55618A
55618-02280-C0
Holder, Console Box Cup
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
55618-02280-C0 |
— | ||
|
58804A
|
58804A
58804-02420-C0
Panel Sub-Assy, Console, Upper
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
58804-02420-C0 |
— | ||
|
58804A
|
58804A
58804-02710-C0
Panel Sub-Assy, Console, Upper
[03.2017 -] ZRE173..N..BZ BLACK,TRIM1#,2#; ZRE173..E BLACK,TRIM0#; ZRE172..E BLACK,TRIM2# |
58804-02710-C0 |
— | ||
|
58815C
|
58815C
58815-02360
Carpet, Console Box
[03.2014 - 08.2017] ZRE17# |
58815-02360 |
— | ||
|
58816B
|
58816B
58816-02260-C0
Insert, Console Box
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
58816-02260-C0 |
— | ||
|
58817A
|
58817A
58817-02260-C0
Insert, Console Box, Front No.2
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
58817-02260-C0 |
— | ||
|
58821C
|
58821C
58821-02860-C0
Panel, Console, Upper
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
58821-02860-C0 |
— | ||
|
58823B
|
58823B
58823-02040-C0
Box, Console Compartment
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
58823-02040-C0 |
— | ||
|
58843
|
58843
58843-02610
Bezel, Shifting Hole
[03.2014 - 03.2017] ZRE17#..CVT..E |
58843-02610 |
— | ||
|
58843
|
58843
58843-02A70
Bezel, Shifting Hole
[03.2017 -] ZRE173..BZ;ZRE172..CVT..E |
58843-02A70 |
— | ||
|
58905
|
58905
58905-02C10-A2
Door Sub-Assy, Console Compartment
[03.2014 - 03.2017] ZRE17#..E IVORY,TRIM0# |
58905-02C10-A2 |
— | ||
|
58905
|
58905
58905-02C10-A4
Door Sub-Assy, Console Compartment
[03.2017 -] ZRE173..E FLAXEN,TRIM0# |
58905-02C10-A4 |
— | ||
|
58910C
|
58910C
58910-02580-C0
Box Assy, Console, Rear
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
58910-02580-C0 |
— | ||
|
58923A
|
58923A
58923-02250-C0
Panel, Console Rear End
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
58923-02250-C0 |
— | ||
|
58924A
|
58924A
58924-02120-C0
Panel, Console Rear End, No.2
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
58924-02120-C0 |
— | ||
|
58959B
|
58959B
90541-03078 Cushion(For Cup Holder)[03.2014 - 08.2017] ZRE17# |
90541-03078 |
from US $1.60 |
||
|
58959C
|
58959C
58959-60060 Cushion, Instrument Panel[03.2014 - 08.2017] ZRE17# |
58959-60060 |
from US $1.44 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
